Fuel Tank and Associated Parts: Notes

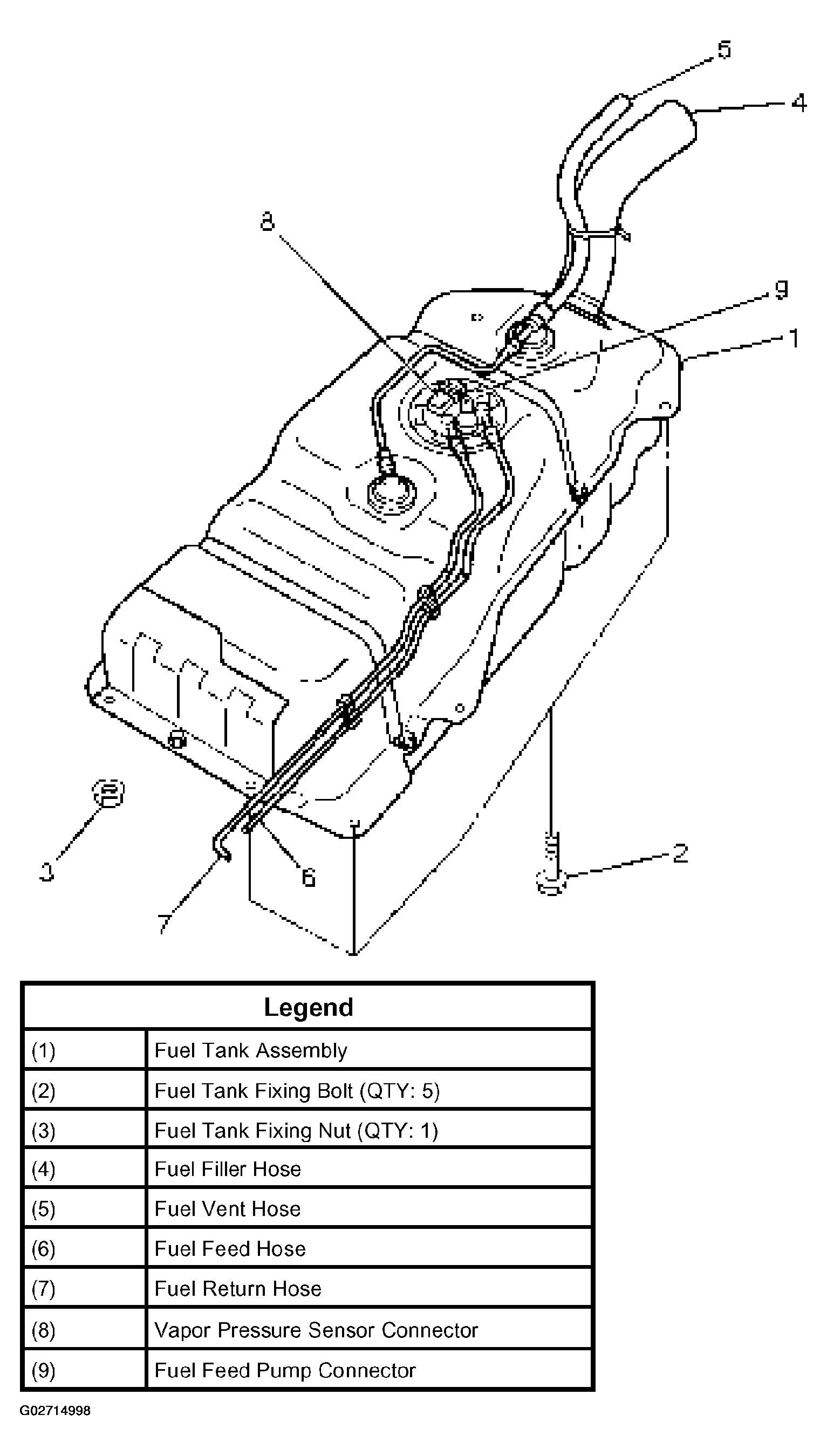

Fig 1: Identifying Fuel Tank
G02714998Courtesy of ISUZU MOTOR CO.
