Compressor Assembly And Associated Parts (6VE1): Removal
WARNING: This page is about a different car, the 2002 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable.
- Discharge and recover refrigerant
- Refer to REFRIGERANT RECOVERY .
- Disconnect magnetic clutch harness connector.

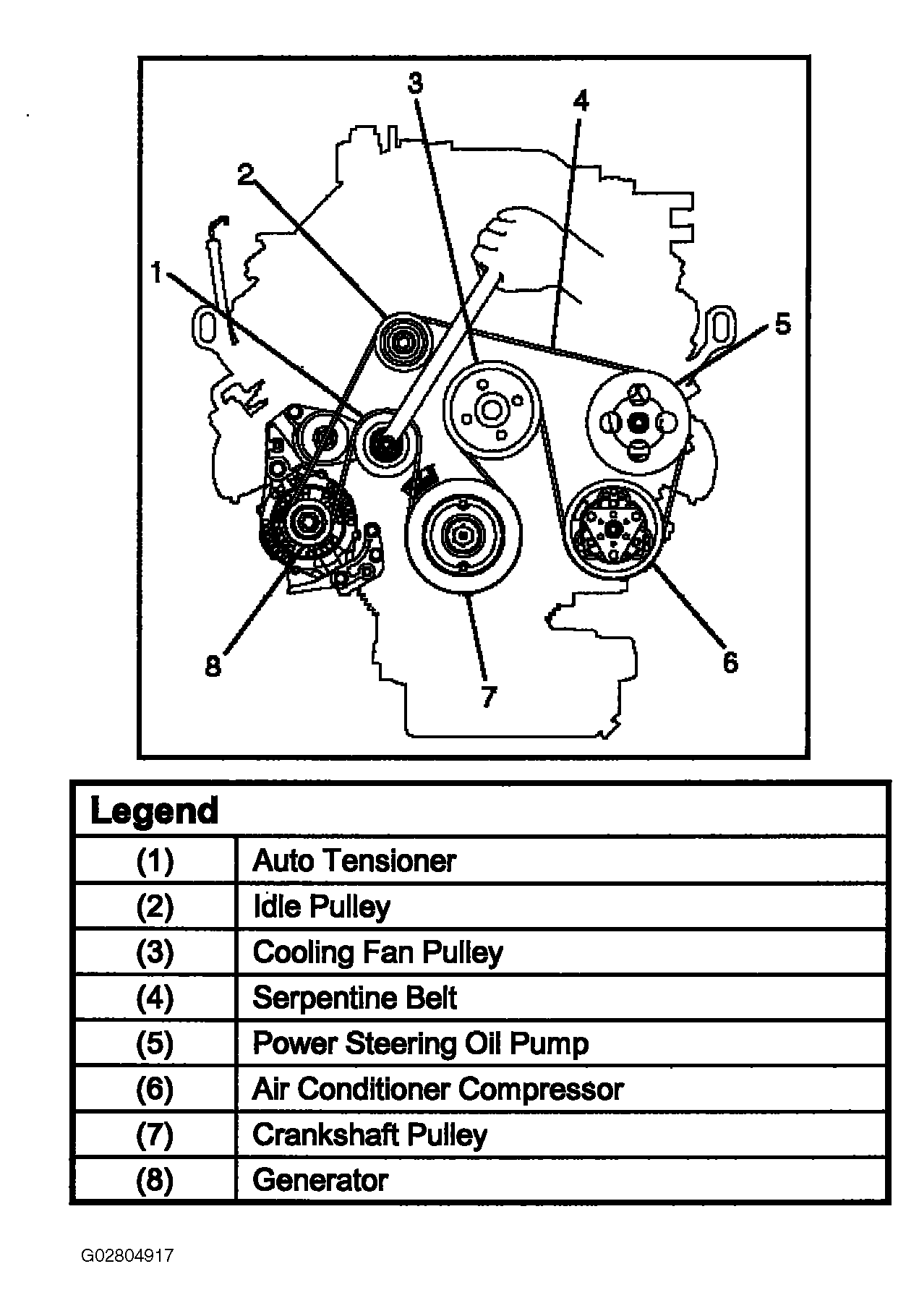

- Remove serpentine belt.
- Move serpentine belt tensioner to loose side using wrench then remove serpentine belt.
- Disconnect refrigerant line connector.
- When removing the line connector, the connecting part should immediately be plugged or capped to prevent foreign matter from being mixed into the line.
- Remove compressor.
