Mid Control Unit: Removal
WARNING: This page is about a different car, the 2002 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable.

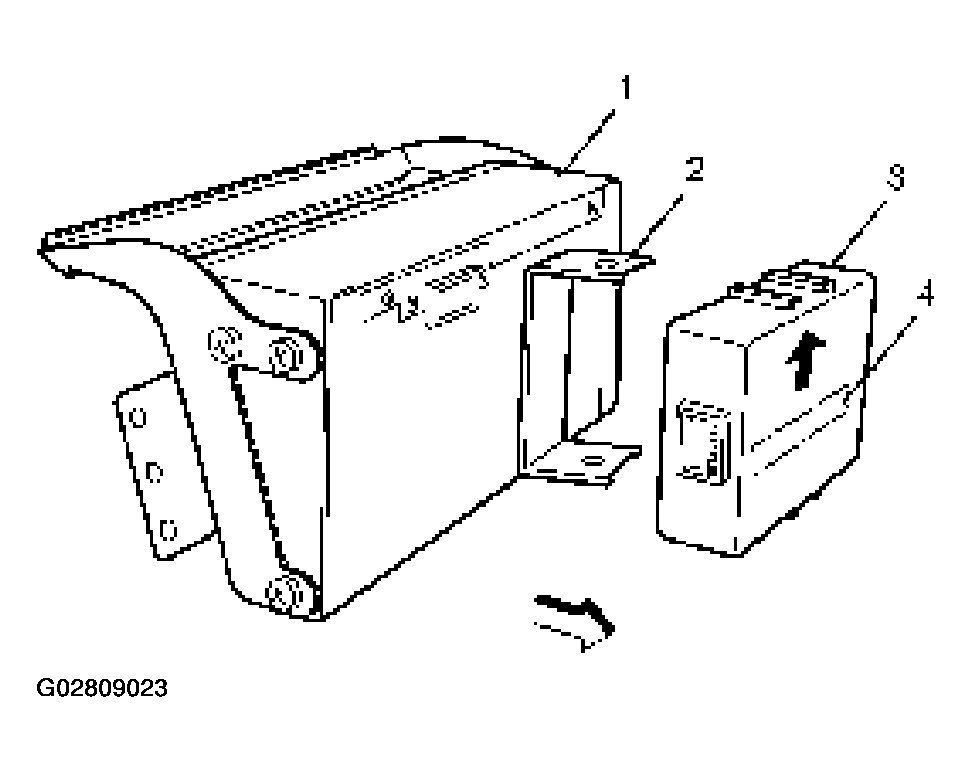

- Remove the MID control unit (3).
- Refer to DISPLAY (MID) (1).
- Remove the control unit (3) from the bracket (2).
CAUTION:
When the battery is disconnected, the MID control unit directional data is lost (the control unit returns to its start-up condition). When the battery is reconnected, the display will be erroneous until the control unit receives a clear GPS satellite signal and resets its directional data.
After reconnecting the battery, wait until the satellite mark indicator turns on. Select an area where there are no high buildings or other obstacles to electromagnetic waves. Drive the vehicle in a straight line at a speed exceeding 32 km/h (20 mph) for at least 20 seconds.
