Combination Switch: Installation

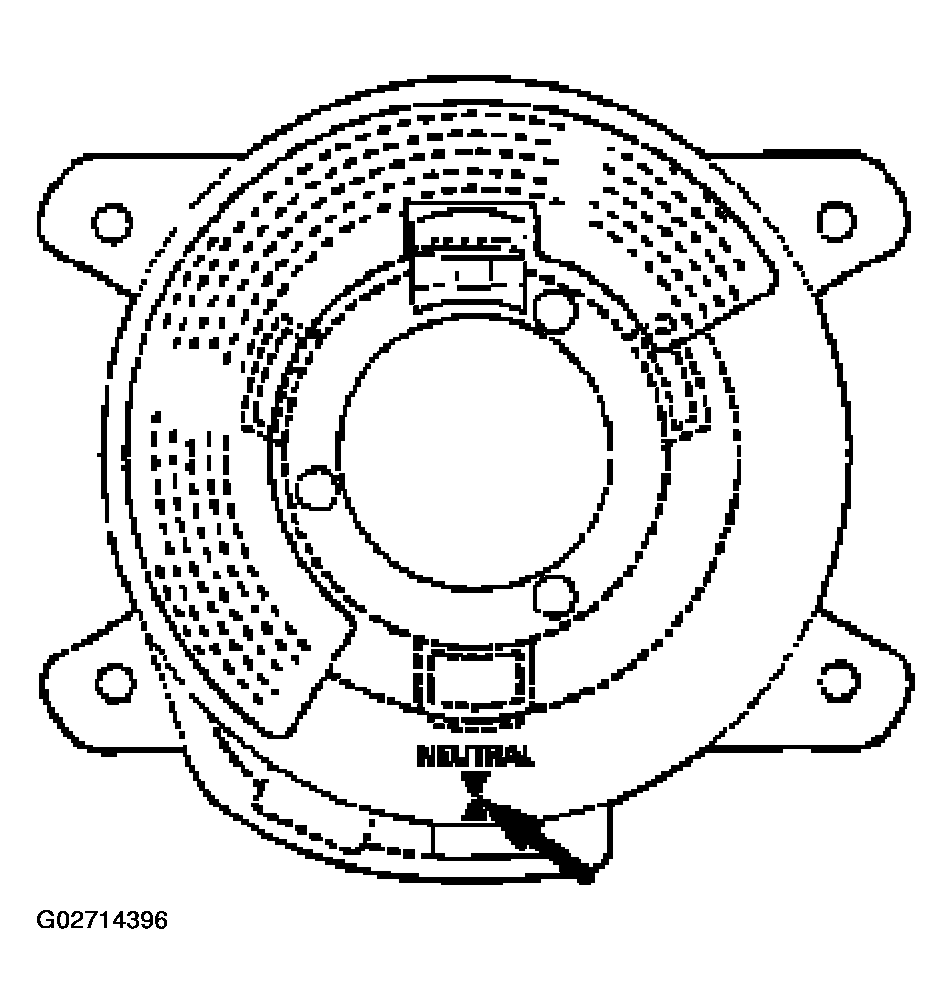

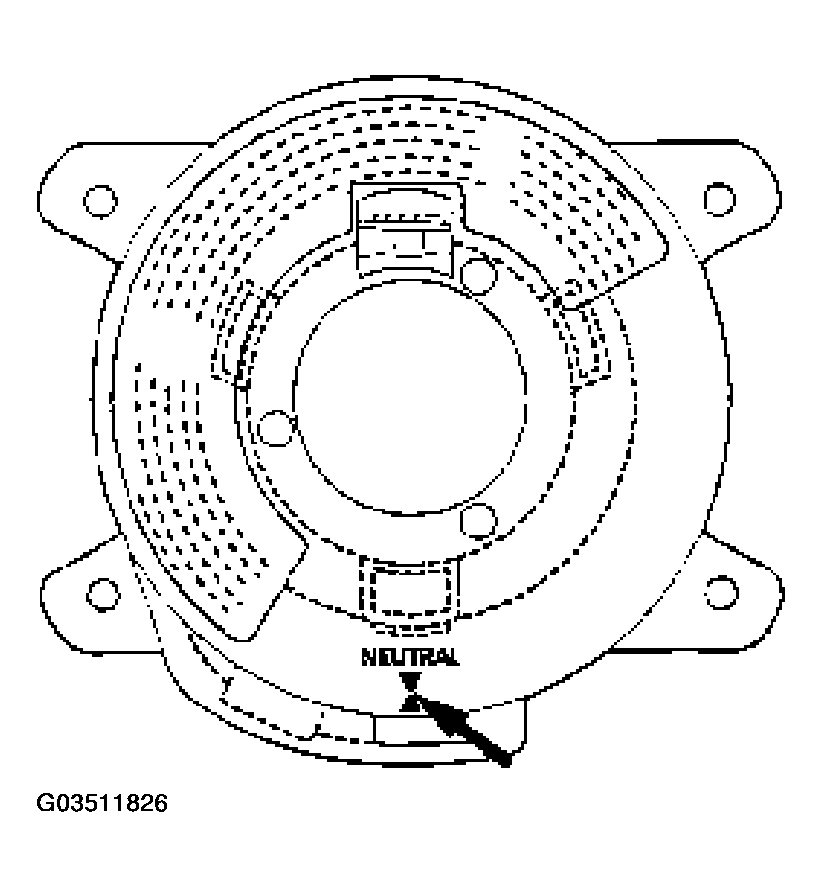

- Install combination switch and SRS coil assembly. After installation of combination switch assembly, connect the combination switch wiring harness connector and the SRS 2-way connector located under the steering column. Then turn the SRS coil counter clockwise to full, return about 3 turns and align the neutral mark.CAUTION: Turn the SRS coil counter clockwise until some resistance is felt, or damage may occur to the SRS coil.

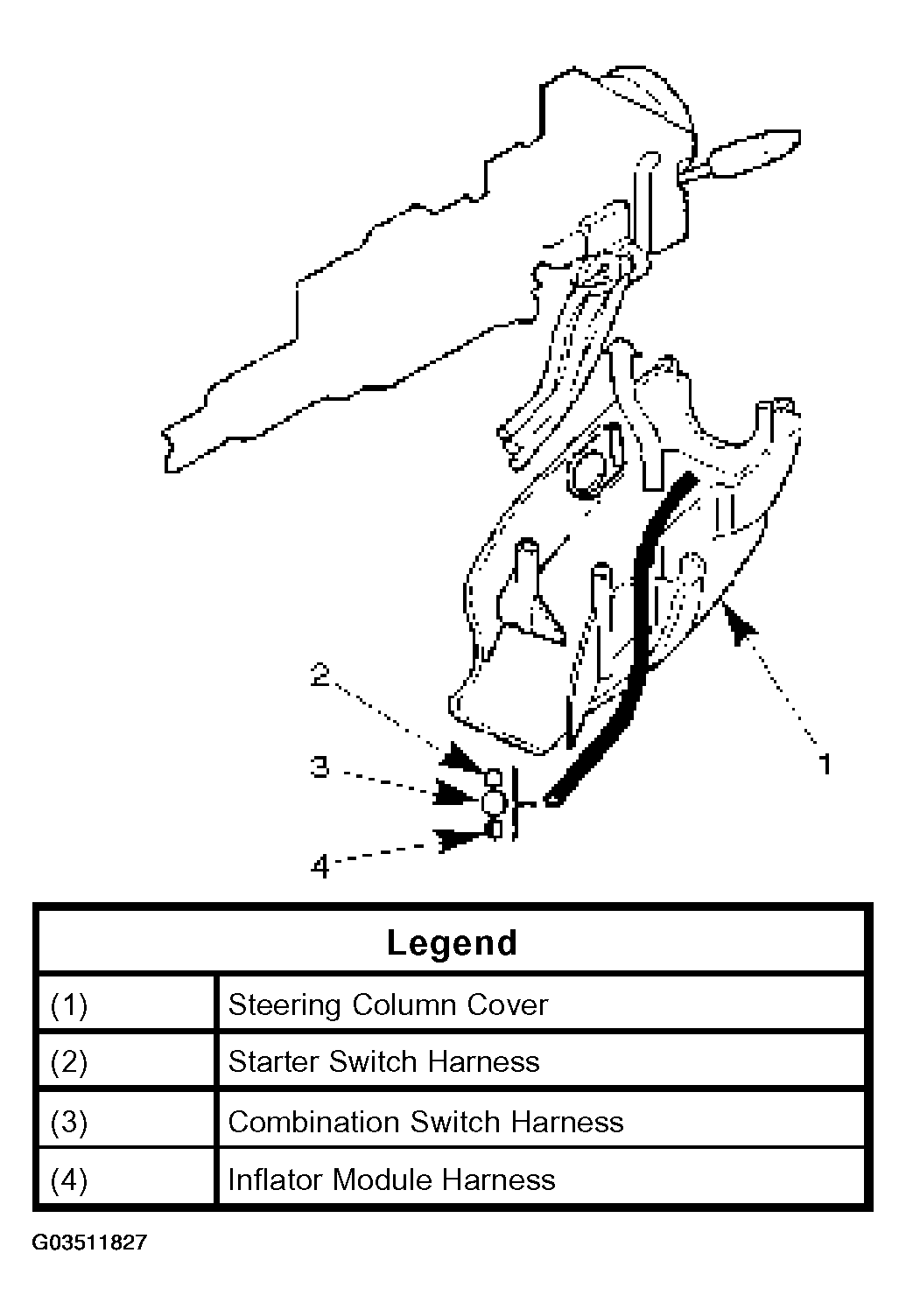

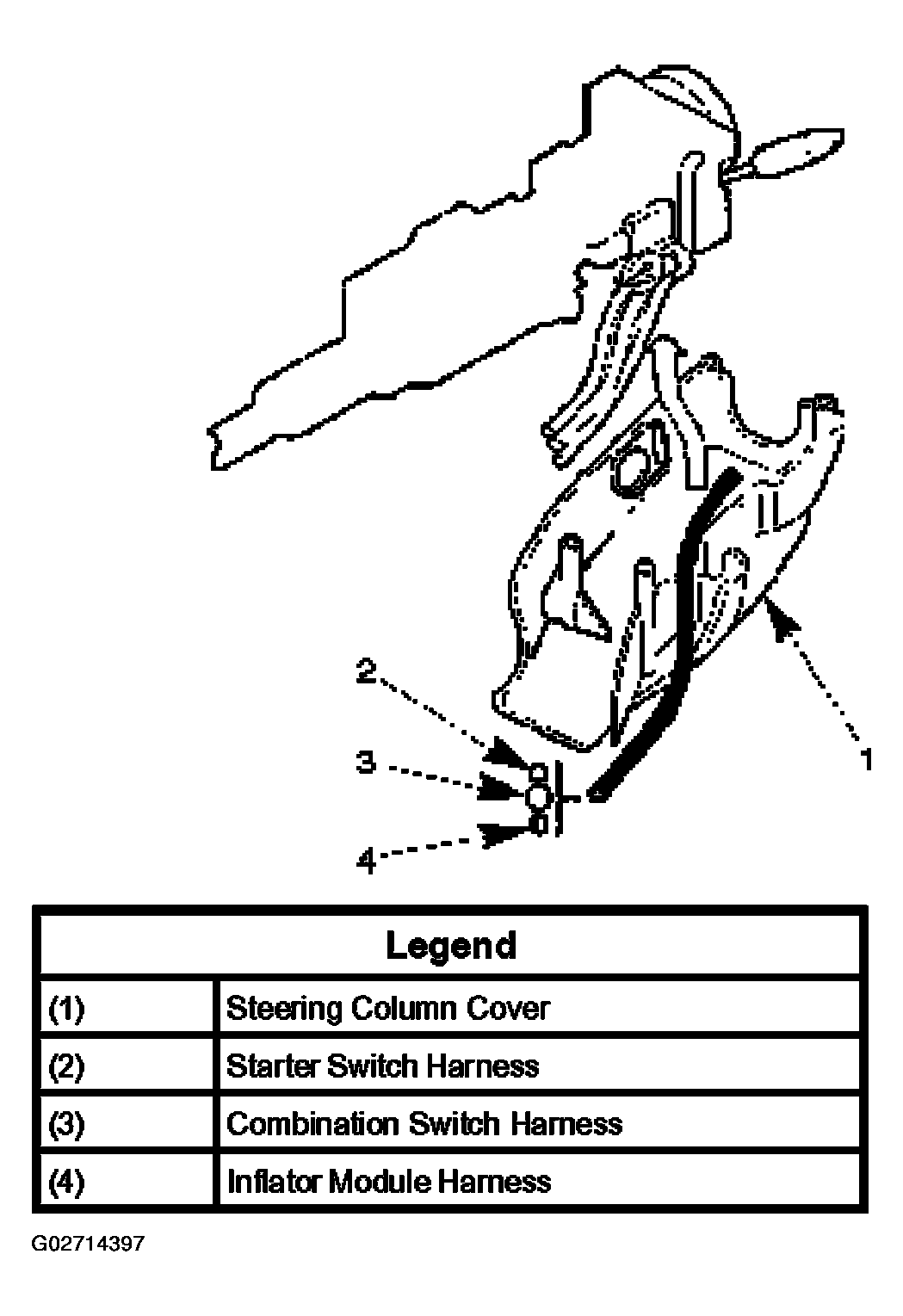

- When installing the steering column cover, be sure to route each wire harness as illustrated so that the harnesses do not catch on any moving parts.
- Align the setting marks made when removing then install steering wheel.CAUTION: Never apply force to the steering wheel shaft using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.
- Tighten the steering wheel fixing nut to the specified torque.
Torque: 34 N.m (25 lb ft)
- Support the inflator module and carefully connect the SRS connector and horn lead.NOTE: Pass the lead wire through the tabs on the plastic cover (wire protector) of inflator to prevent lead wire from being pinched.
- Tighten bolts to specified torque.
Torque: 9 (78 lb in)
- Install driver knee bolster (reinforcement).
- Install instrument panel lower cover then Install the engine hood opening lever.
- Connect the SRS connector.
- Connect the battery "-" terminal cable.
- Turn the ignition switch to the "ON" position and observe the warning lamp. The lamp should flash 7 times. If the lamp does not operate correctly, refer to AIR BAG RESTRAINT SYSTEMS .
