Home >> Isuzu >> 2003 >> Axiom XS, RWD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Main Data And Specifications >> Torque Specifications

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Torque Specifications

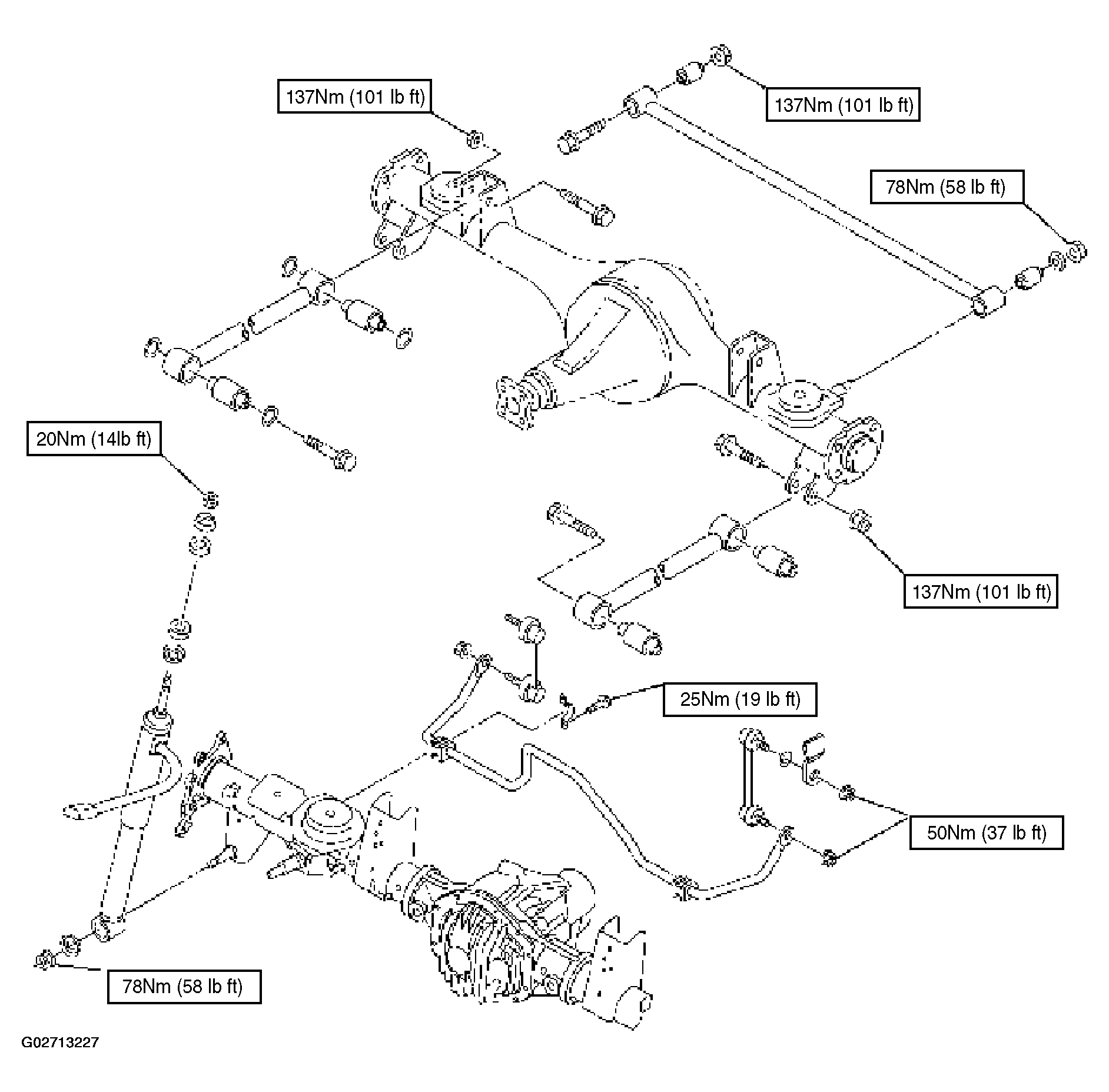

Fig 1: Rear Suspension Torque Specifications

G02713227

Courtesy of ISUZU MOTOR CO.
