Immobilizer System Check

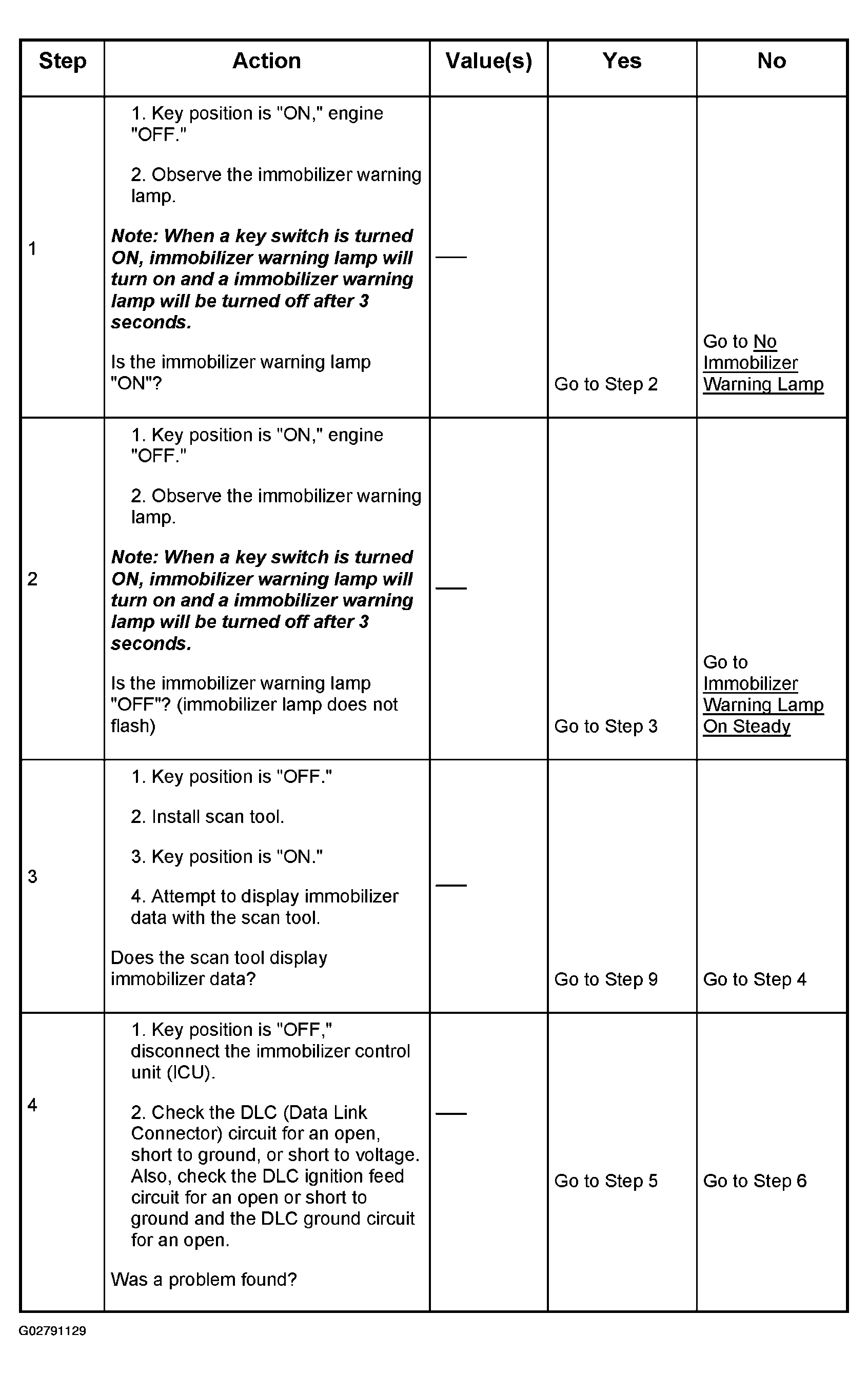

Fig 1: Immobilizer System Check Chart (1 Of 3)
G02791129Courtesy of ISUZU MOTOR CO.

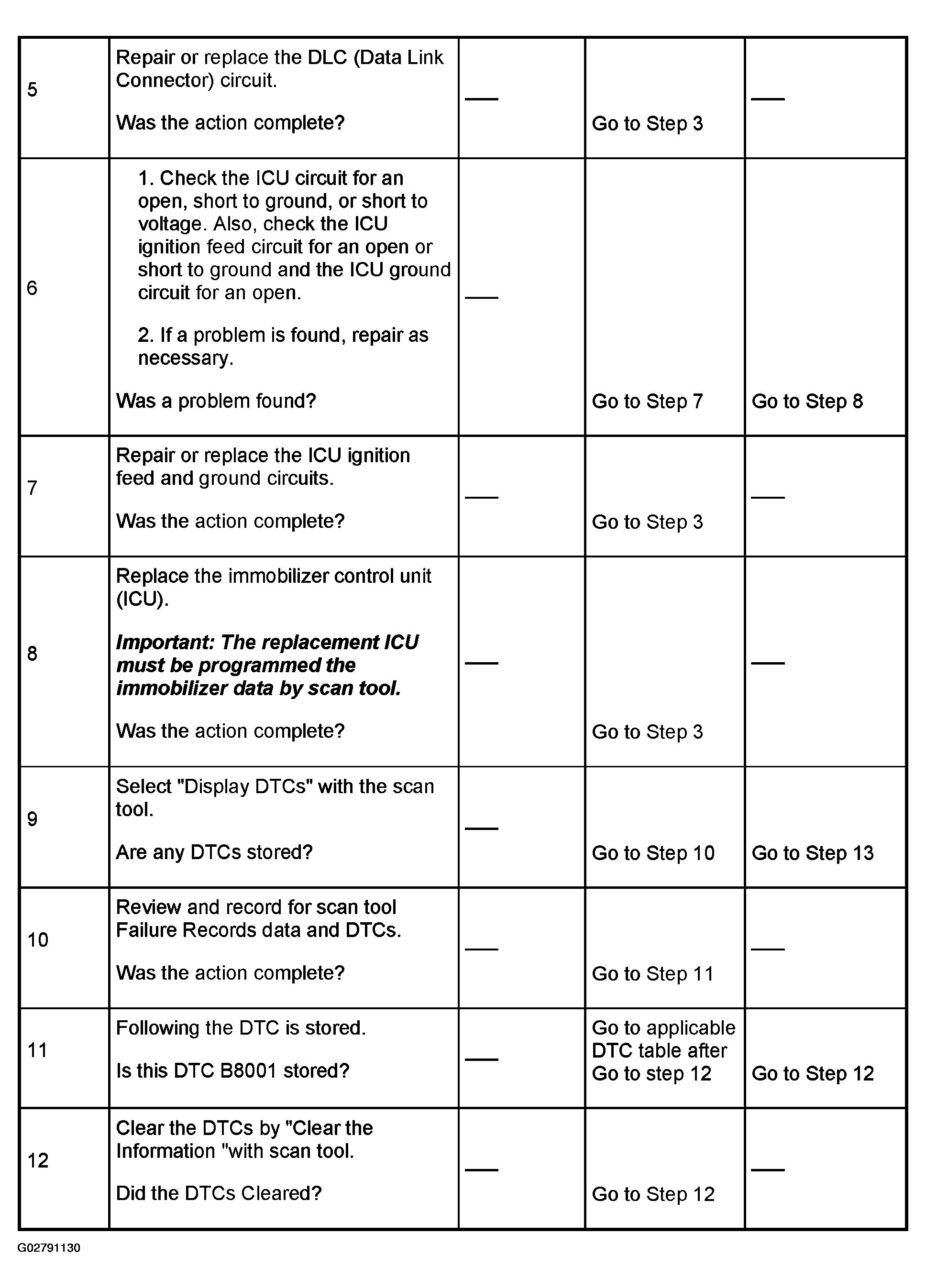

Fig 2: Immobilizer System Check Chart (2 Of 3)
G02791130Courtesy of ISUZU MOTOR CO.

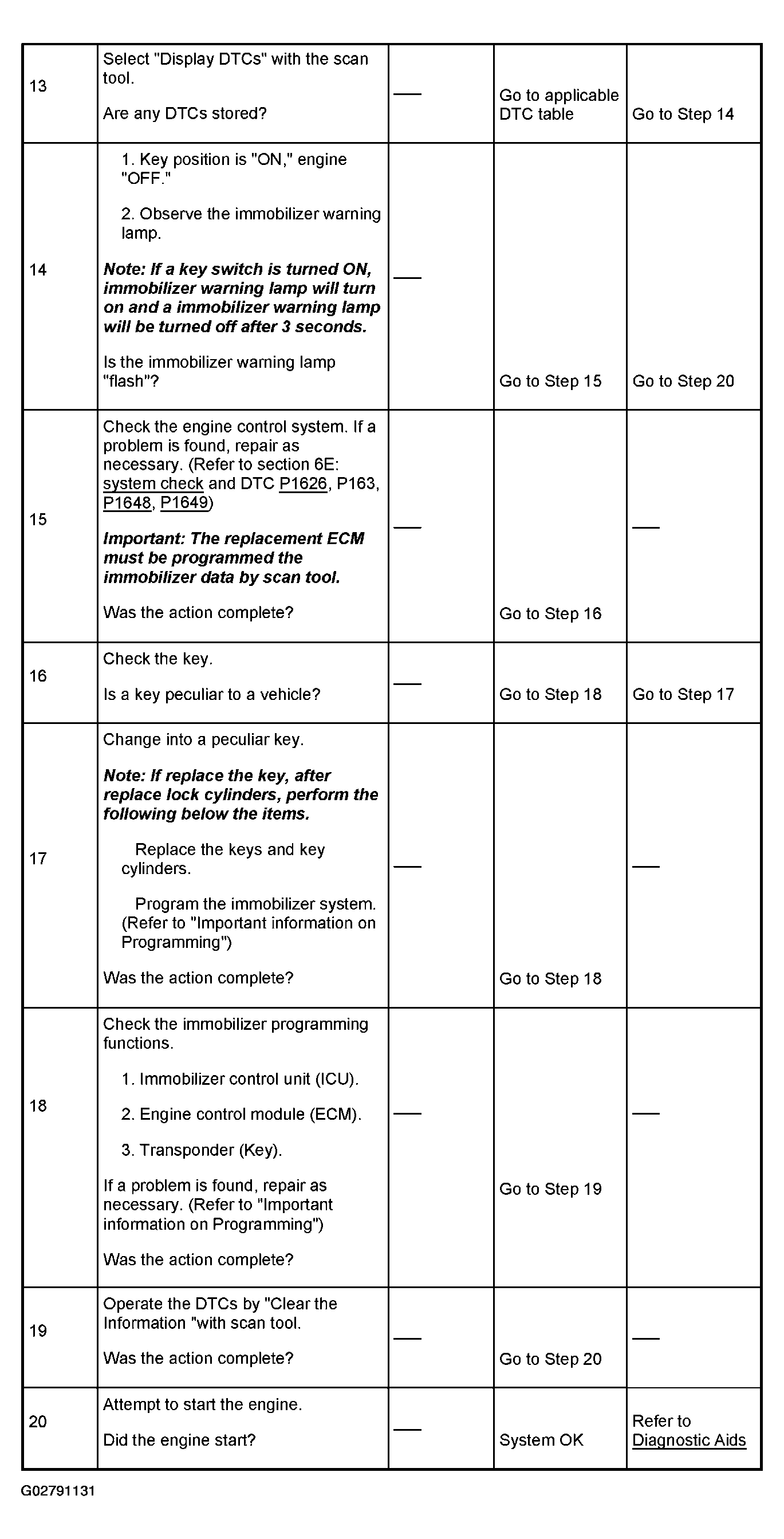

Fig 3: Immobilizer System Check Chart (3 Of 3)
G02791131Courtesy of ISUZU MOTOR CO.
