Electronic Hydraulic Control Unit: Removal

  1. Remove brake pipes.
    • After disconnecting brake pipe, cap or tape the openings of the brake pipe to prevent the entry of foreign matter.
  2. Remove three bracket fixing bolts.
  3. Disconnect red clip from harness connector.

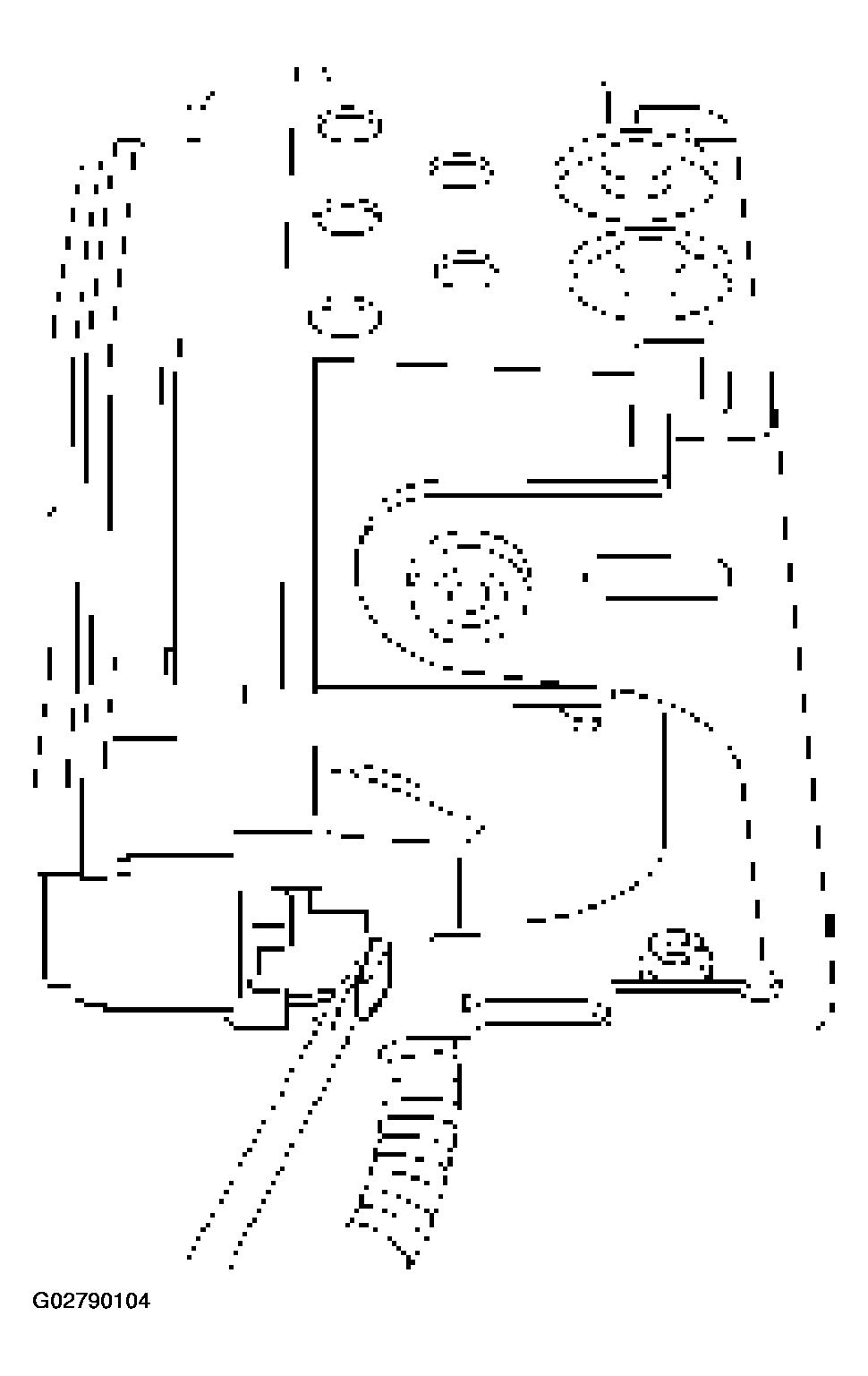

    Fig 1: Removing Bracket Fixing Bolts
    G02790104Courtesy of ISUZU MOTOR CO.
  4. Remove harness connector.
  5. Remove EHCU ASM.
  6. Remove EHCU.
