Torque Specifications

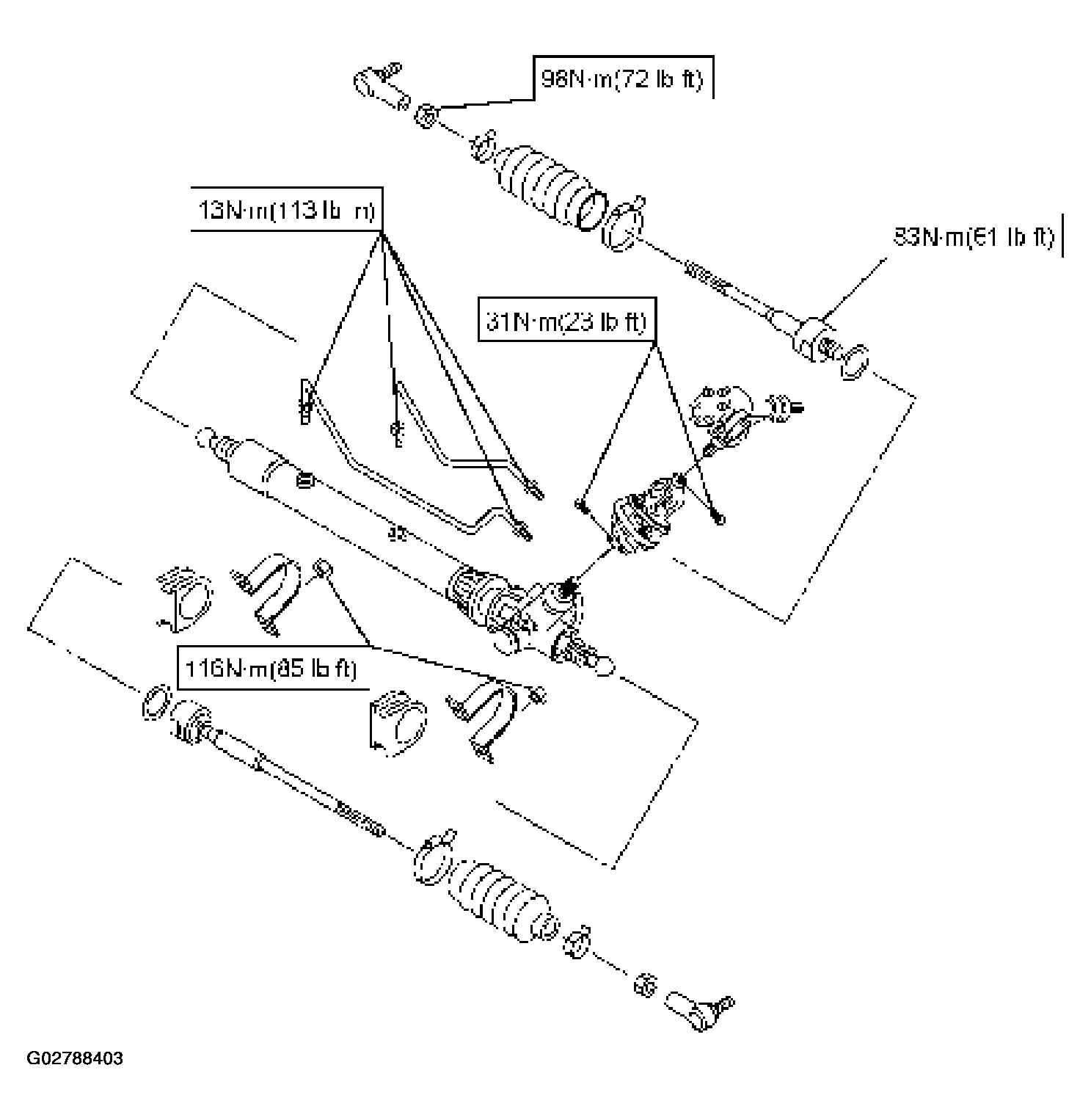

Fig 1: Fastener Tightening Torque Specifications Table
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
