Lower Control Arm and Associated Part

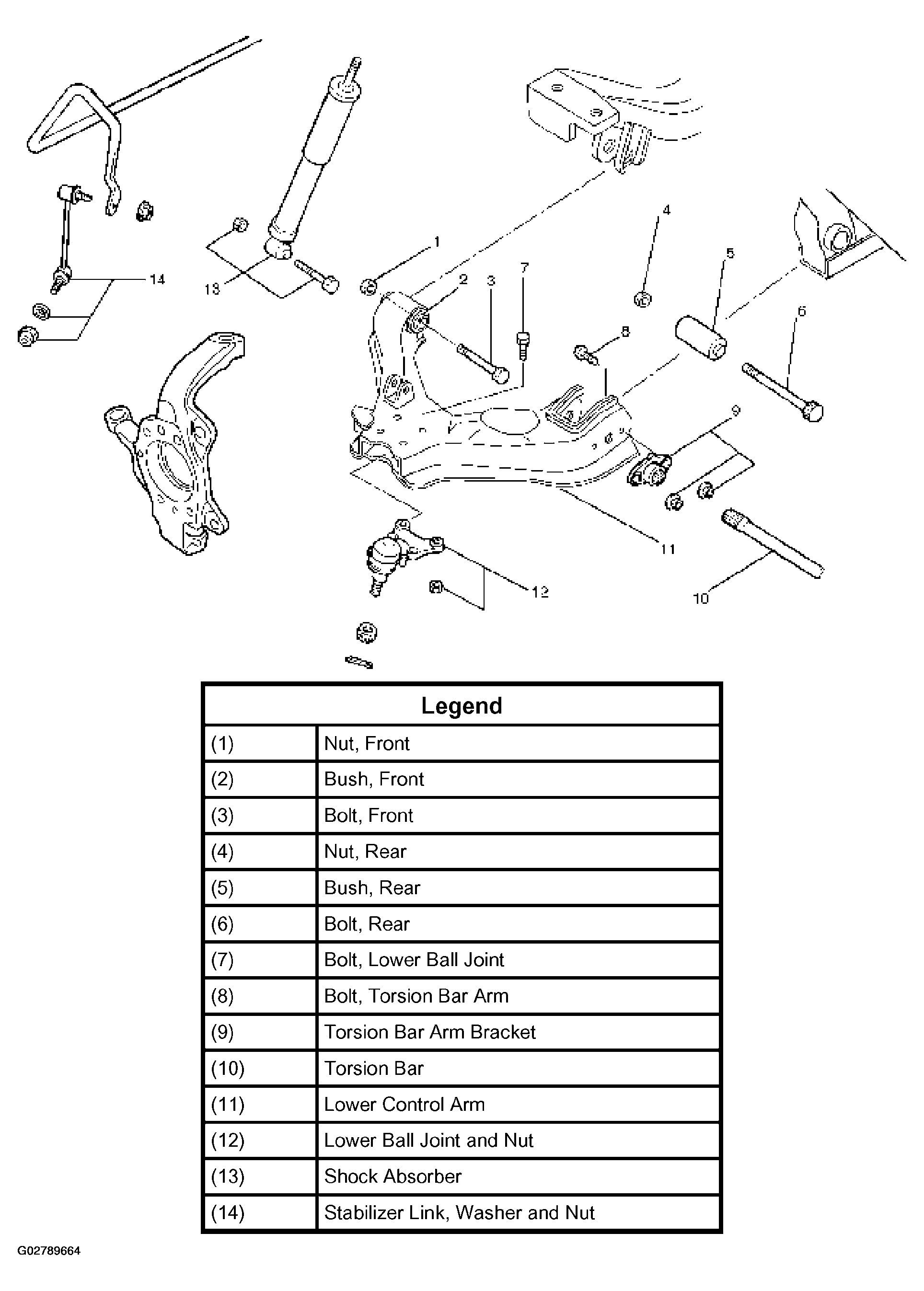

Fig 1: Identifying Lower Control Arm & Associated Part
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
