Powertrain Control Module (PCM) (HEC): Removal

  1. Disconnect battery ground cable.
  2. Remove lower cluster assembly, center console and front console.
  3. Disconnect PCM wiring harness connectors from PCM.
  4. Remove four retaining nuts and PCM with bracket from instrument panel stay.
  5. Remove PCM from bracket.

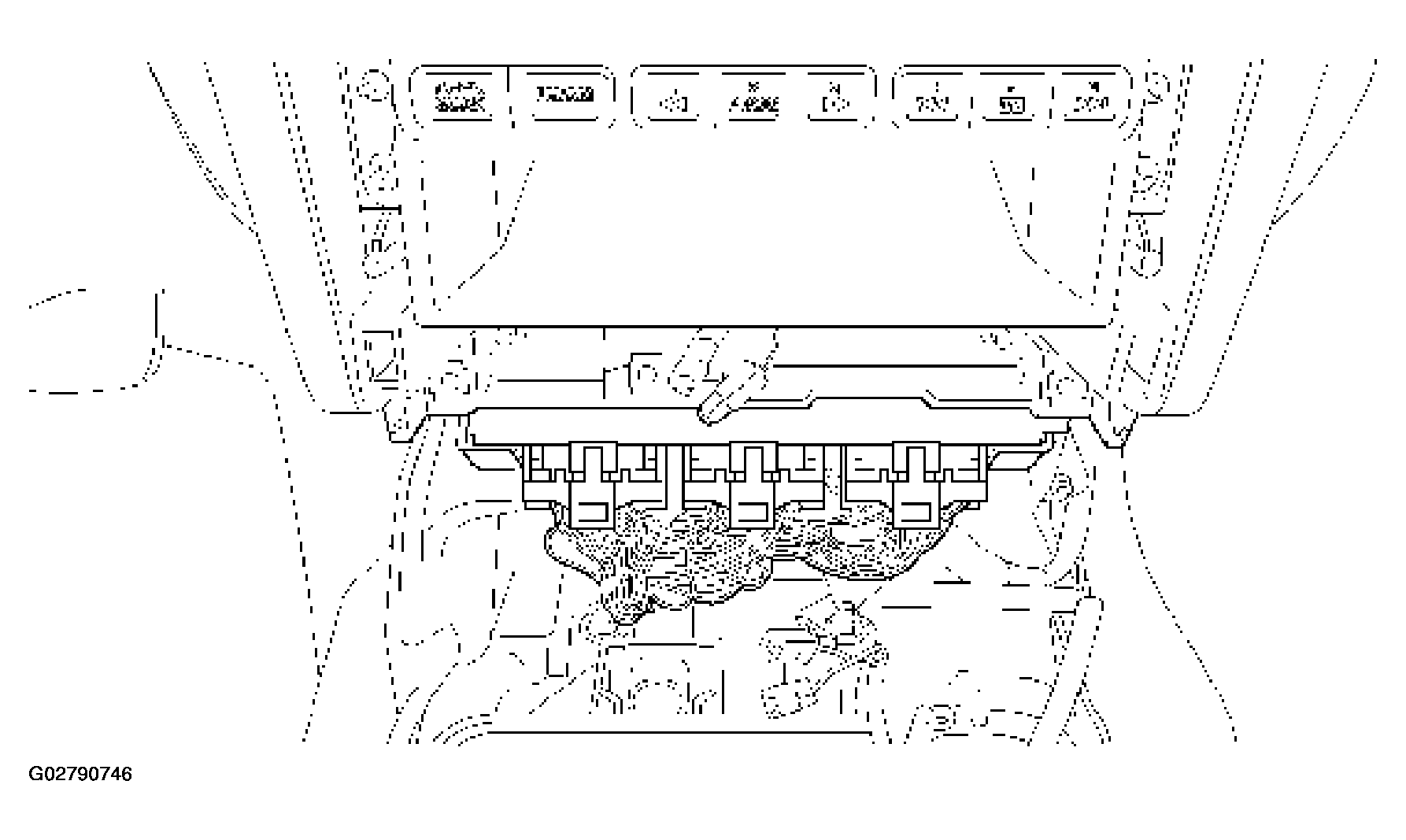

    Fig 1: Removing PCM From Bracket (PCM) (HEC)
    G02790746Courtesy of ISUZU MOTOR CO.
