Range Reference Chart

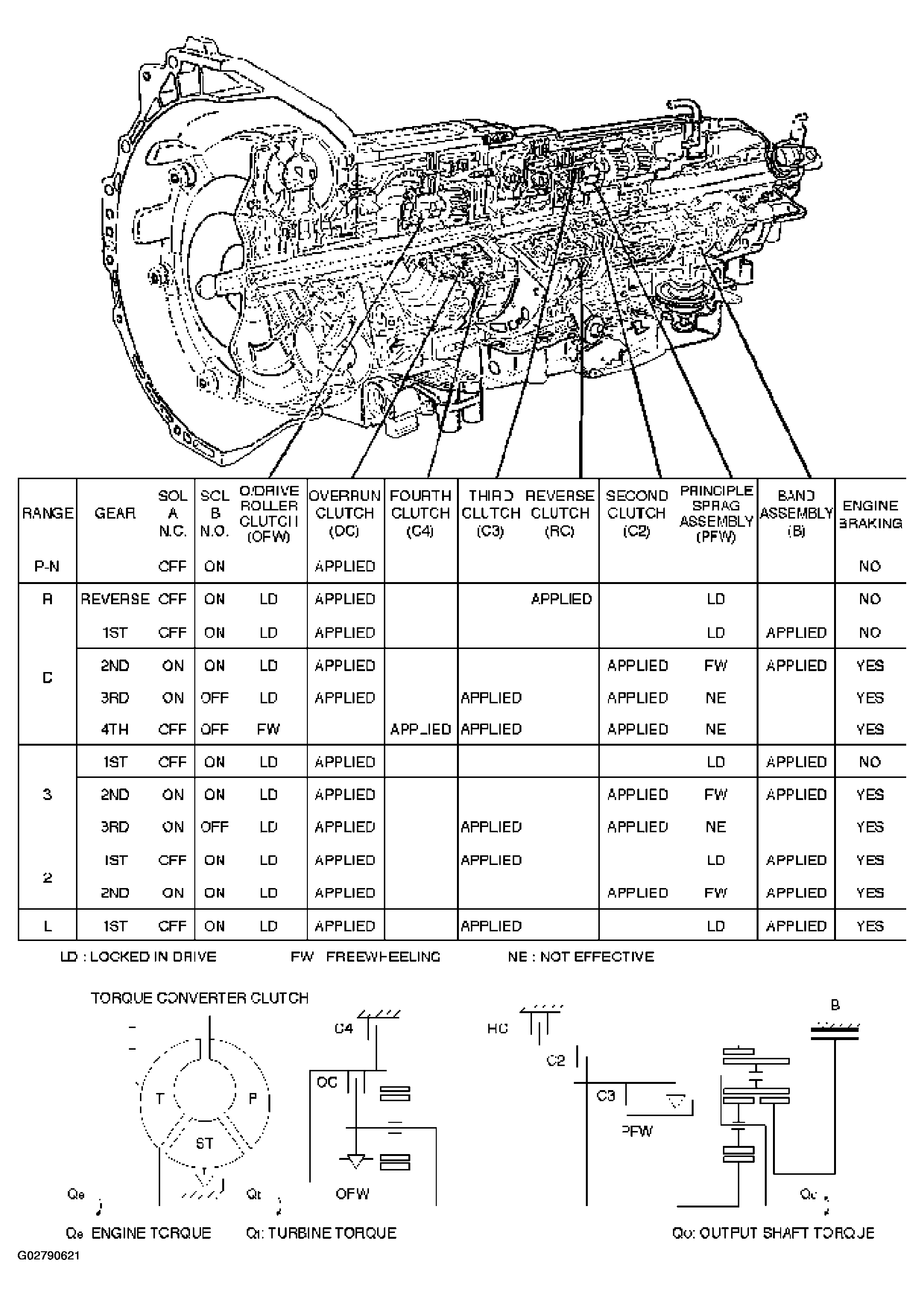

Fig 1: Automatic Transmission Range Reference Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
