Speed Sensor (Extension Assembly): Removal

  1. Disconnect battery ground cable.
  2. Remove front console (V6, 4x4).
  3. Remove selector lever assembly.
  4. Disconnect speed sensor harness connector from speed sensor.
  5. Remove one 10 mm screw and speed sensor with O-ring.

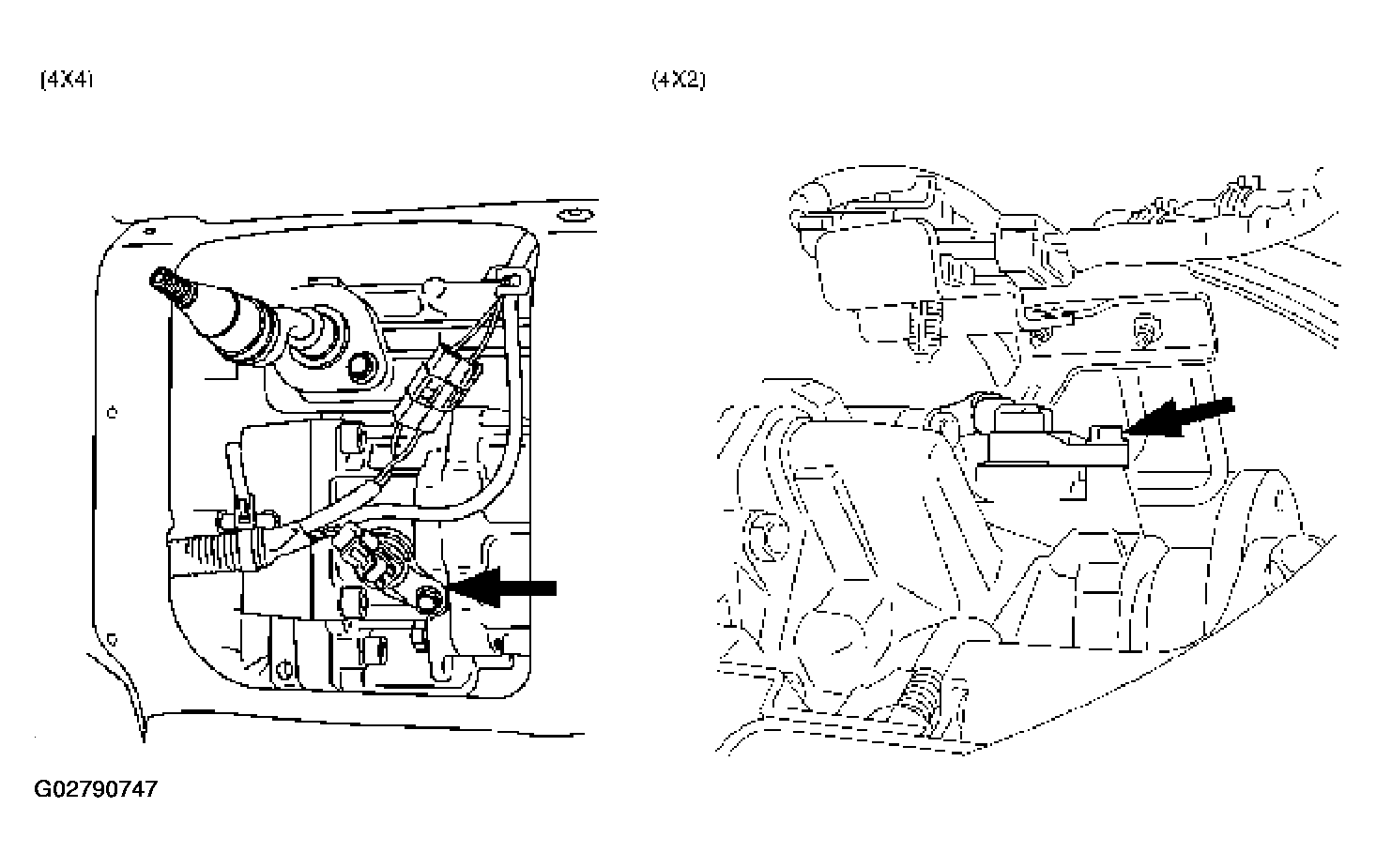

    Fig 1: Removing Screw & Speed Sensor With O-Ring
    G02790747Courtesy of ISUZU MOTOR CO.
