Torque Specification

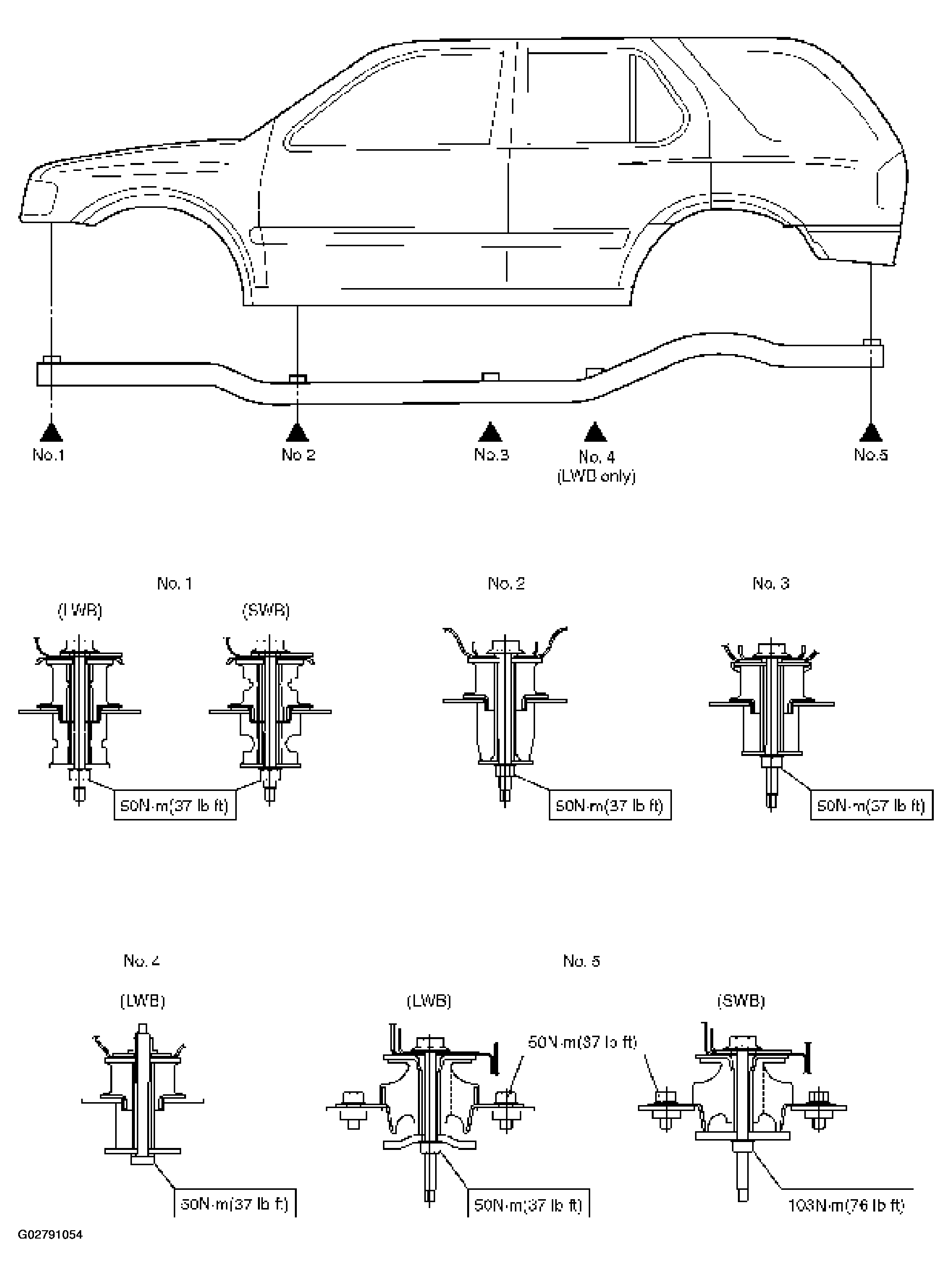

Fig 1: Torque Specifications Table (1 Of 7)

G02791054

Courtesy of ISUZU MOTOR CO.

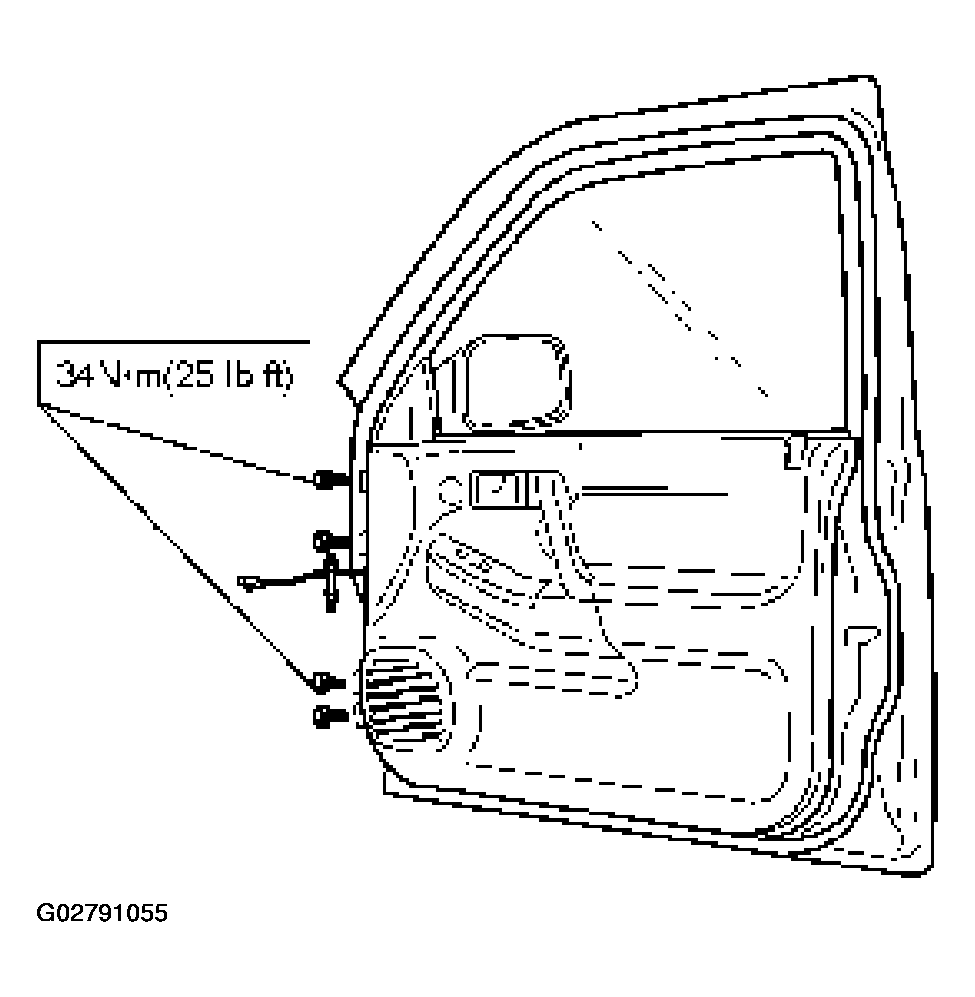

Fig 2: Torque Specifications Table (2 Of 7)

G02791055

Courtesy of ISUZU MOTOR CO.

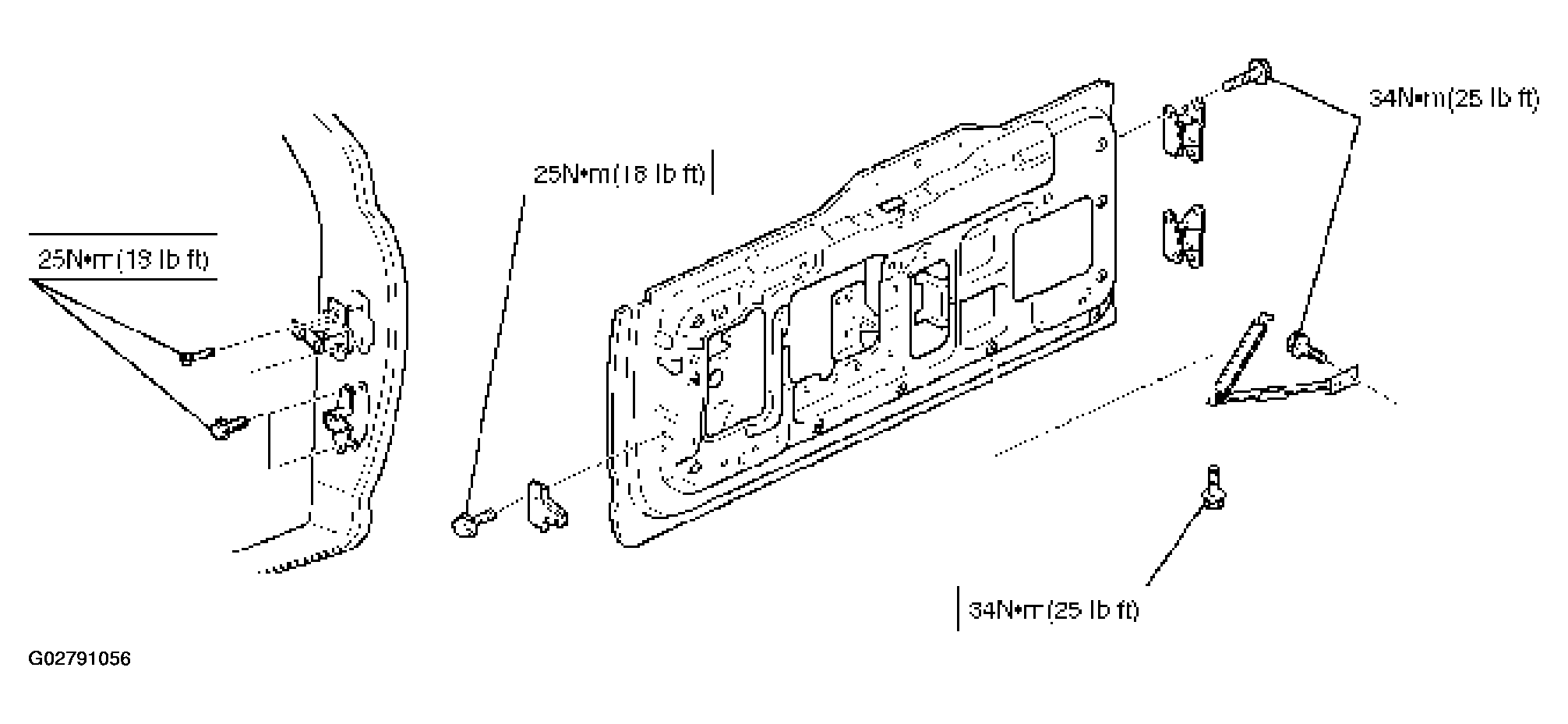

Fig 3: Torque Specifications Table (3 Of 7)

G02791056

Courtesy of ISUZU MOTOR CO.

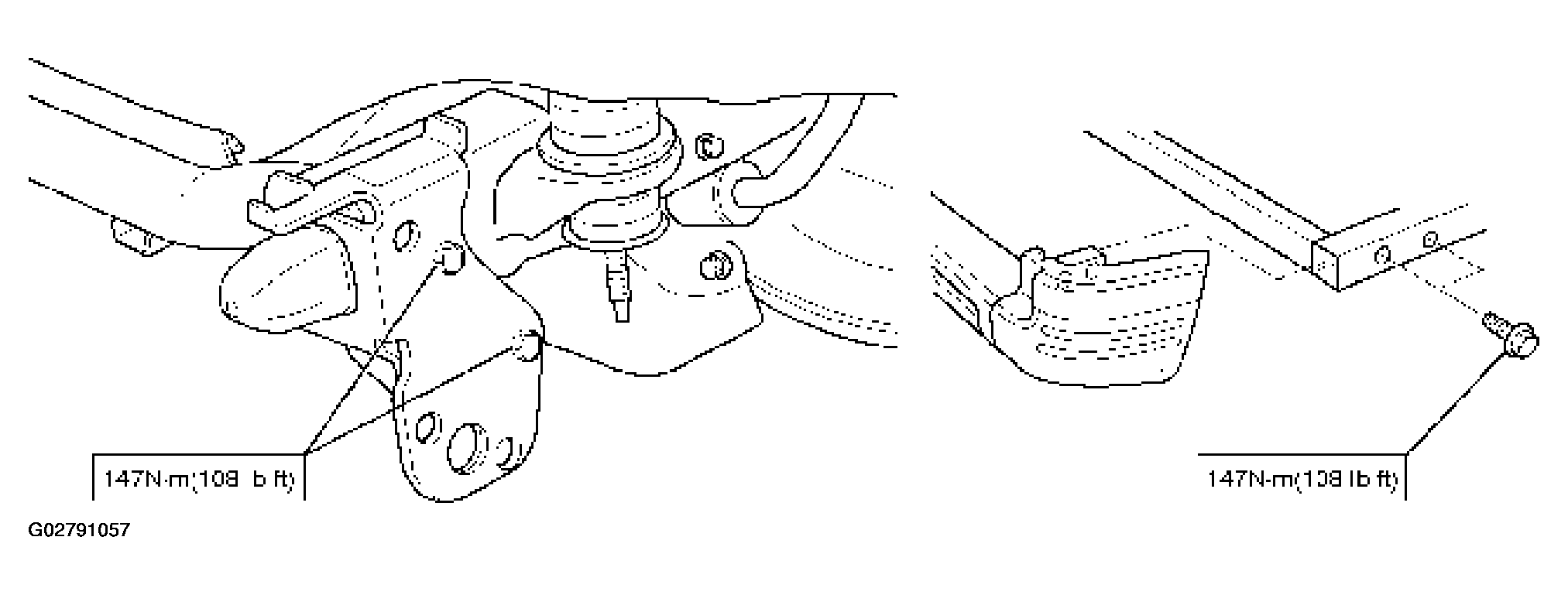

Fig 4: Torque Specifications Table (4 Of 7)

G02791057

Courtesy of ISUZU MOTOR CO.

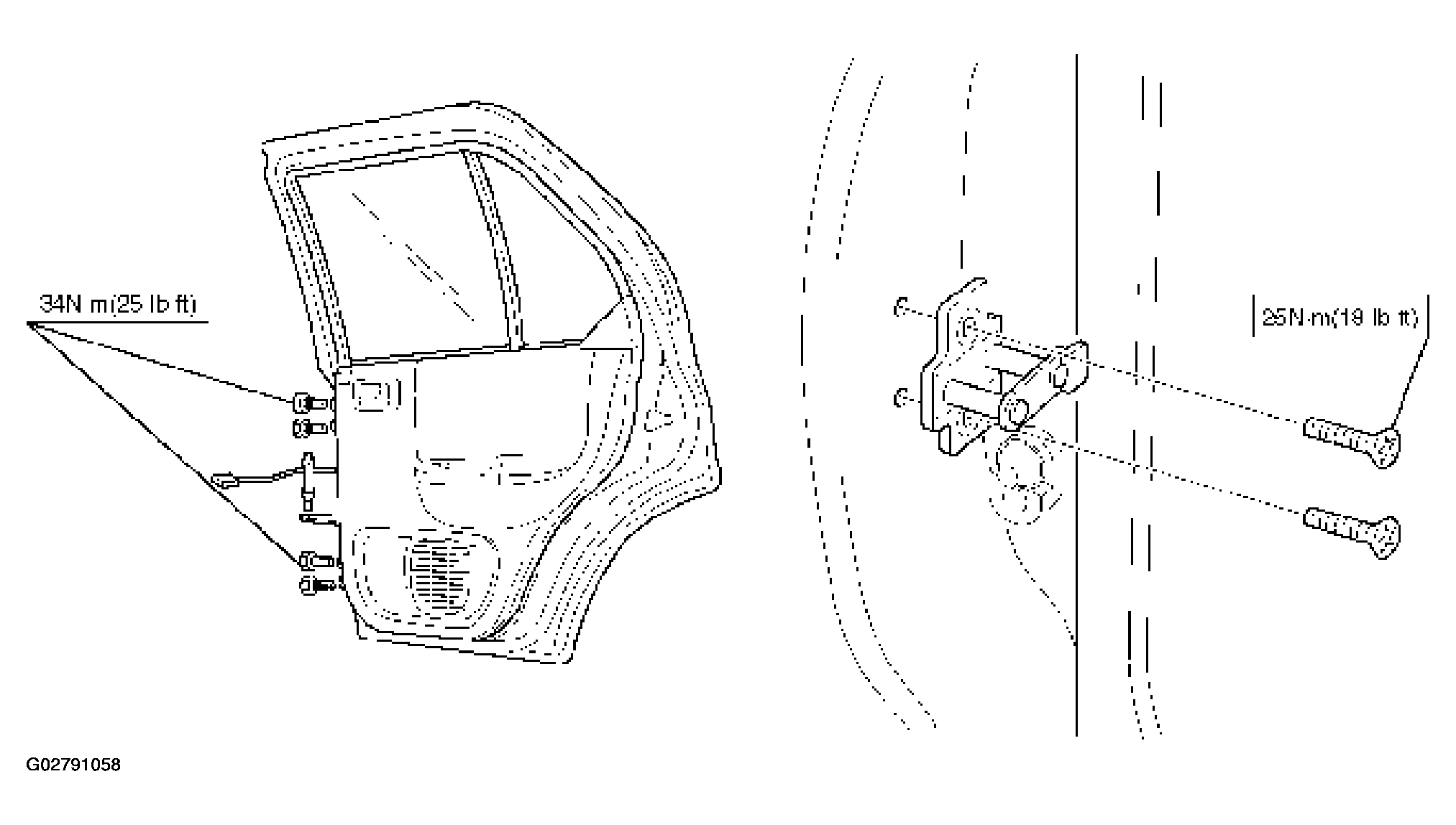

Fig 5: Torque Specifications Table (5 Of 7)

G02791058

Courtesy of ISUZU MOTOR CO.

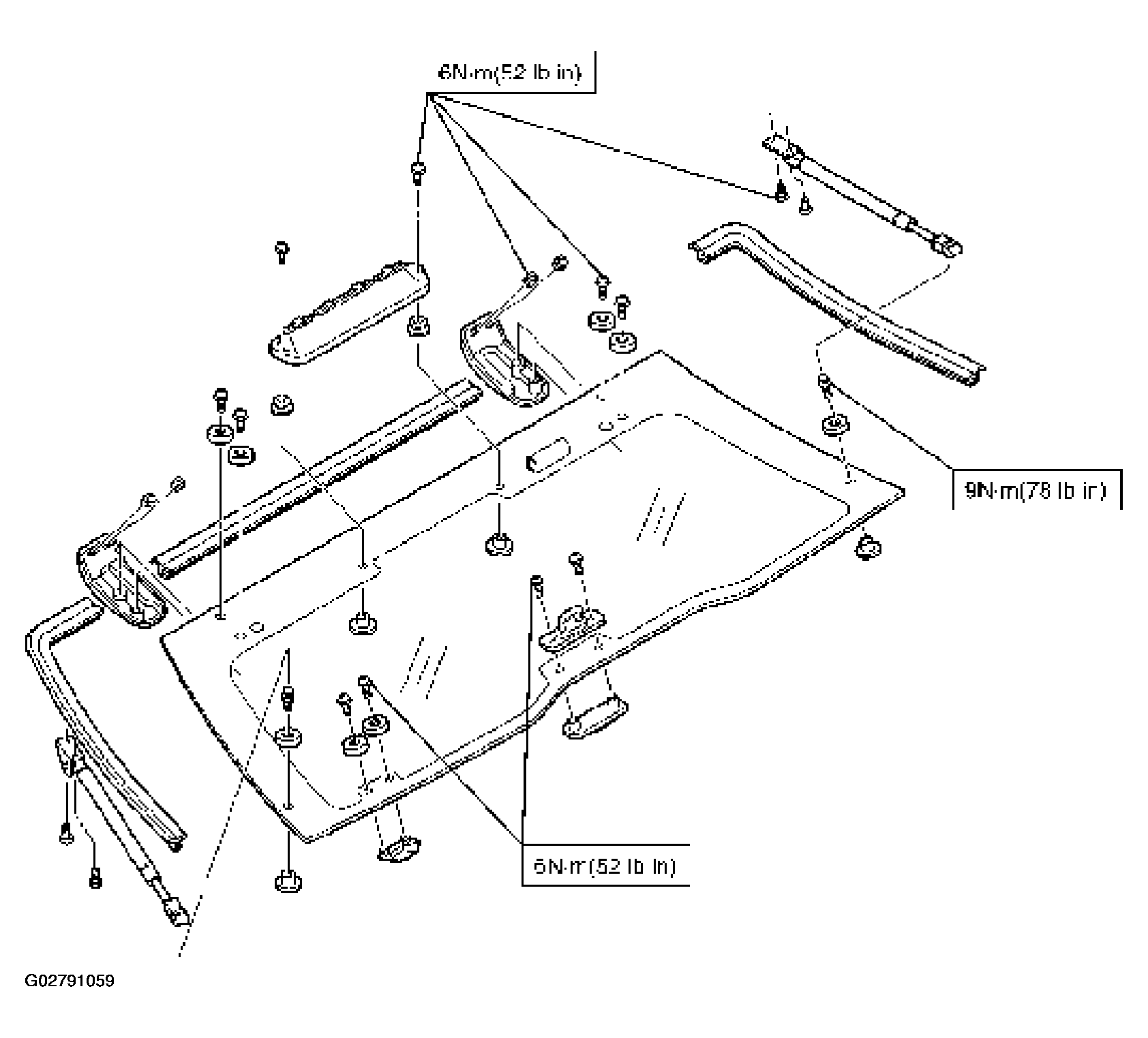

Fig 6: Torque Specifications Table (6 Of 7)

G02791059

Courtesy of ISUZU MOTOR CO.

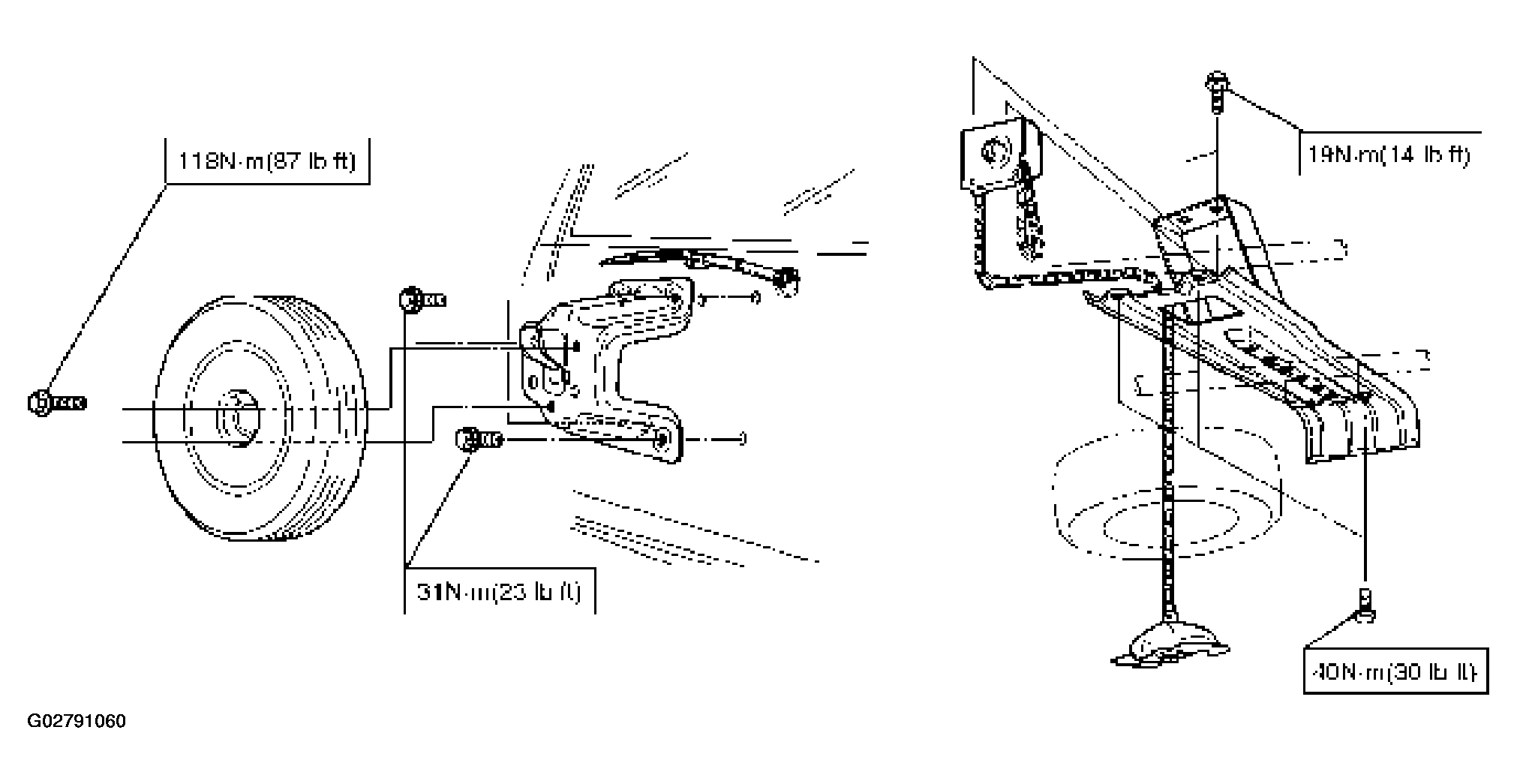

Fig 7: Torque Specifications Table (7 Of 7)

G02791060

Courtesy of ISUZU MOTOR CO.
