Lockup Speed Chart

Fig 1: Lockup Speed Chart
G02790657Courtesy of ISUZU MOTOR CO.
Fig 2: Lock-up Operation Chart
G02790658Courtesy of ISUZU MOTOR CO.

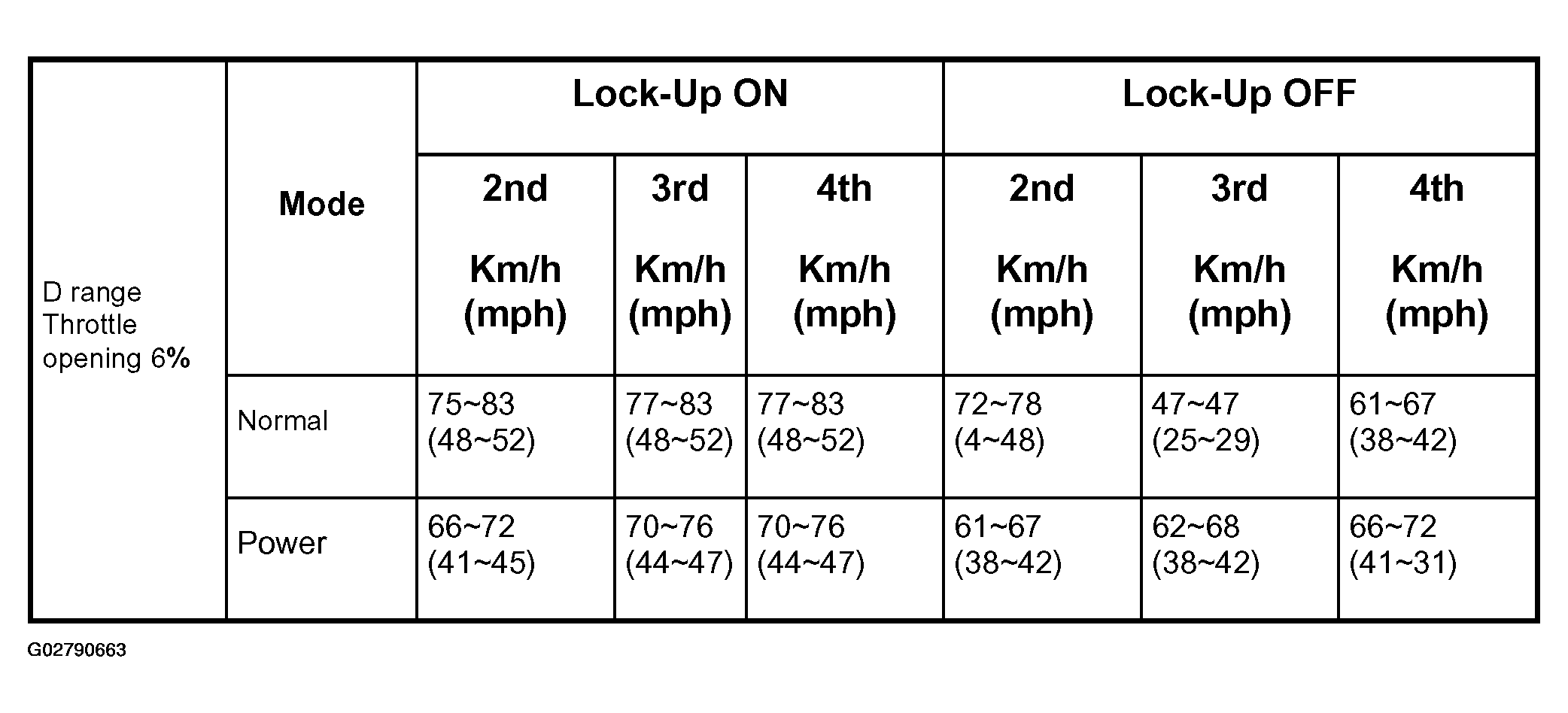

Fig 1: Lockup Speed Chart
G02790663Courtesy of ISUZU MOTOR CO.
