Torque Specifications

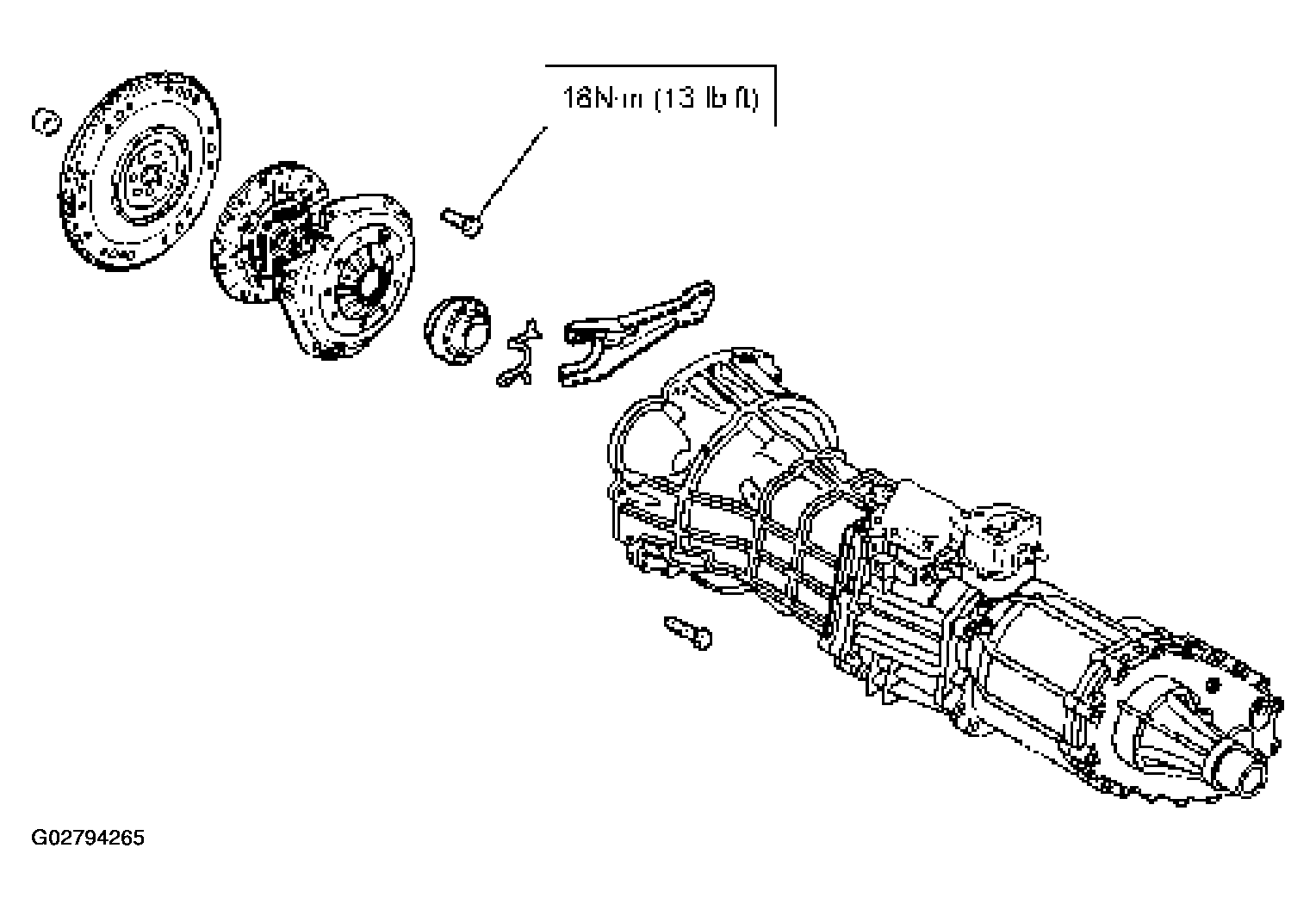

Fig 1: Clutch Torque Specifications (Y22SE)
G02794265Courtesy of ISUZU MOTOR CO.

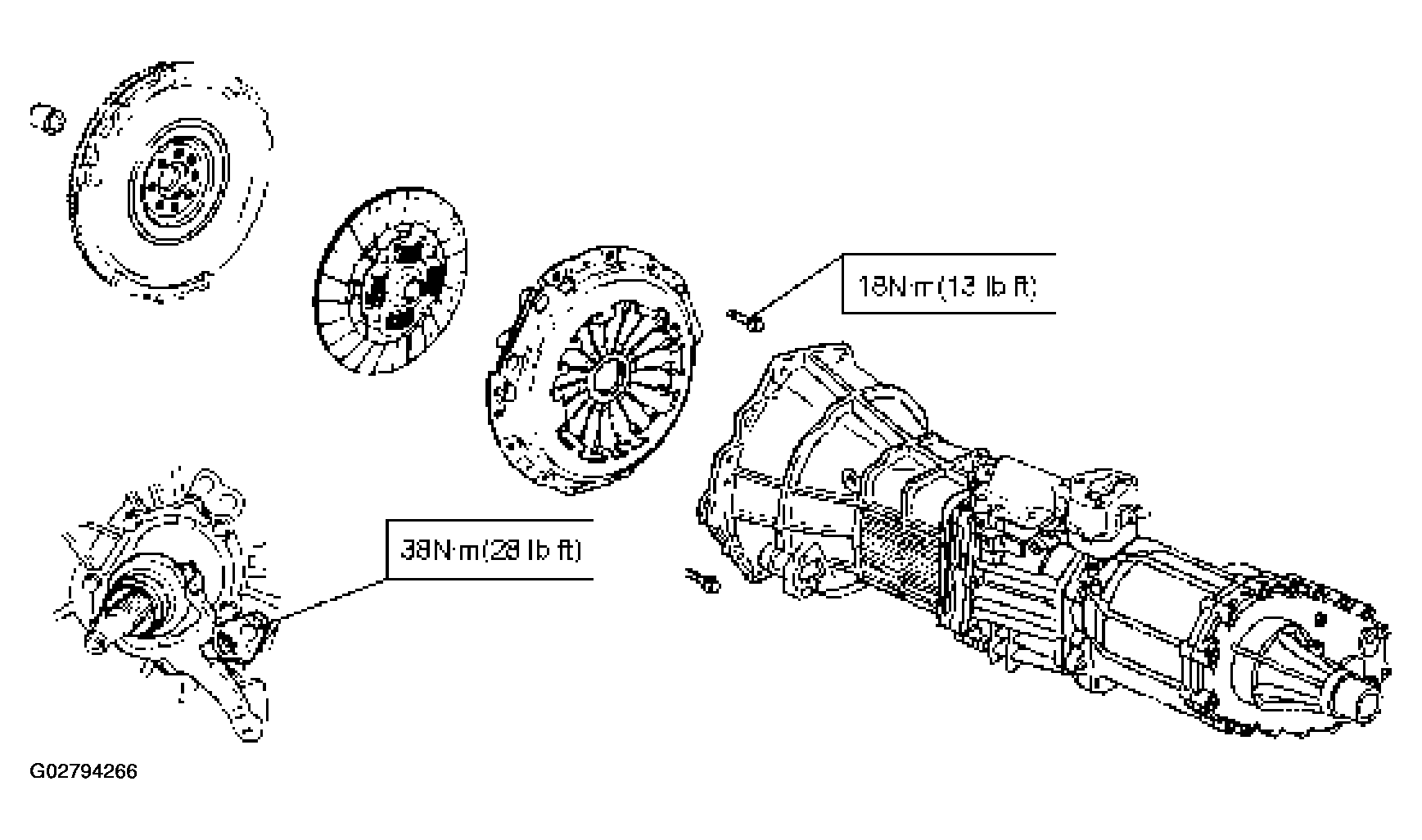

Fig 2: Clutch Torque Specifications (6VD1)
G02794266Courtesy of ISUZU MOTOR CO.

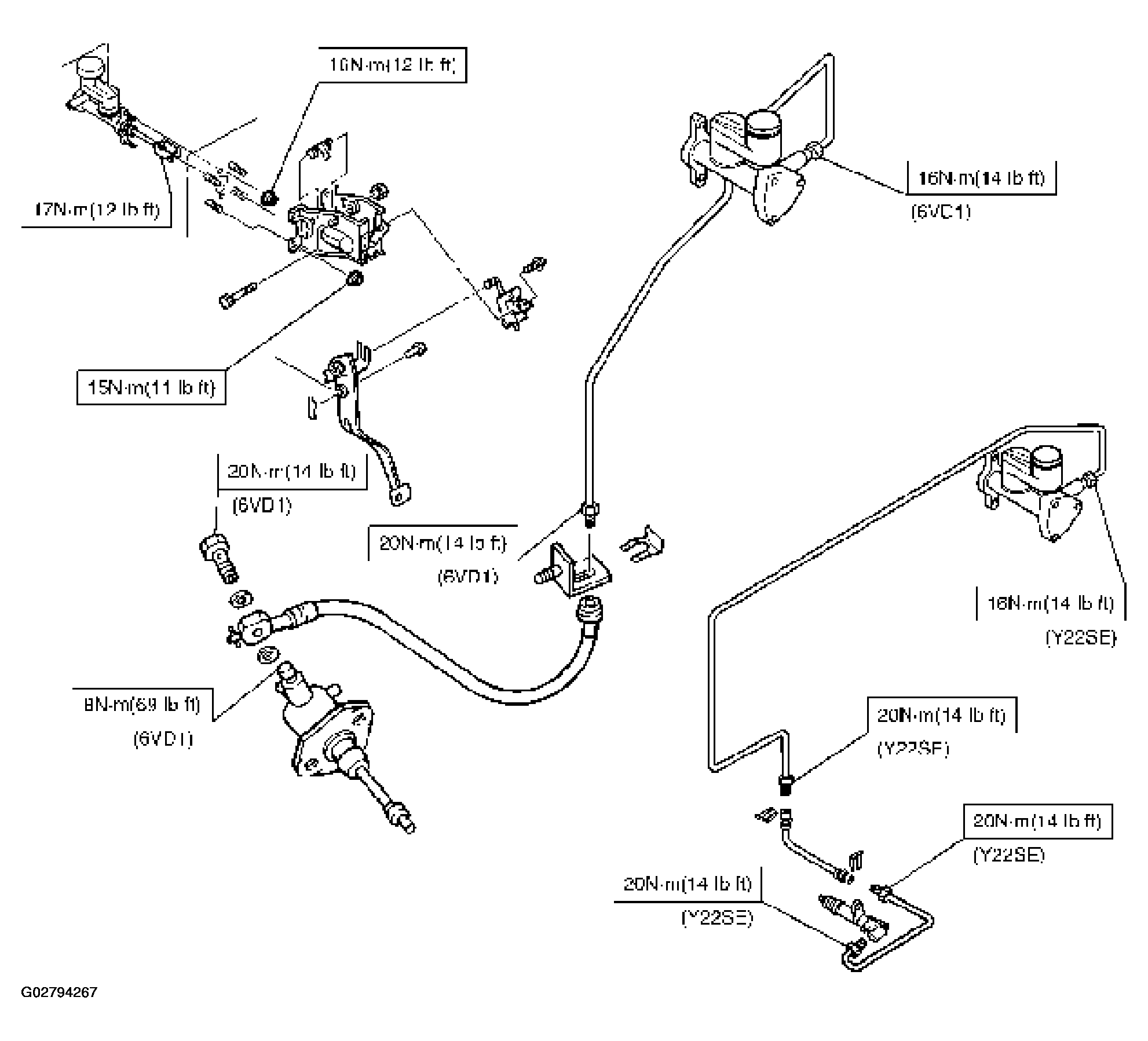

Fig 3: Clutch System Nuts And Bolts Torque Specifications
G02794267Courtesy of ISUZU MOTOR CO.
