Home >> Isuzu >> 2004 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Rear Fuse Block
April 5, 2026: LEMON Manuals is launched! Read the announcement.

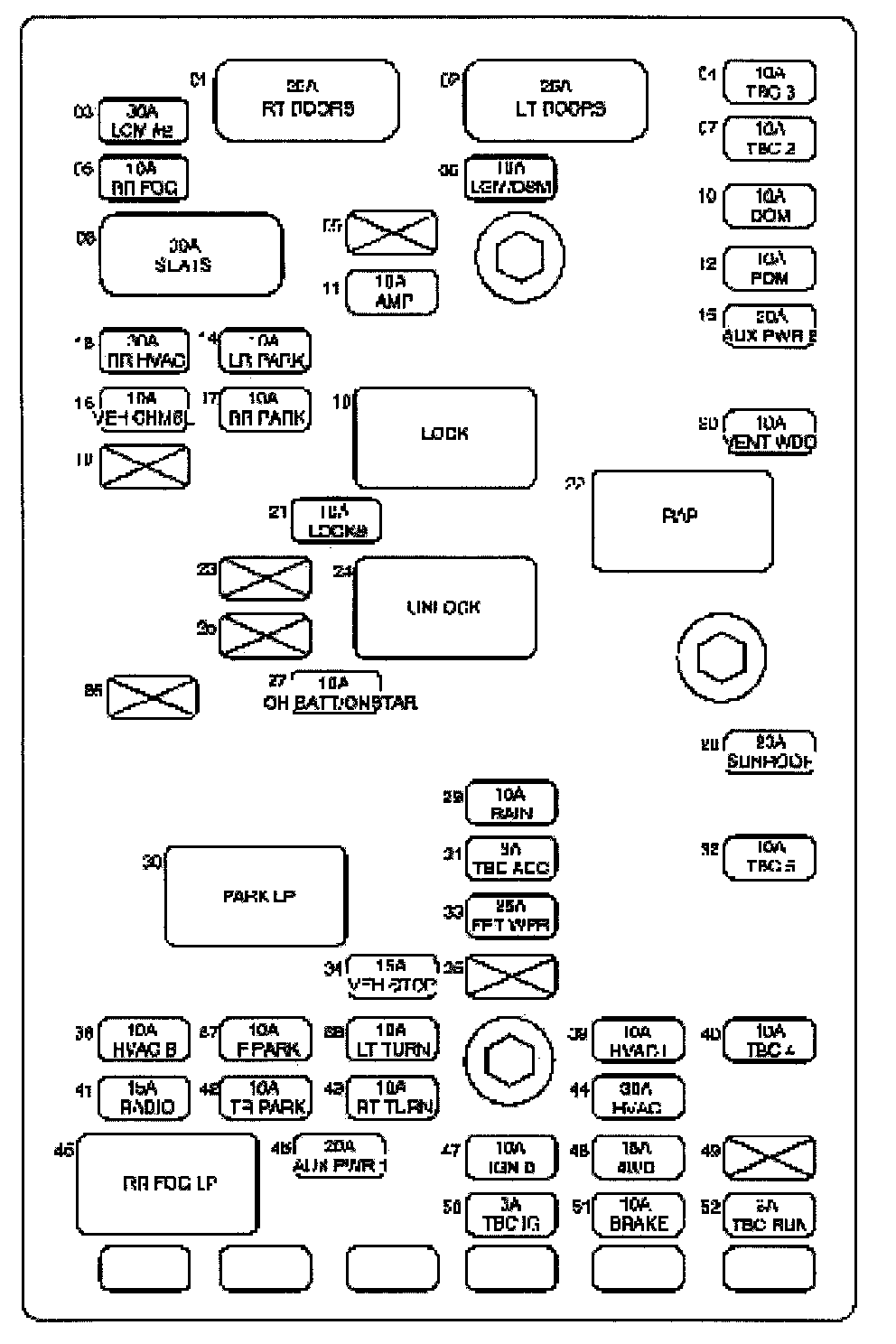

Rear Fuse Block

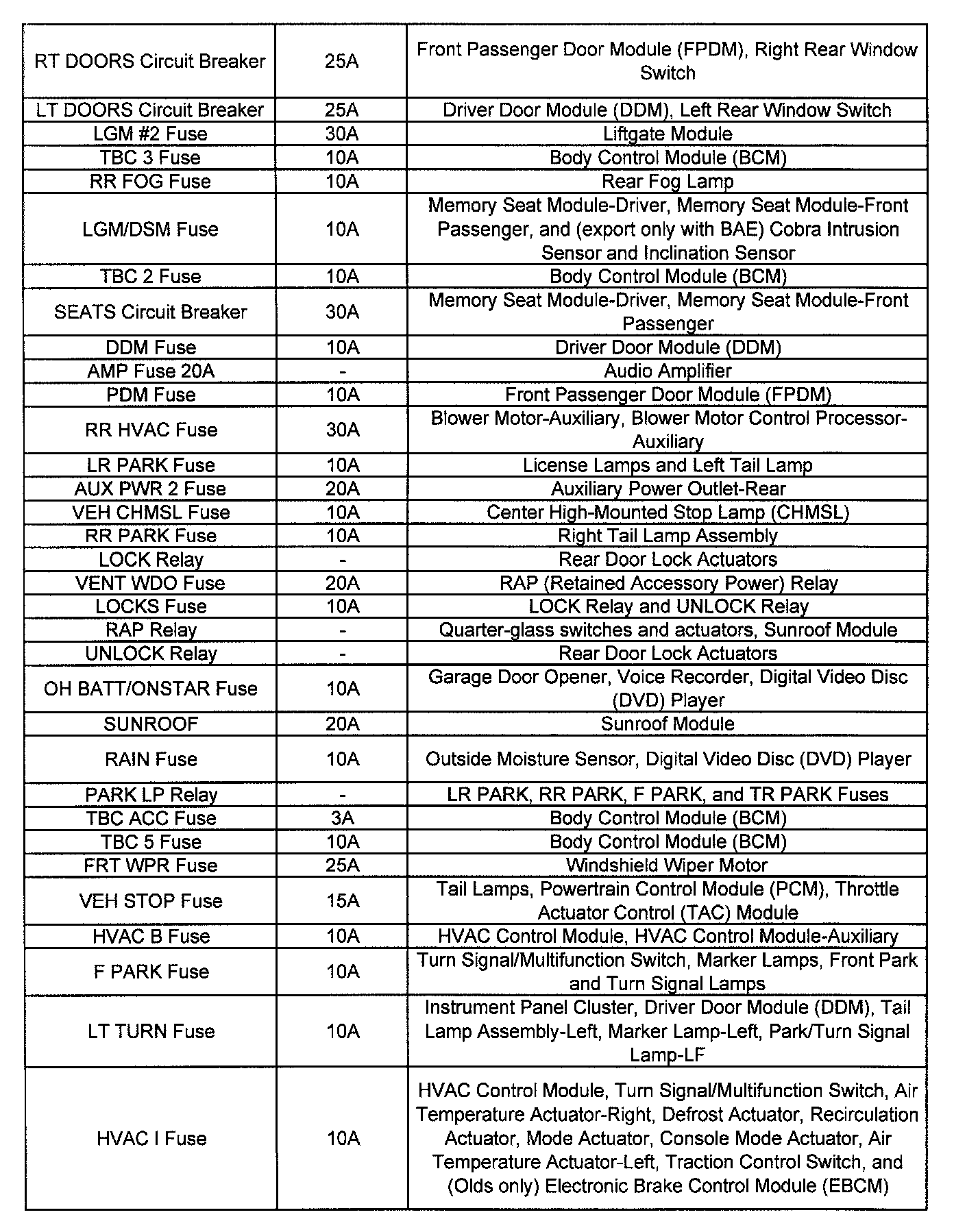

Part 1 Of 2:

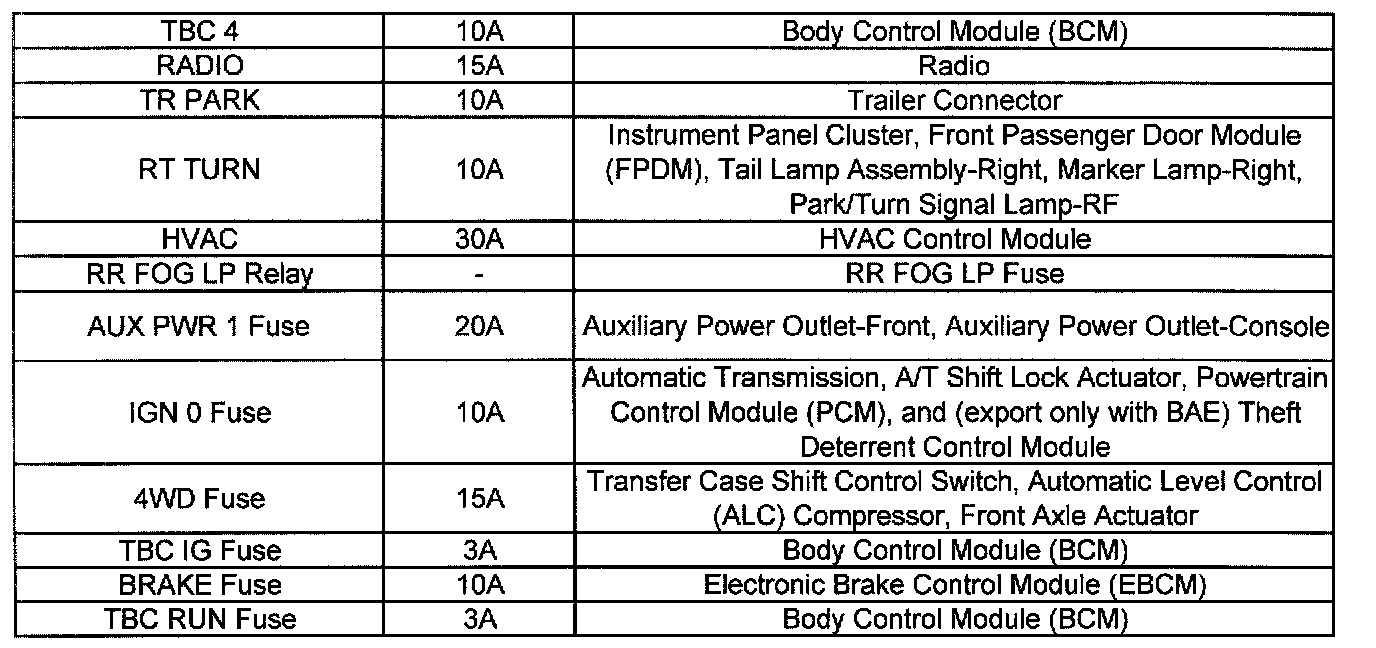

Part 2 Of 2:
