Air Bag Control Module: Locations

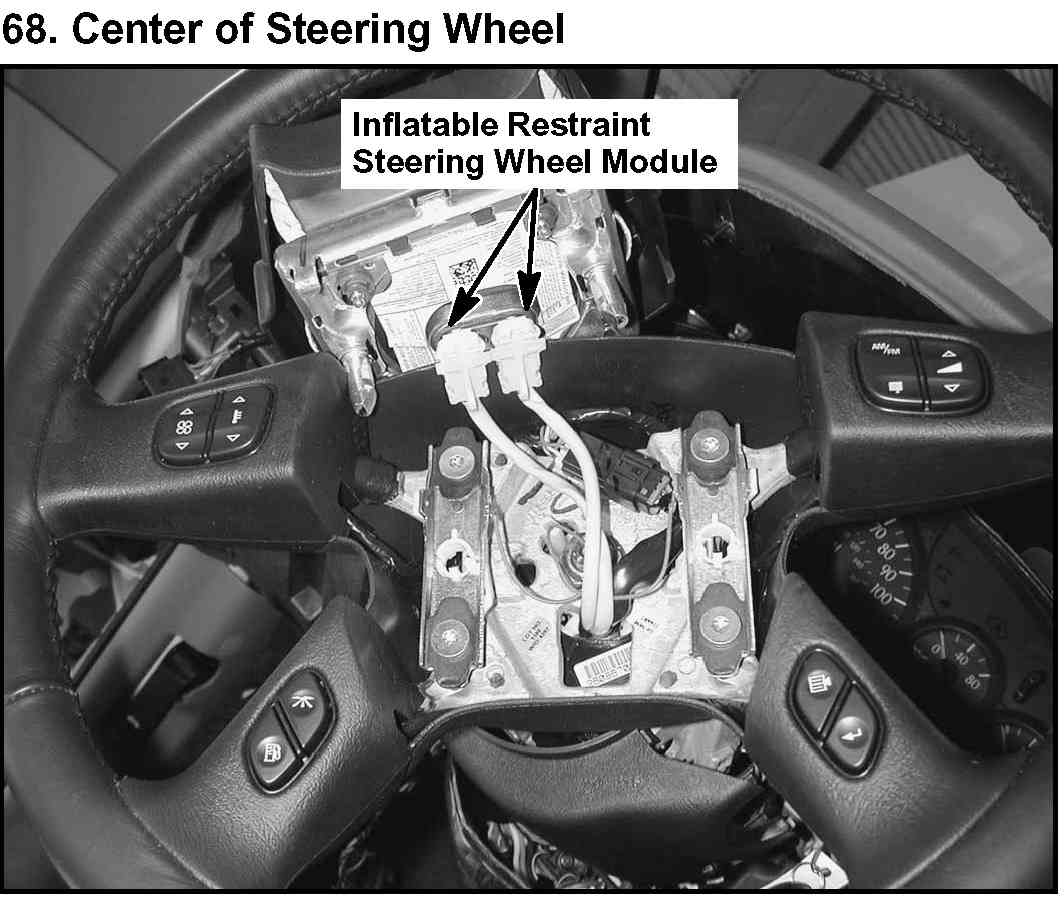

68. Center Of Steering Wheel:

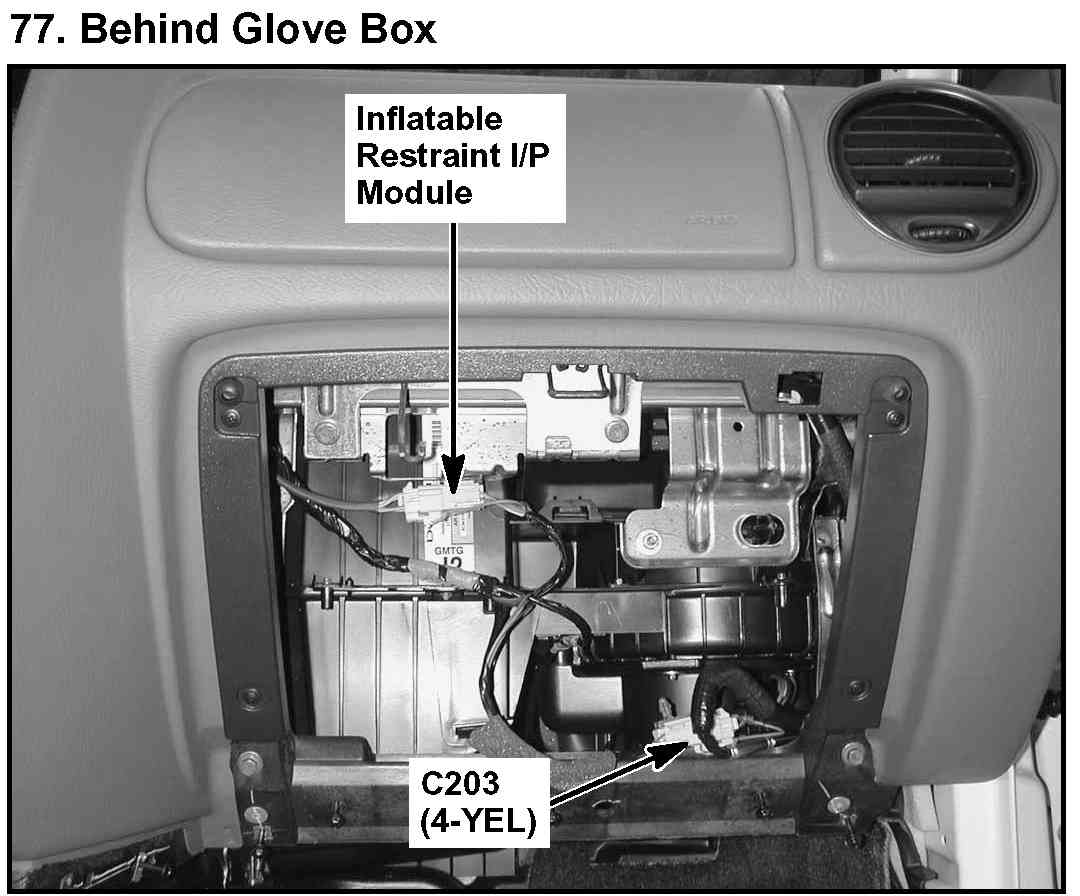

77. Behind Glove Box:

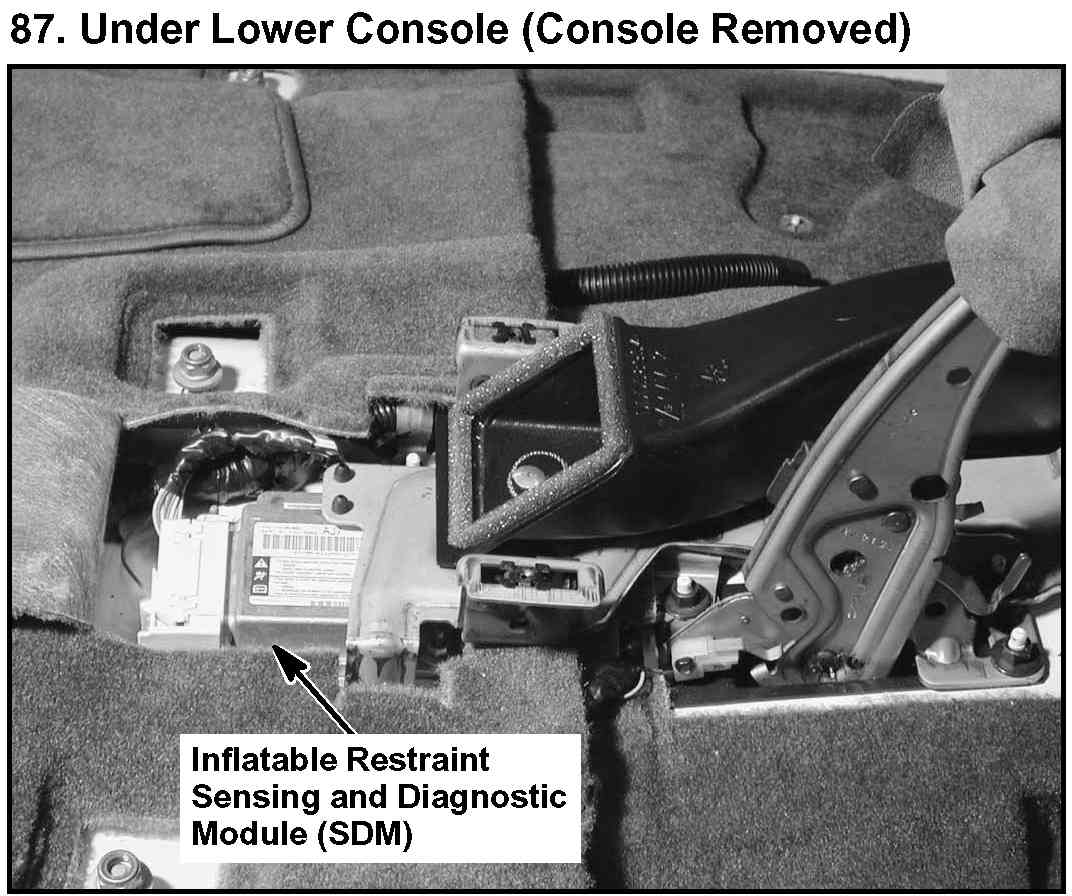

87. Under Lower Console (Console Removed):

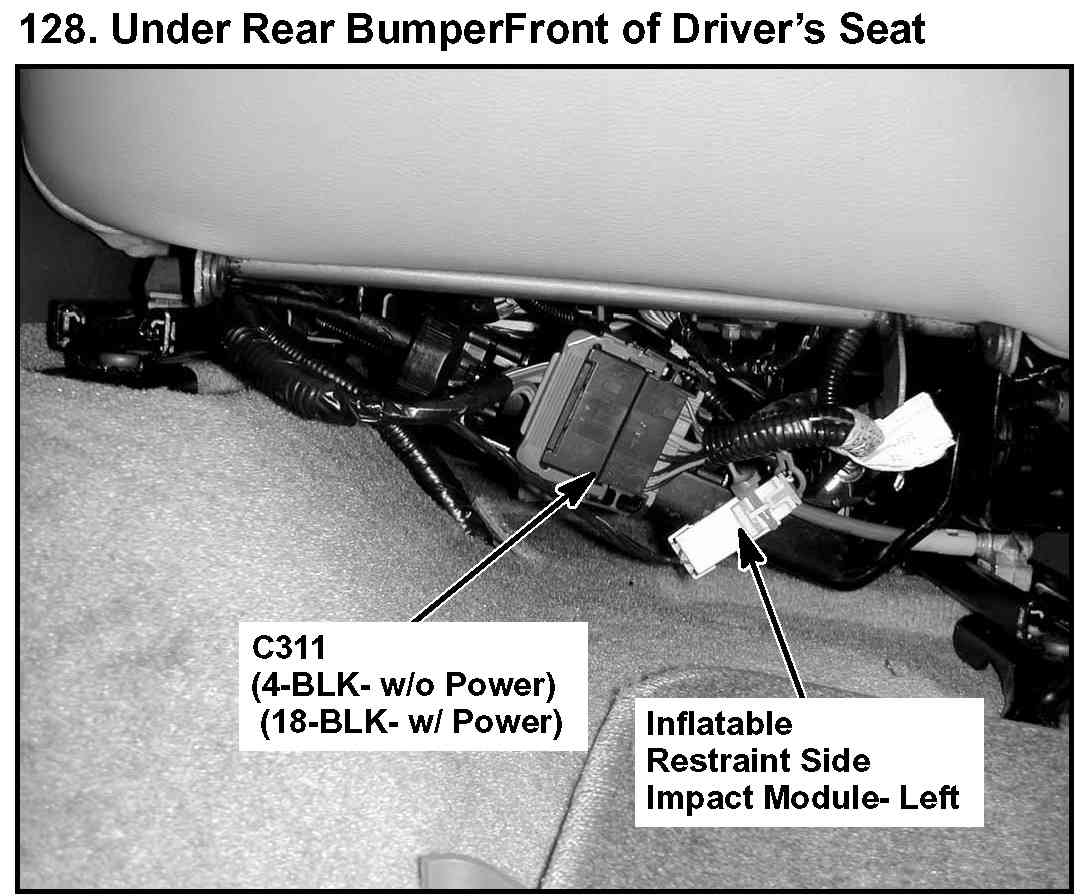

128. Under Rear BumperFront Of Driver's Seat:

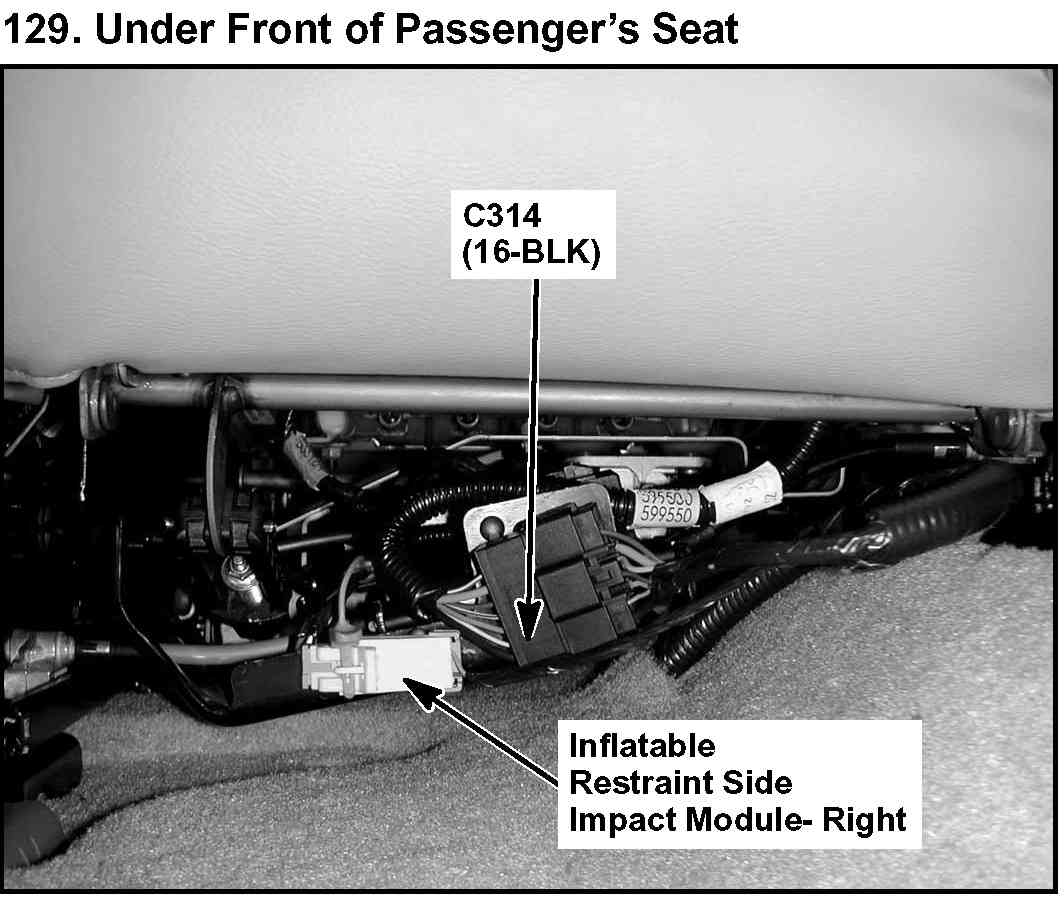

129. Under Front Of Passenger's Seat:
