Ignition Coil: Service and Repair

REMOVAL
1. Disconnect battery ground cable.

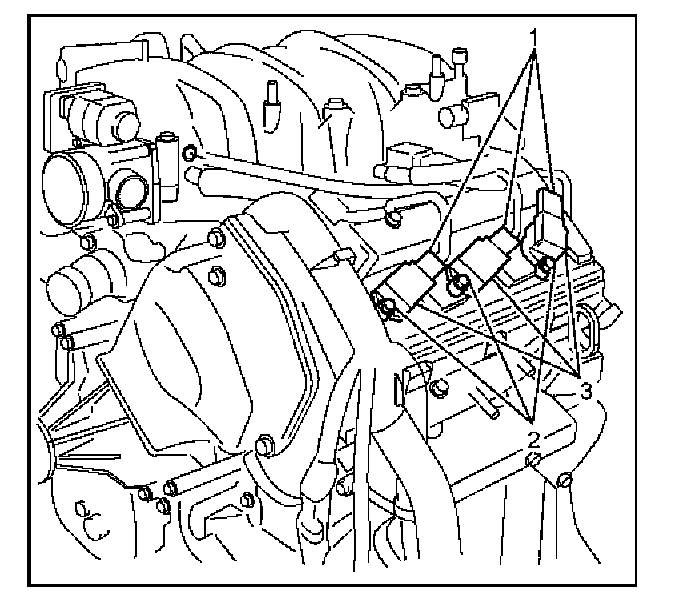

2. Ignition coil connector and ignition coil.
- Disconnect three connector from ignition coil.
- Remove harness bracket bolt on cylinder head cover.
- Remove fixing bolts on ignition coil.

INSTALLATION

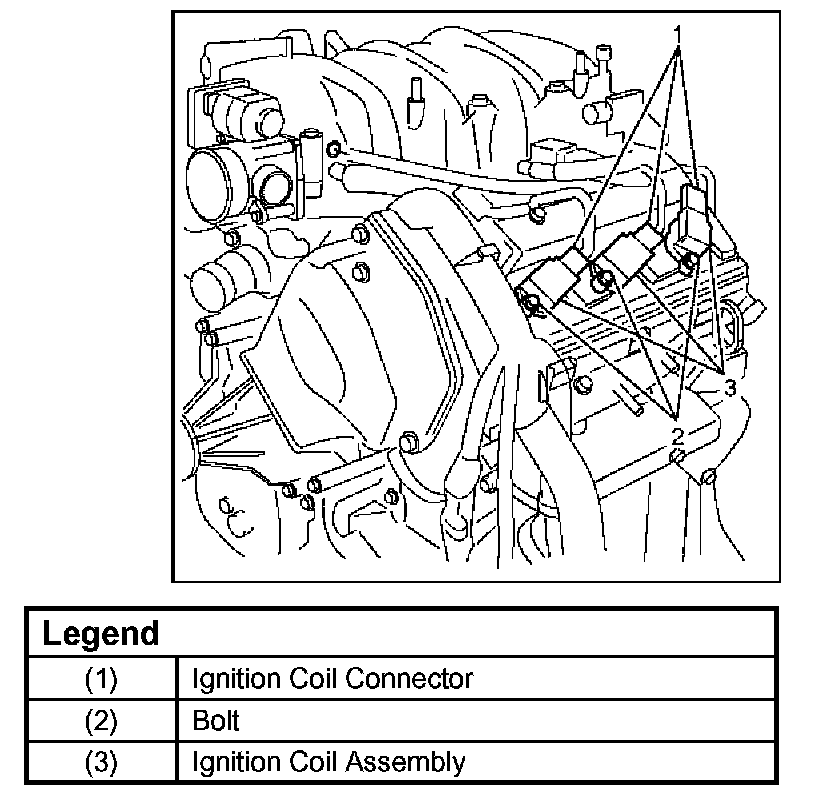

1. Install the ignition coil assembly (3).

Connect ignition coil connector (1) and ignition coil (3), then tighten bolt (2) to the specified torque.

Torque: 8 Nm (5.9 lb ft)




2. Connect battery ground cable.
