Front Planetary Gear: Reassembly

Coat the race and thrust bearing with petroleum jelly.

Install the race and bearing to the rear side of the front planetary gear.

RACE AND BEARING DIAMETER (REFERENCE)

	Inside	Outside
Bearing	35.5 mm (1.40 in)	47.7 mm (1.88 in)
Race	33.7 mm (1.33 in)	47.6 mm (1.87 in)

Fig 1: Installing Race & Bearing To Rear Side Of Front Planetary Gear

Courtesy of ISUZU MOTOR CO.

Turn over the planetary gear and install the race (metal).

Make sure that the lugs fit into the holes on the front planetary gear.

RACE DIAMETER (REFERENCE)

	Inside	Outside
Race	34.3 mm (1.35 in)	47.8 mm (1.88 in)

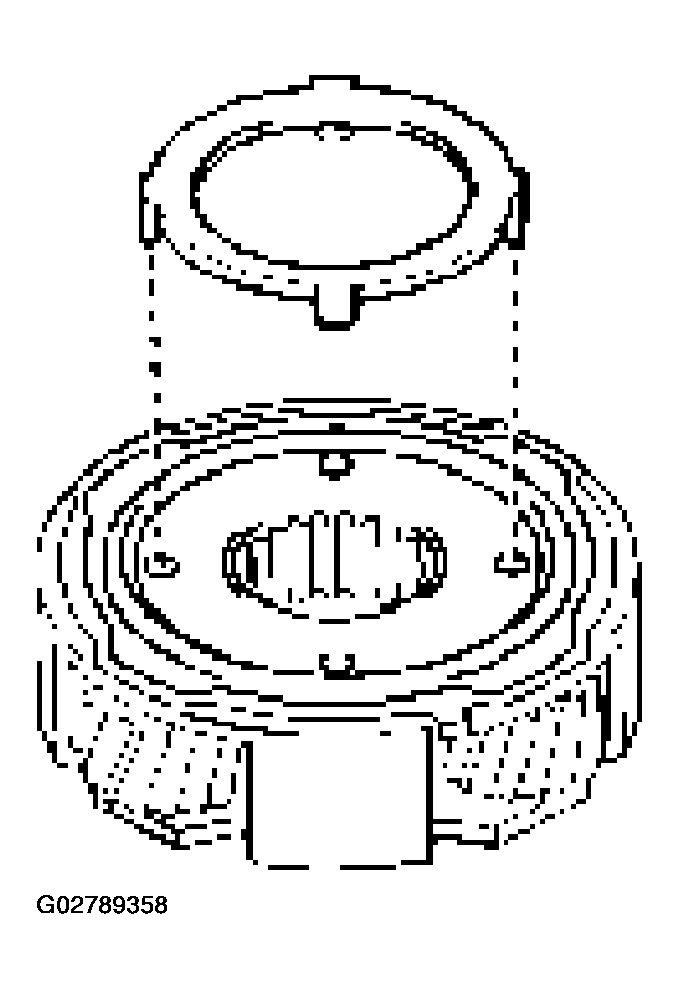

Fig 2: Making Sure Lugs Fit Into Holes On Front Planetary Gear

Courtesy of ISUZU MOTOR CO.

Coat the race and thrust bearing with petroleum jelly.

Install the race and bearing onto the rear side of the front planetary ring gear.

RACE AND BEARING DIAMETER (REFERENCE)

	Inside	Outside
Race	35.2 mm (1.39 in)	53.63 mm (2.11 in)
Bearing	35.2 mm (1.39 in)	53.63 mm (2.11 in)

Fig 3: Installing Race & Bearing Onto Rear Side Of Front Planetary Ring Gear

Courtesy of ISUZU MOTOR CO.

Turn over the planetary ring gear and install the race onto the front side of the front planetary ring gear.

Race diameter (Reference)

RACE DIAMETER (REFERENCE)

	Inside	Outside
Race	26.8 mm (1.06 in)	47.0 mm (1.85 in)

Fig 4: Installing Race Onto Front Side Of Front Planetary Ring Gear

Courtesy of ISUZU MOTOR CO.
