Transfer Position and Drive Mode: Notes

Three drive modes can be selected through operation of TOD switch and transfer lever.

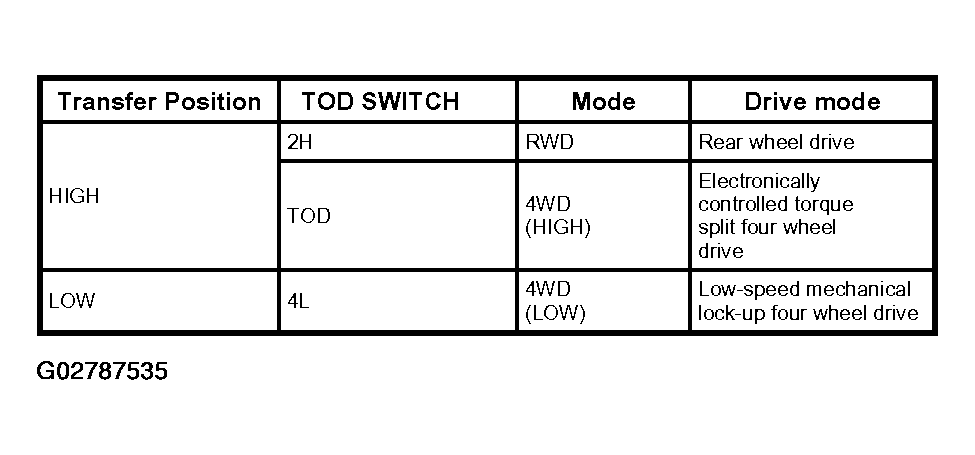

Fig 1: Transfer Position And Drive Mode Chart

Courtesy of ISUZU MOTOR CO.

The electronic control unit (ECU) judges the signals from the TOD switch and controls the transfer drive mode.
