DTC Information Mode: Notes

Use the DTC info mode to search for a specific type of stored DTC information. There are six choices. The service information may instruct the technician to test for DTCs in a certain manner. Always follow published service procedures.

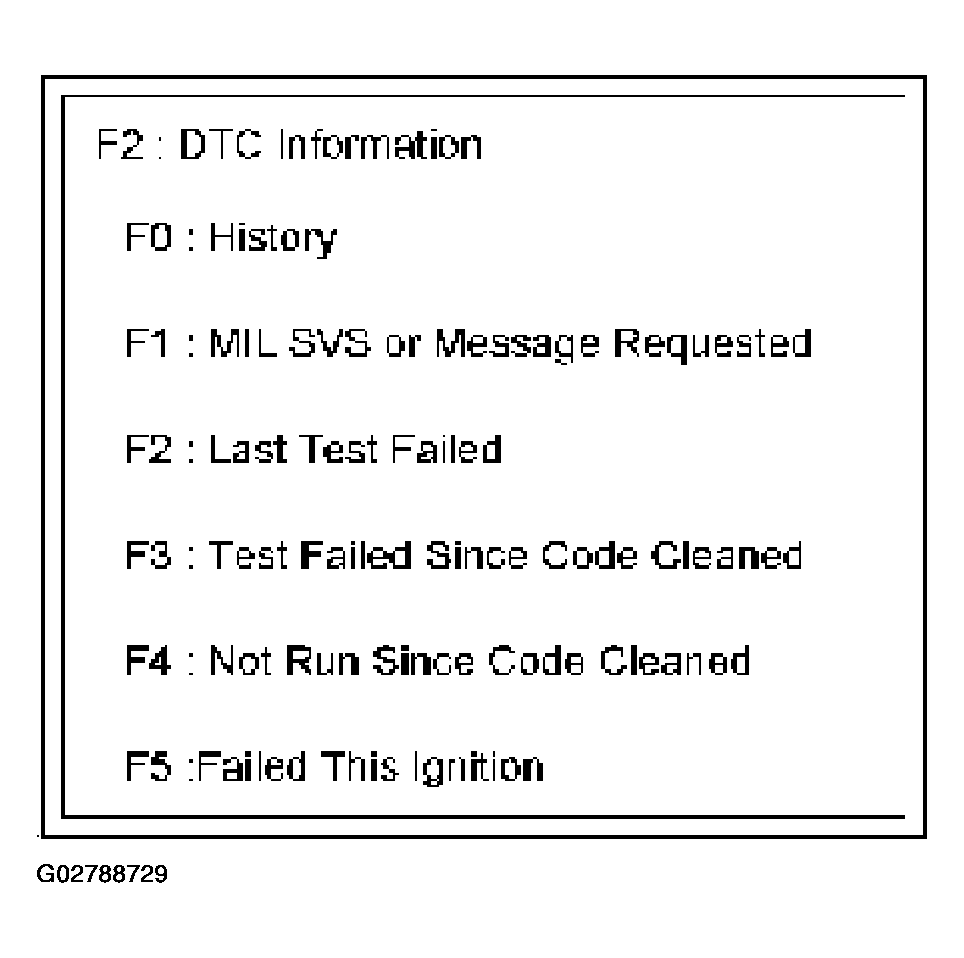

Fig 1: DTC Information Mode Display
G02788729Courtesy of ISUZU MOTOR CO.
