Electronic Hydraulic Control Unit: Removal

  1. Remove brake pipes.
    • After disconnecting brake pipe, cap or tape the openings of the brake pipe to prevent the entry of foreign matter.
  2. Remove three bracket fixing bolts.
  3. Disconnect red clip from harness connector.
    NOTE: In case a cap (red clip) is removed, there is a possibility of damaging a cap. The damaged cap must not use if for safety. Please exchange with new cap.

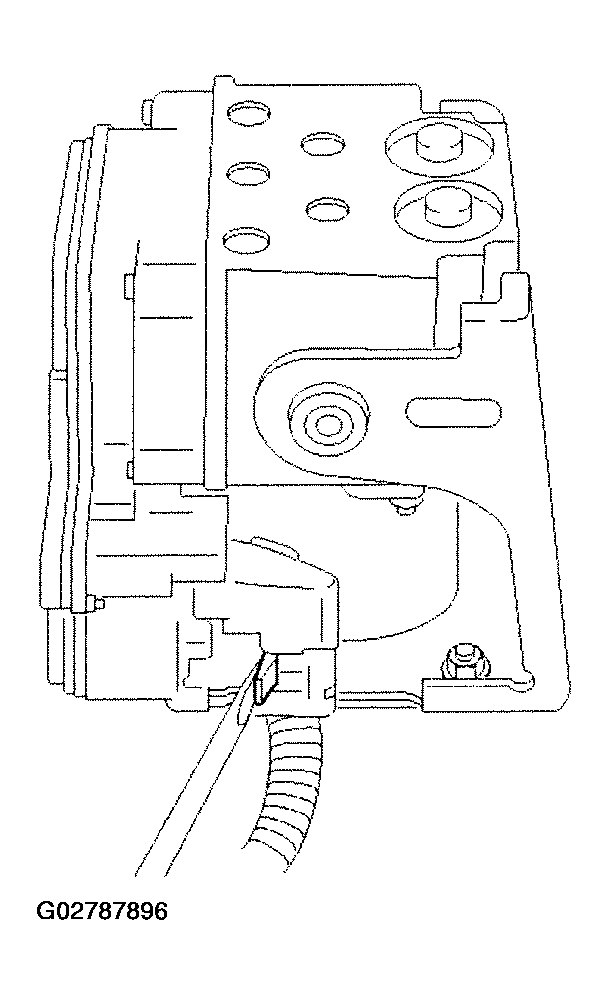

    Fig 1: Disconnecting Red Clip From Harness Connector
    G02787896Courtesy of ISUZU MOTOR CO.
  4. Remove harness connector.
  5. Remove EHCU ASM.
  6. Remove EHCU.
