Circuit Diagram

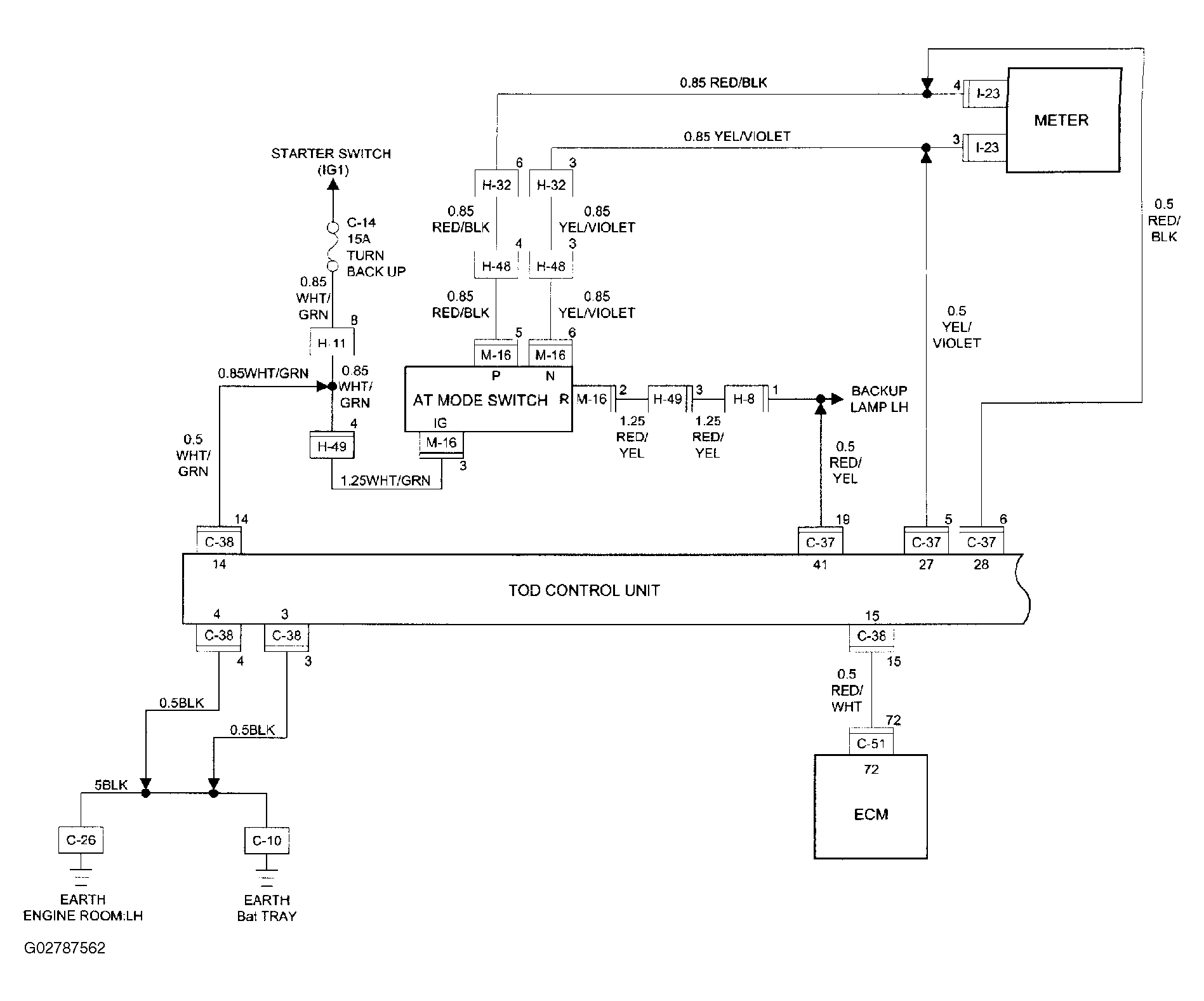

Fig 1: TOD Control Unit Circuit Diagram (1 Of 4)
G02787562Courtesy of ISUZU MOTOR CO.

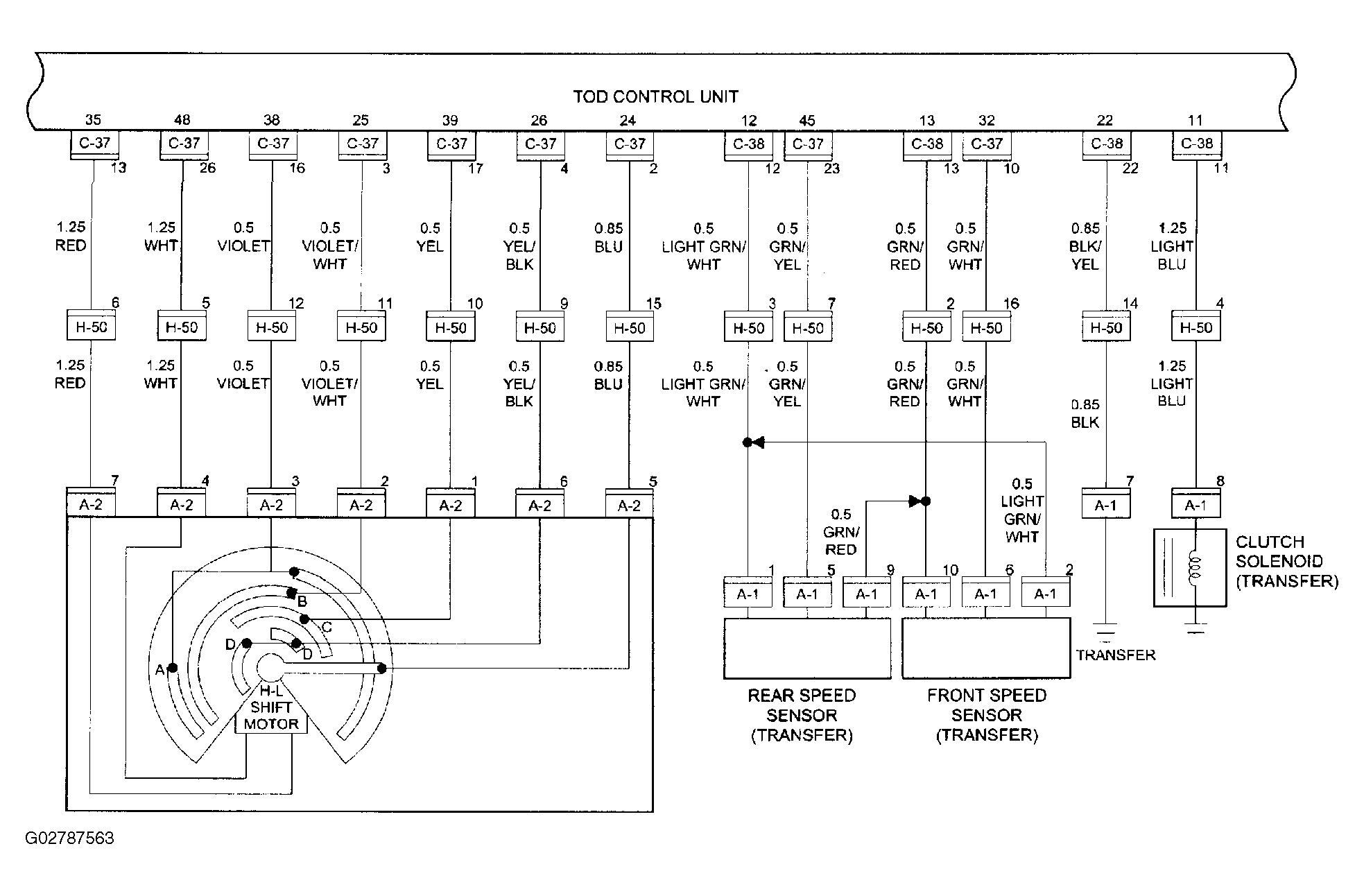

Fig 2: TOD Control Unit Circuit Diagram (2 Of 4)
G02787563Courtesy of ISUZU MOTOR CO.

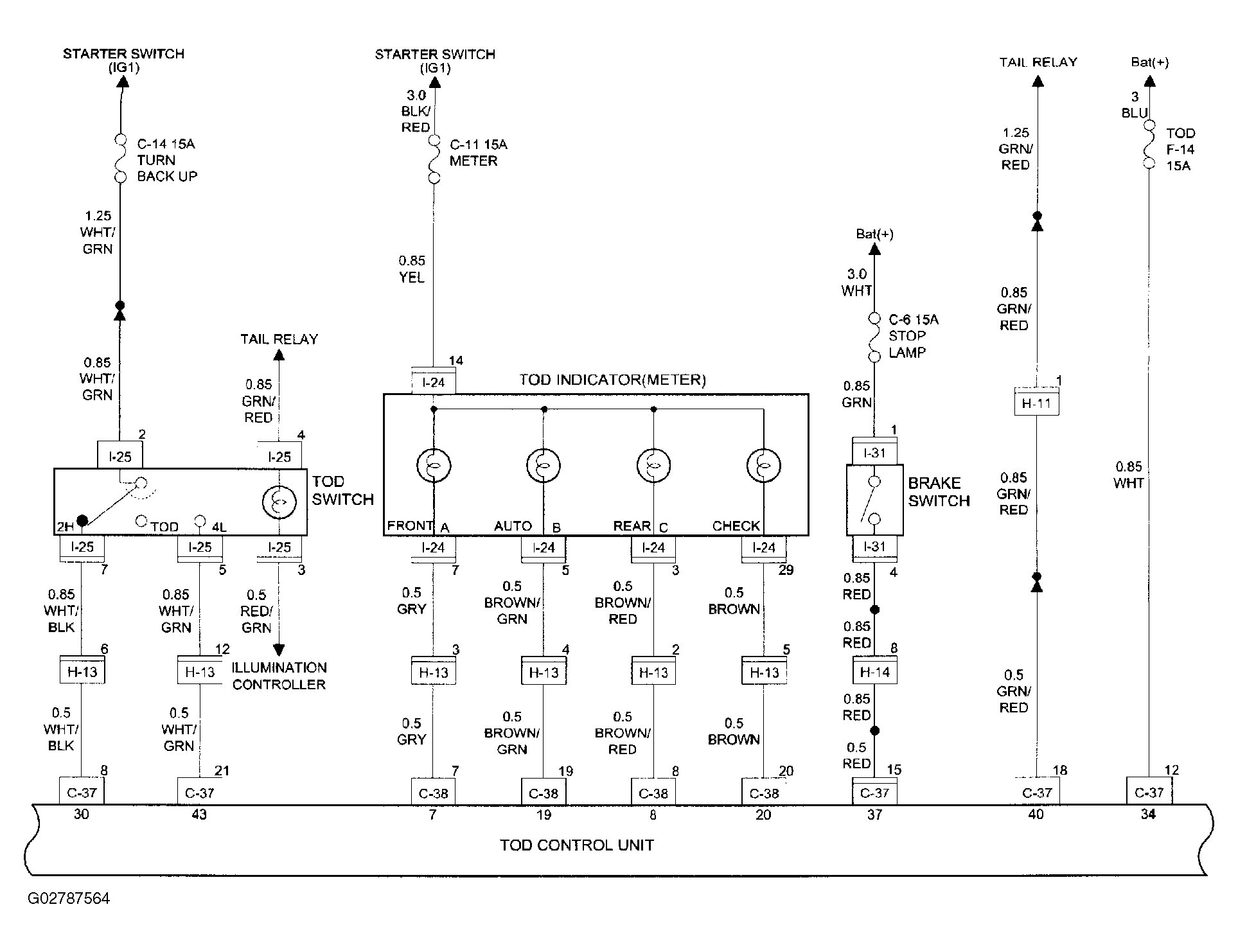

Fig 3: TOD Control Unit Circuit Diagram (3 Of 4)
G02787564Courtesy of ISUZU MOTOR CO.

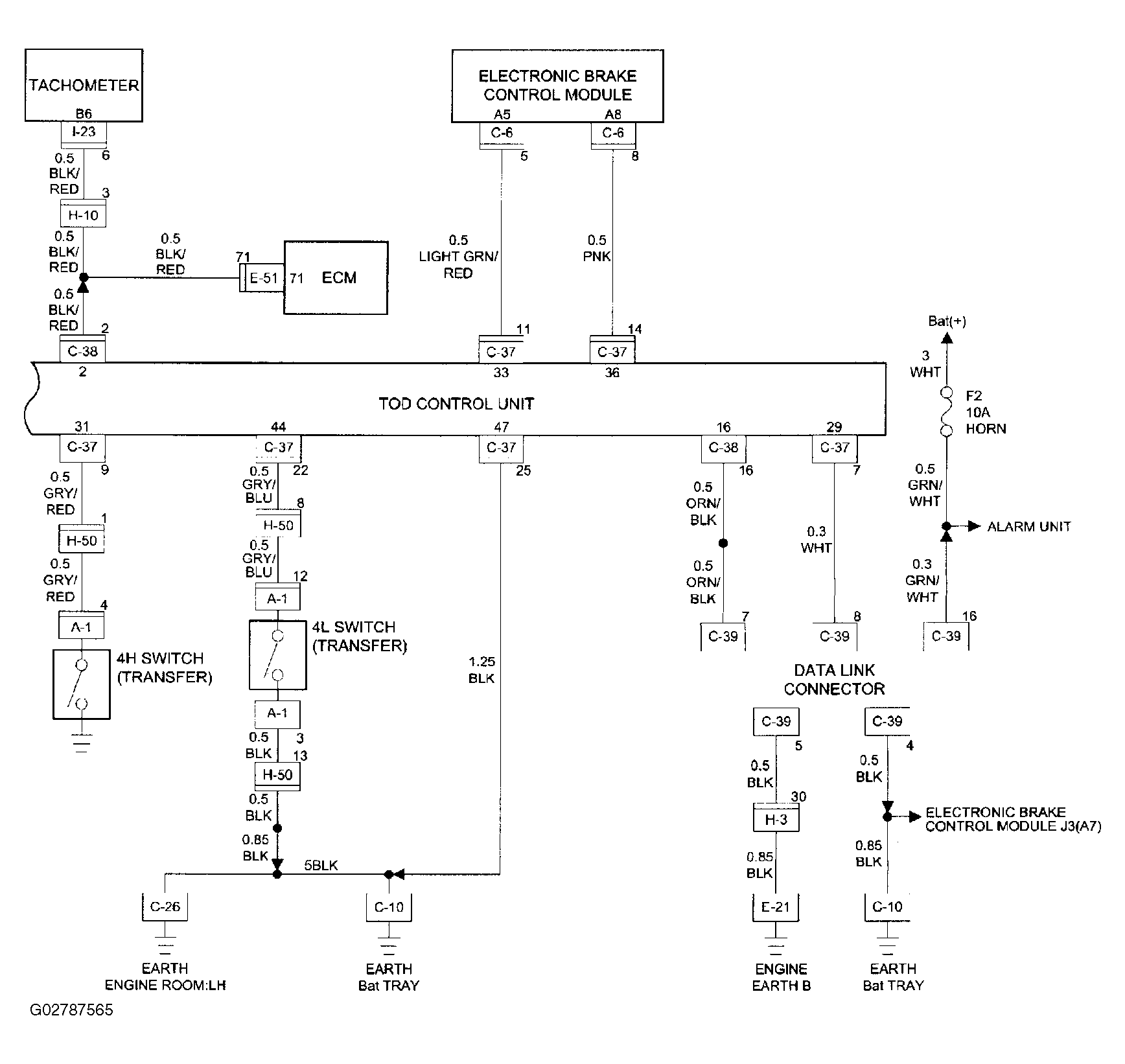

Fig 4: TOD Control Unit Circuit Diagram (4 Of 4)
G02787565Courtesy of ISUZU MOTOR CO.
