Special Tools

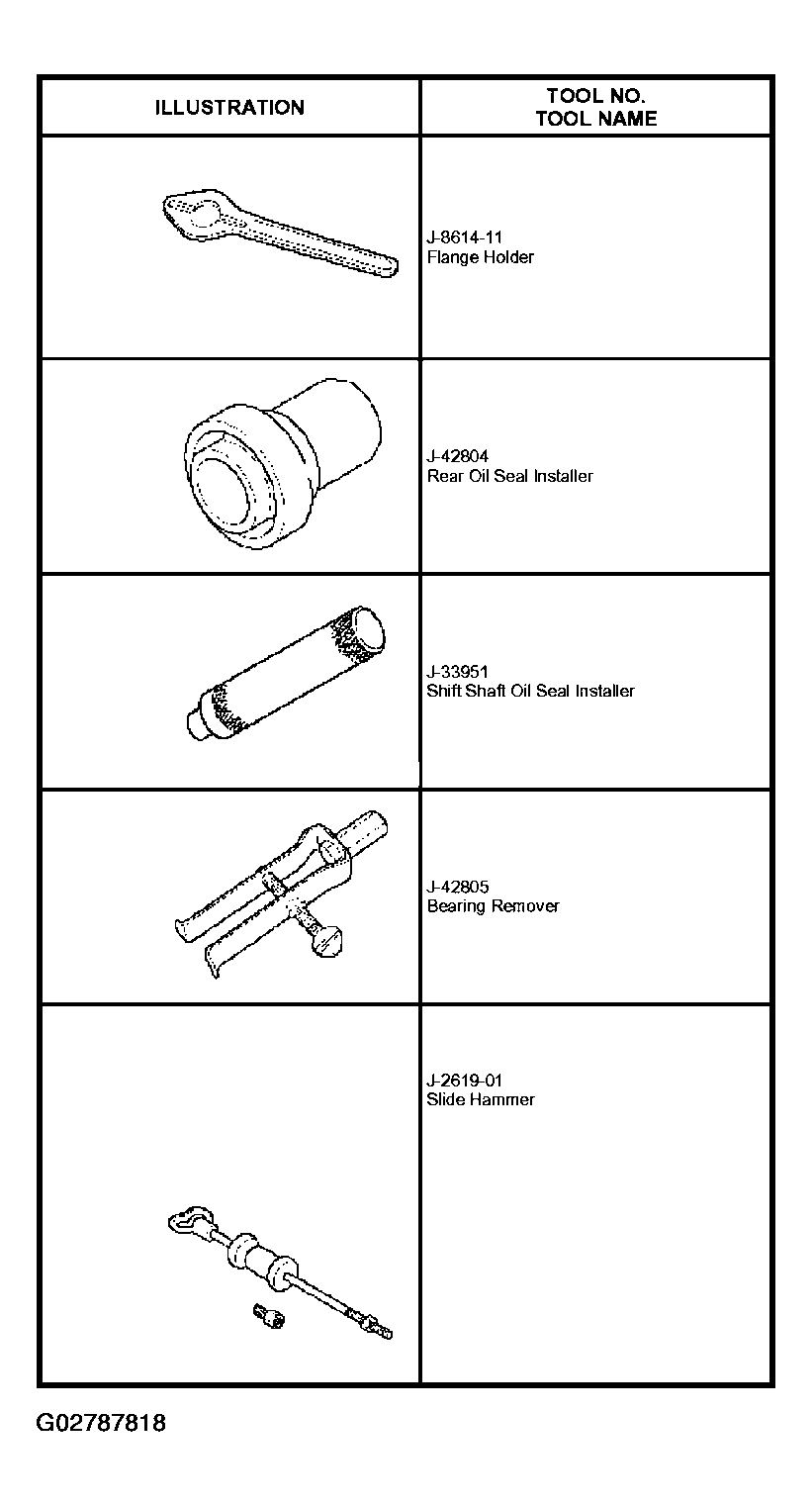

Fig 1: Identifying Special Tools (1 Of 2)
G02787818Courtesy of ISUZU MOTOR CO.

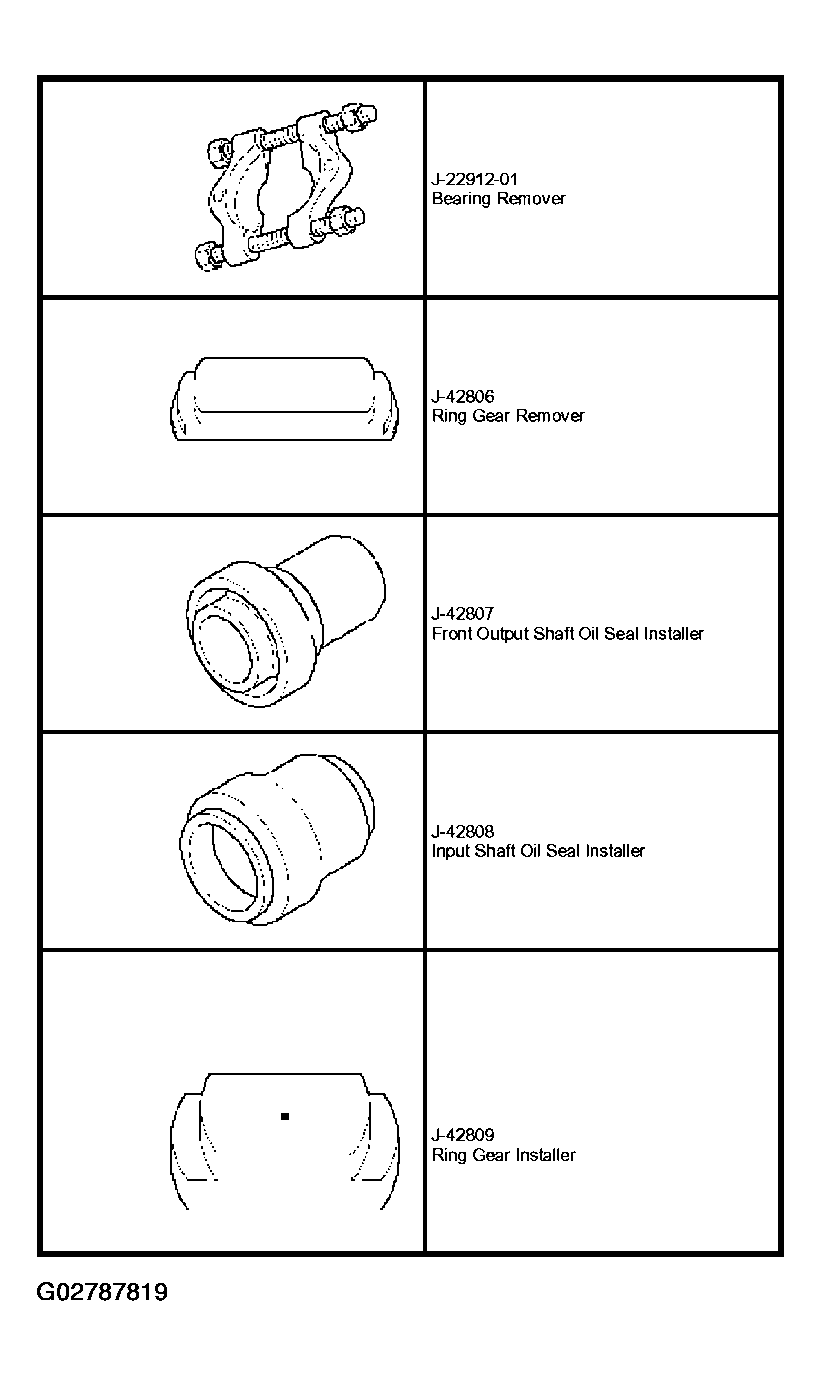

Fig 2: Identifying Special Tools (2 Of 2)
G02787819Courtesy of ISUZU MOTOR CO.
