Sunroof / Moonroof Module: Service and Repair

Removal

1. Disconnect the battery ground cable.




2. Remove the headlining (2).
- Refer to Headlining (LWB) or Headlining (SWB) in Exterior/Interior Trim.

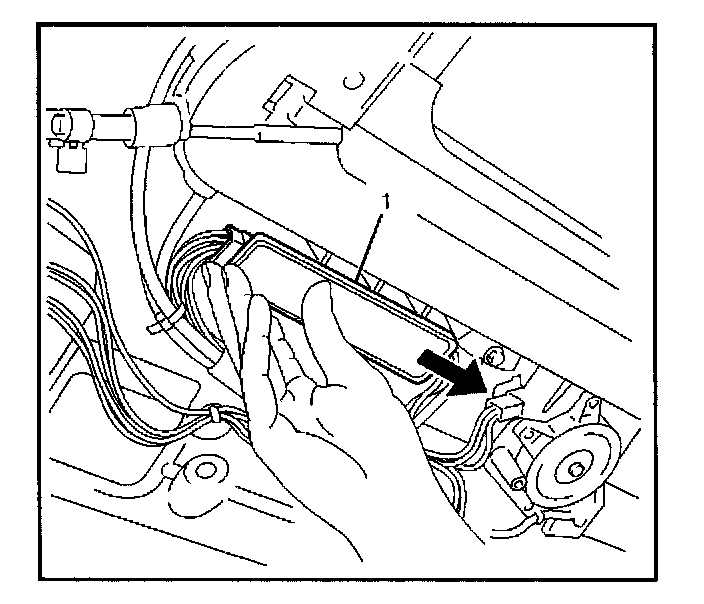

3. Remove the sun roof control unit (1).
- Disconnect two connectors.
- Remove the control unit after making it slide in the direction of an arrow.

Installation

To install, follow the removal steps in the reverse order.
