Installation Procedure

  1. Install the ECM to bracket and fix with the clip.

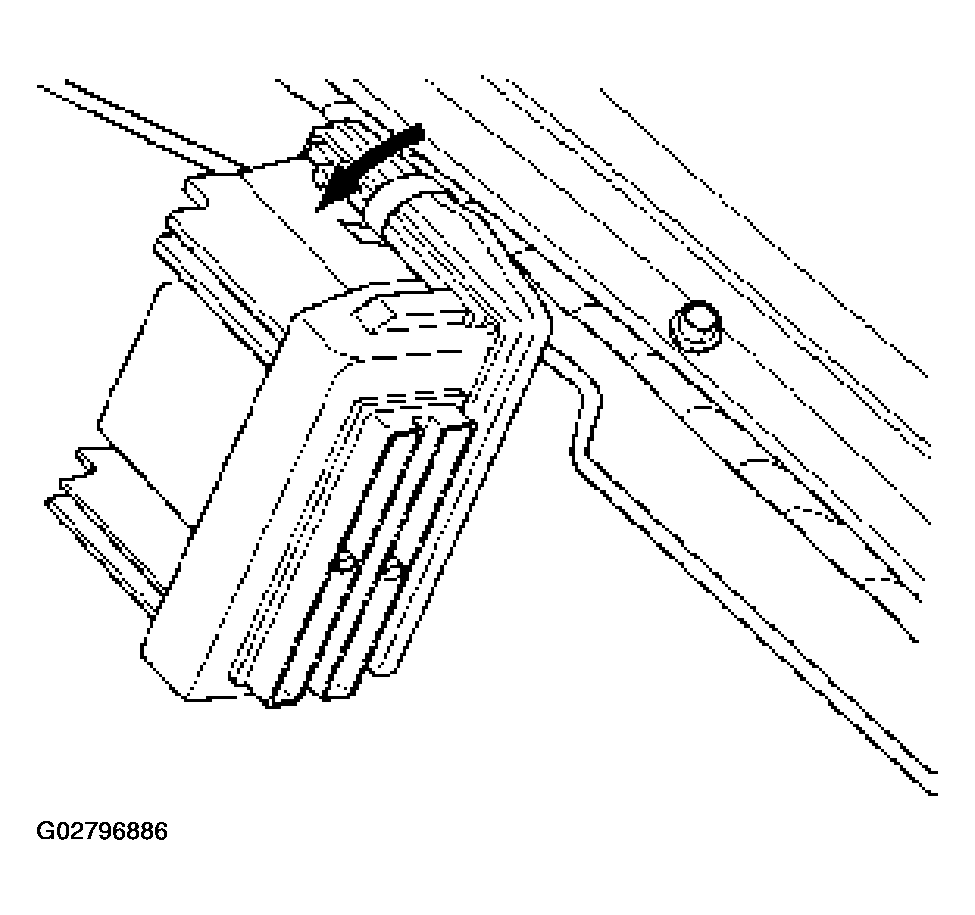

    Fig 1: Installing ECM
    G02796886Courtesy of ISUZU MOTOR CO.
  2. Connect the ECM electrical connectors.
  3. Install the two screws to ECM electrical connectors.

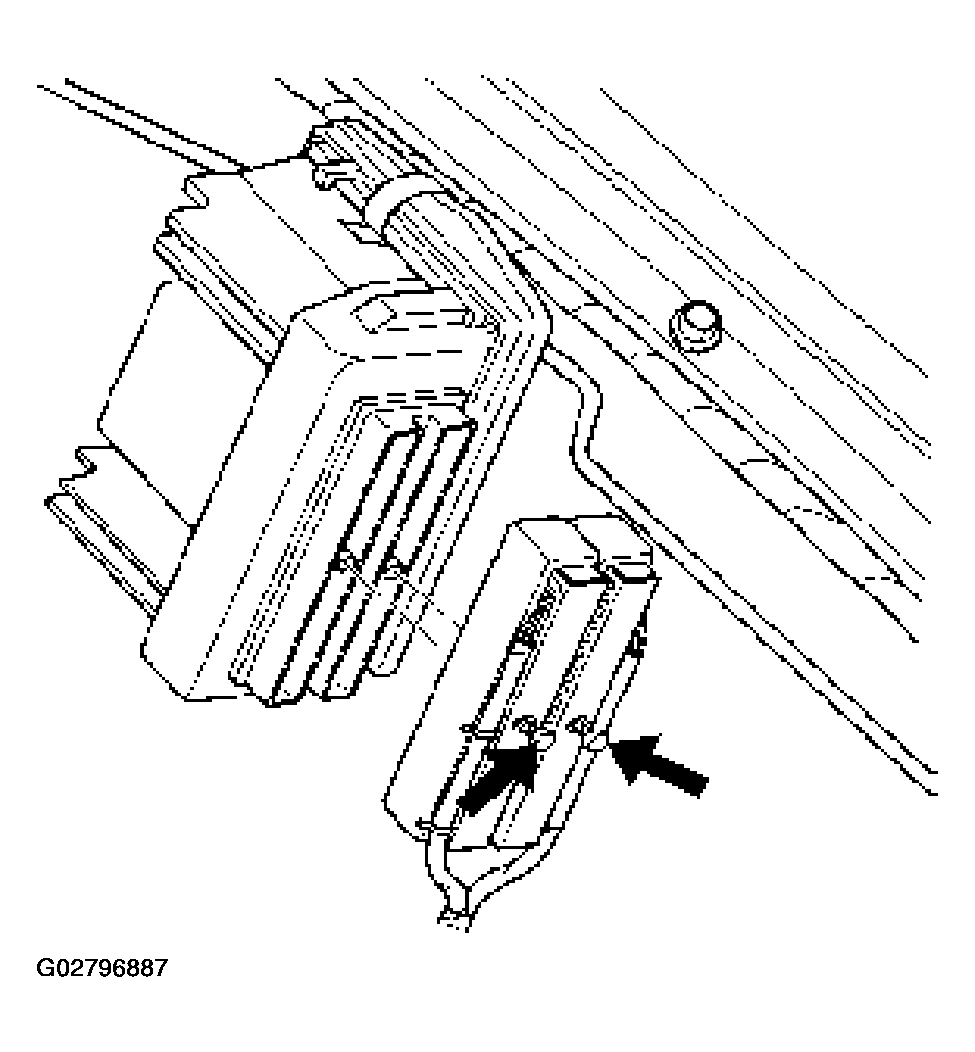

    Fig 2: Installing Screws To ECM Electrical Connectors
    G02796887Courtesy of ISUZU MOTOR CO.
