Diode: Specifications

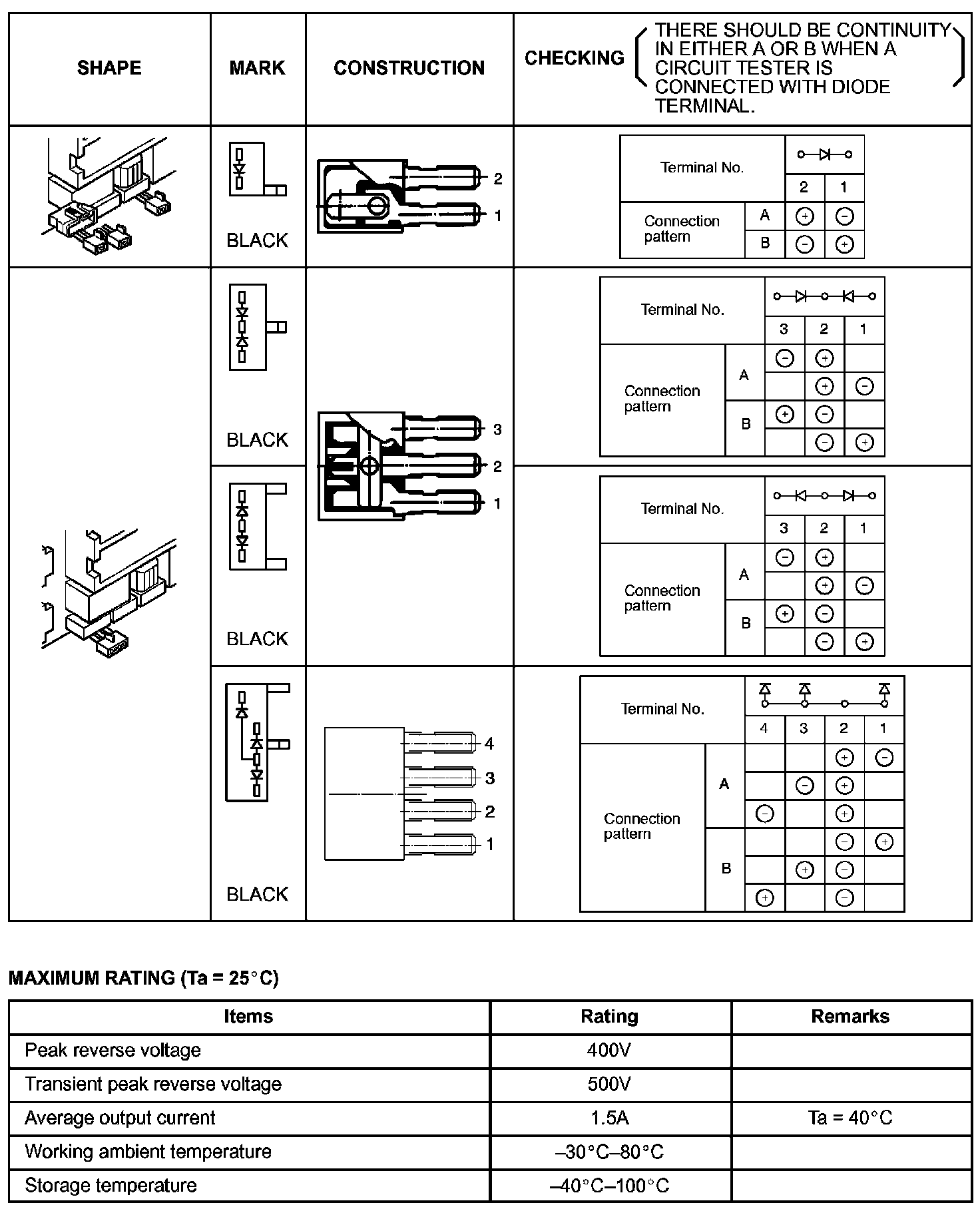

Diode Specifications And Configurations:
Diode Specifications and Configurations:
