Speed Sensor: Locations

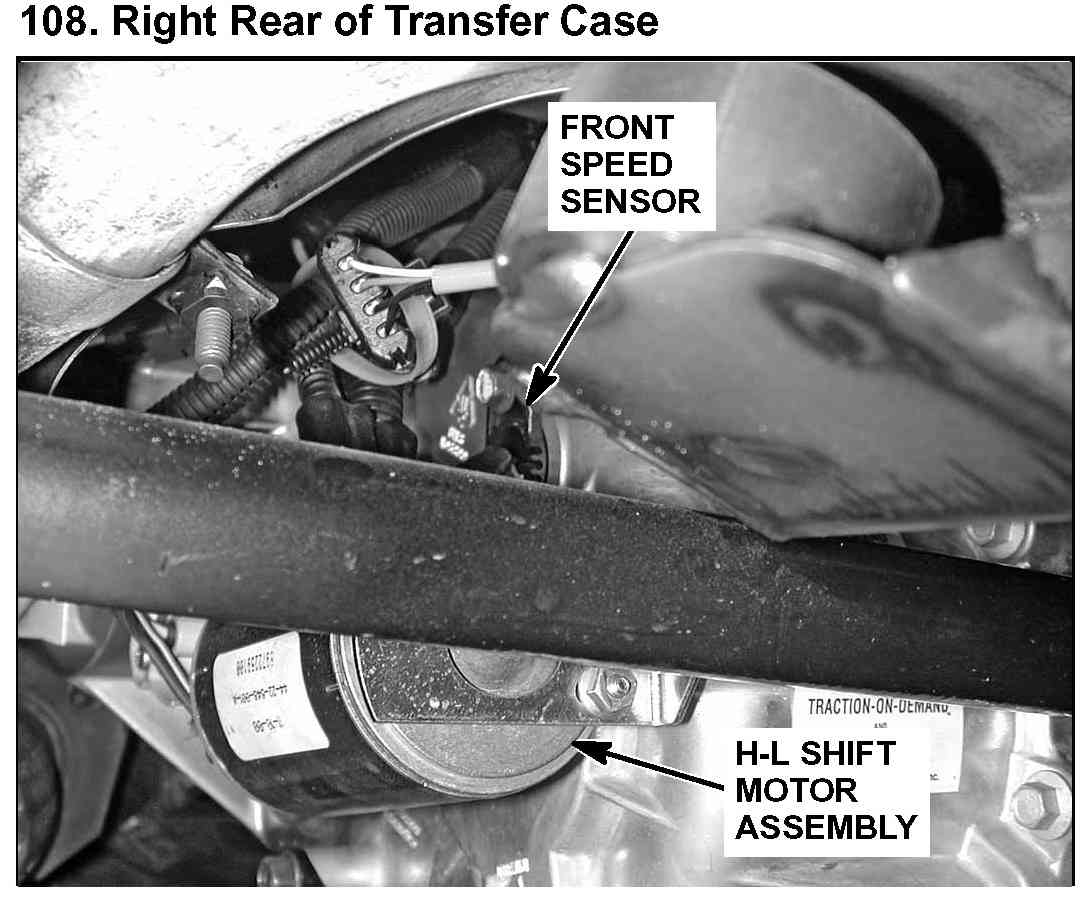

108. Right Rear of Transfer Case:

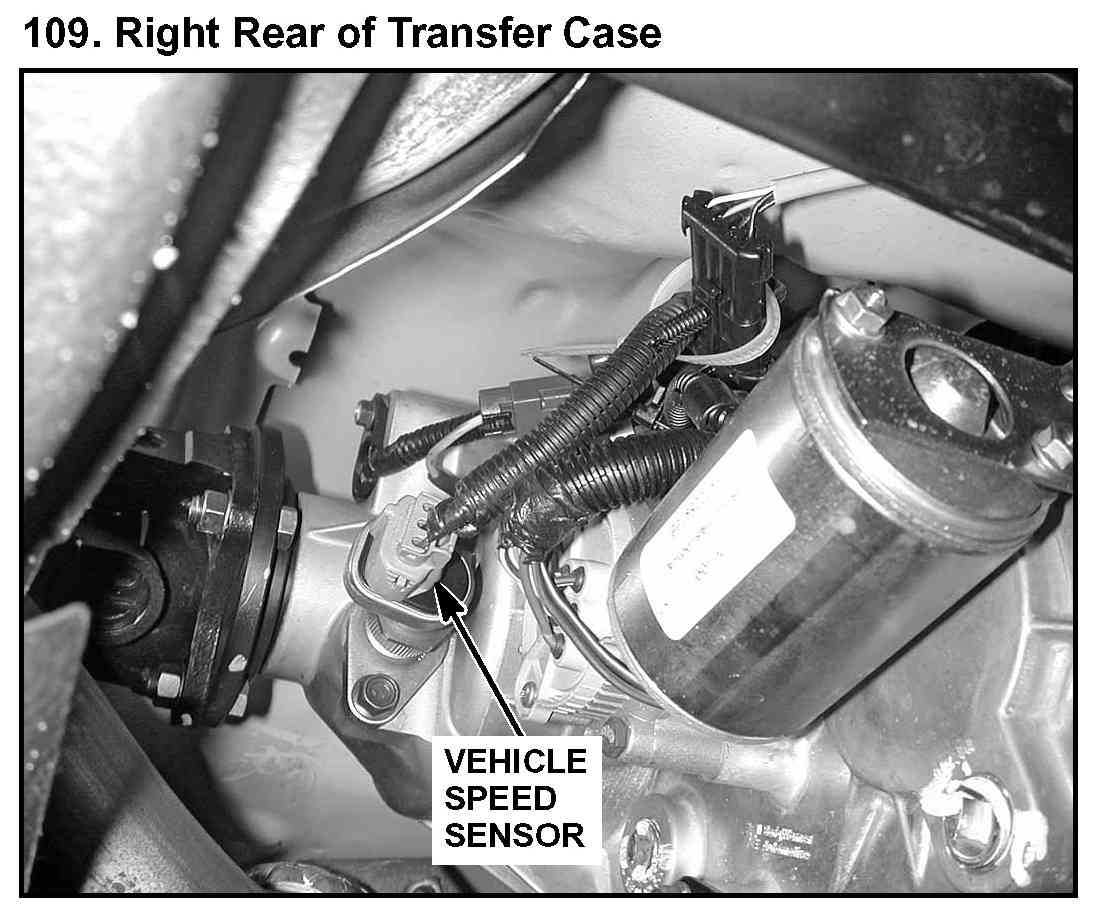

109. Right Rear of Transfer Case:

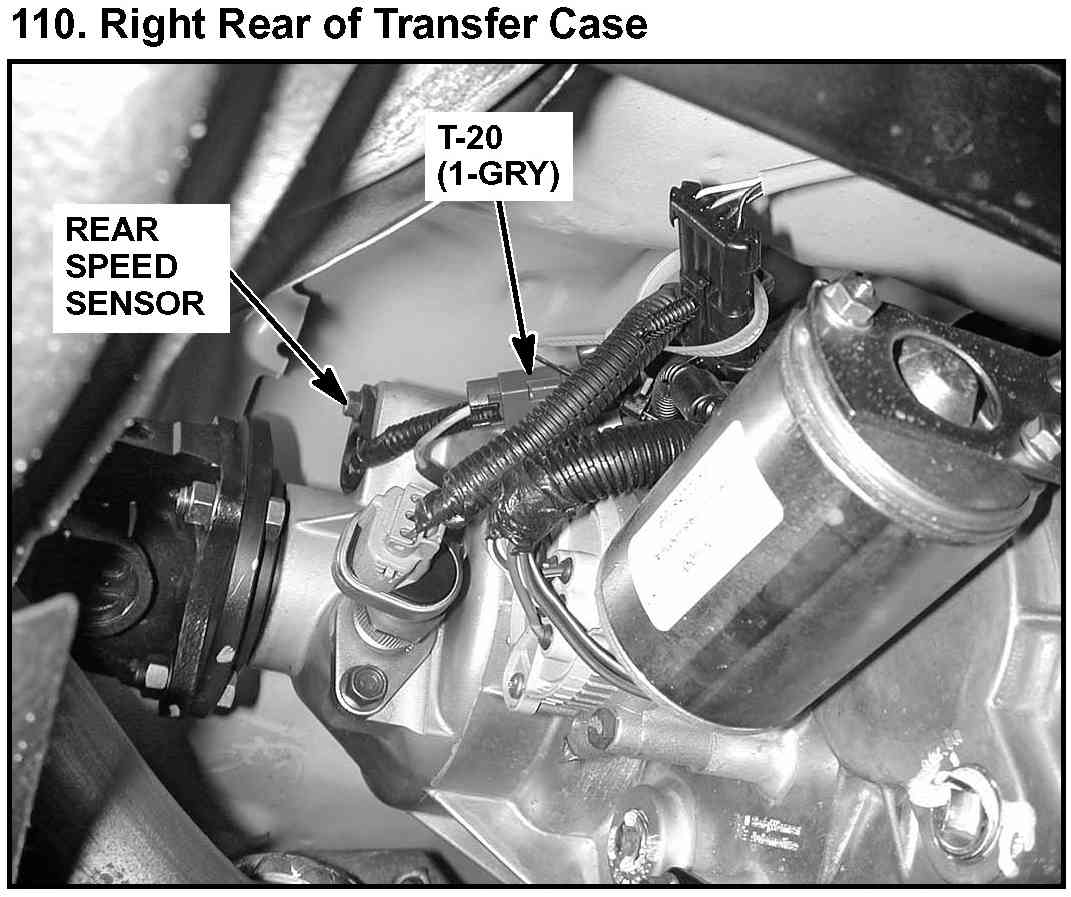

110. Right Rear of Transfer Case:
