Engine Control Module: Locations

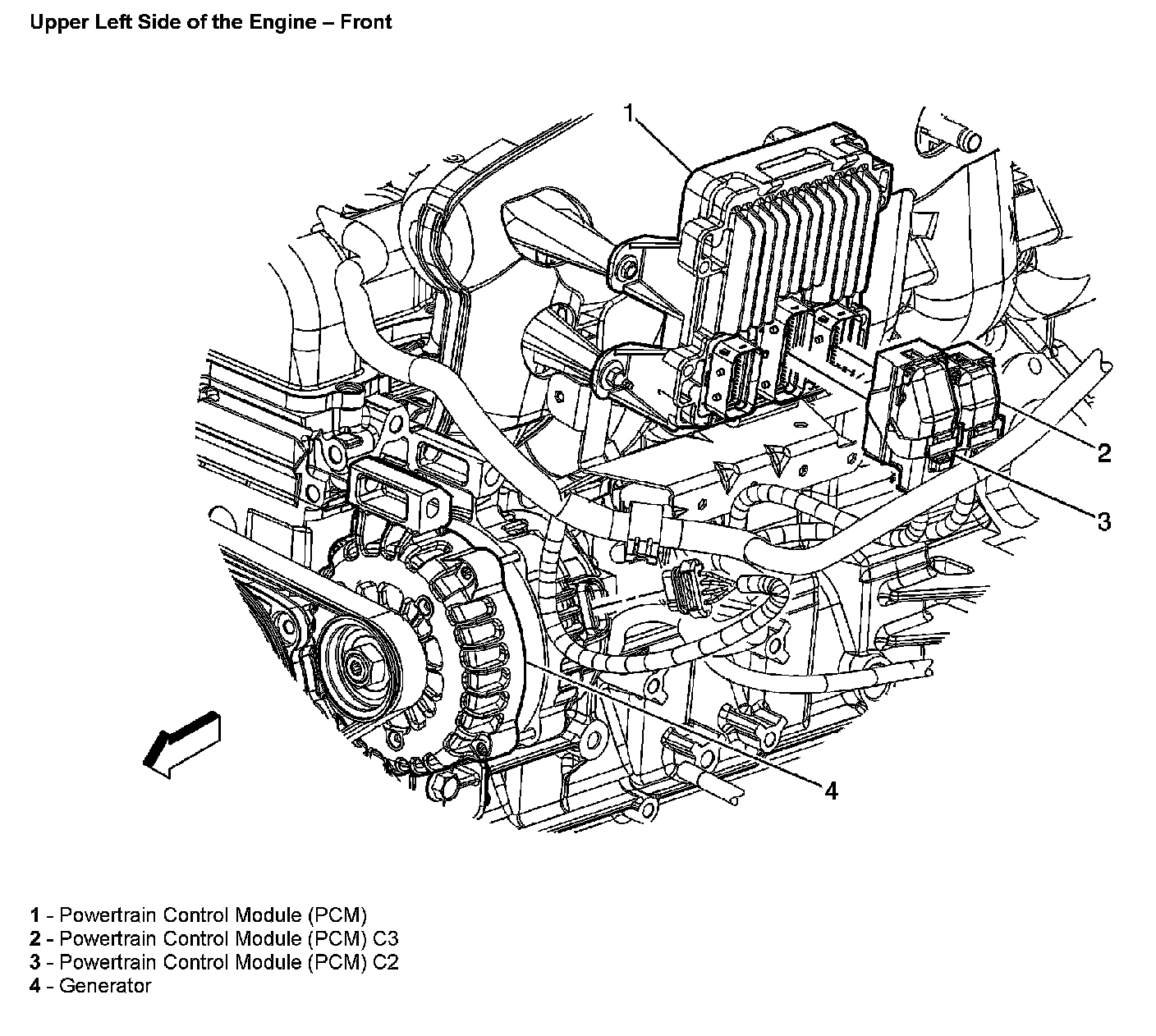

Upper Left Side Of The Engine - Front:

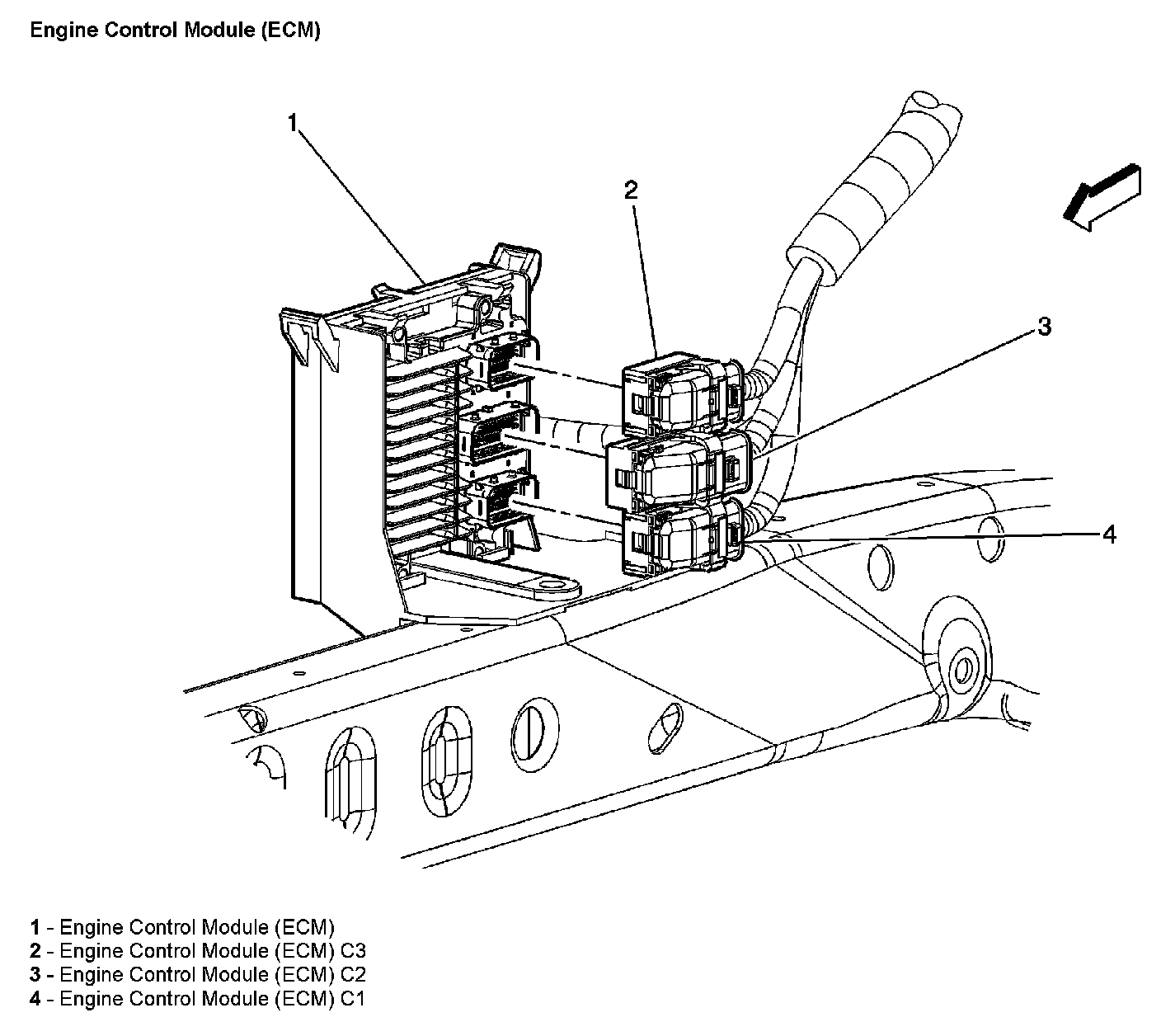

Engine Control Module (ECM):
