Relay Box: Application and ID

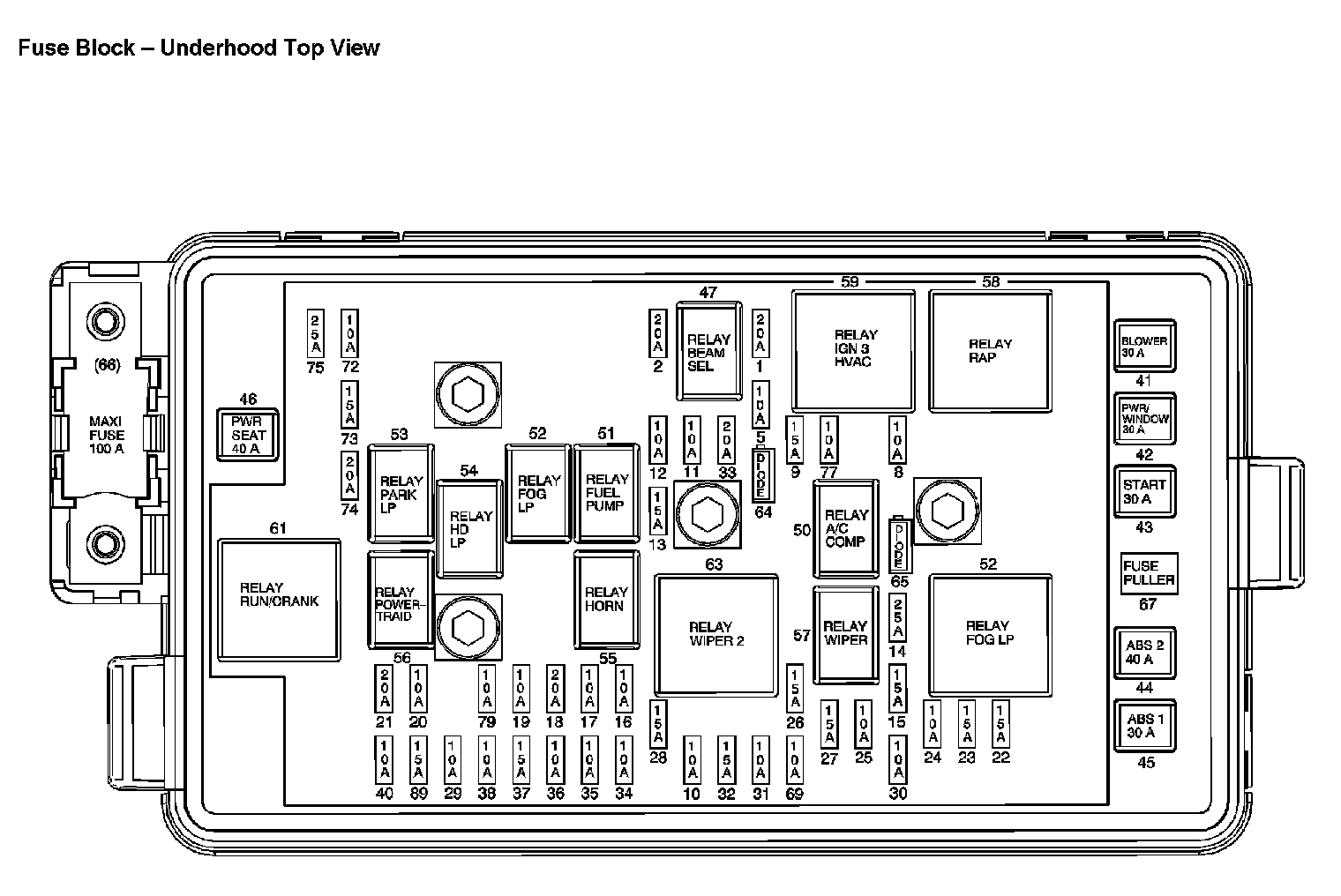

Location View:

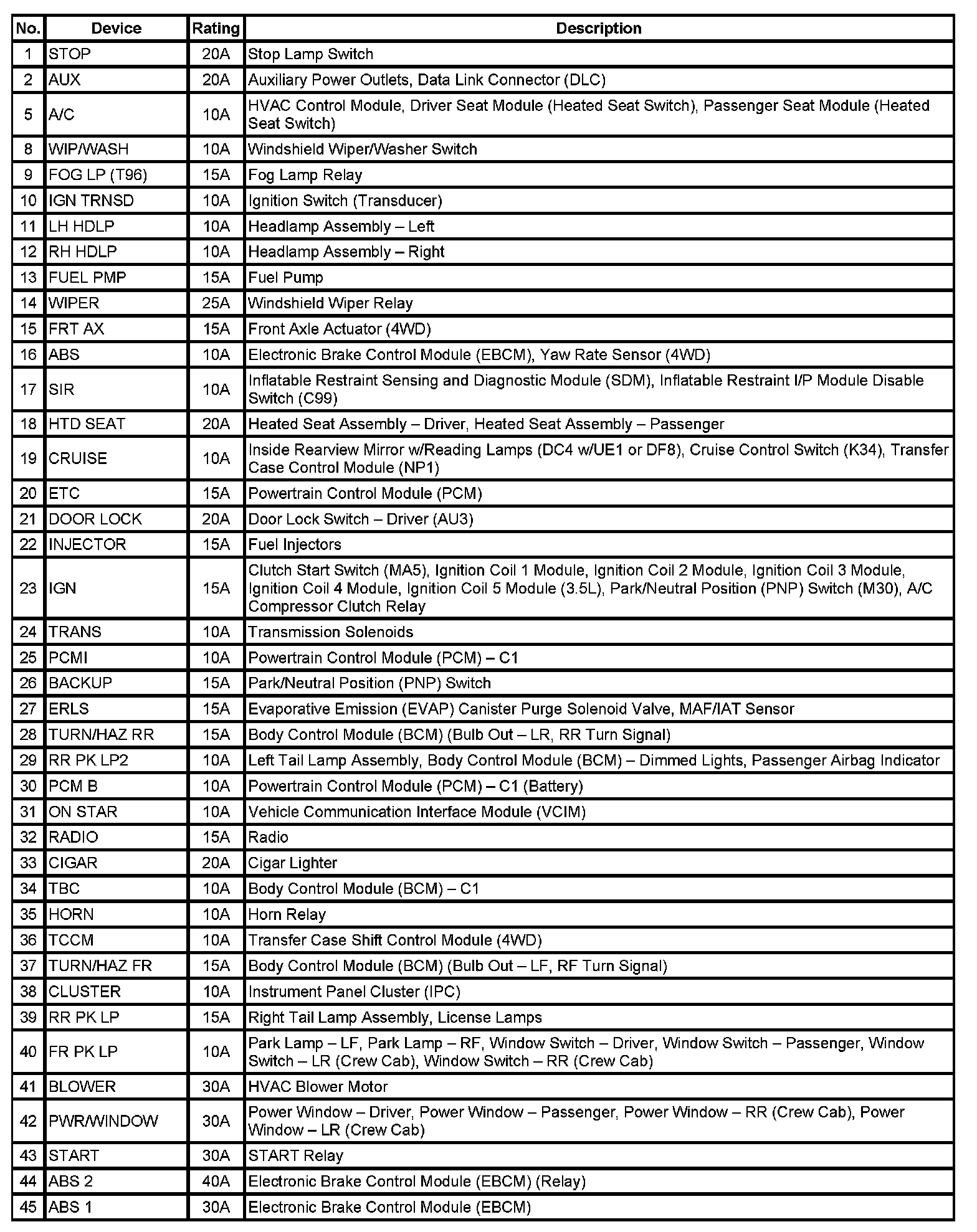

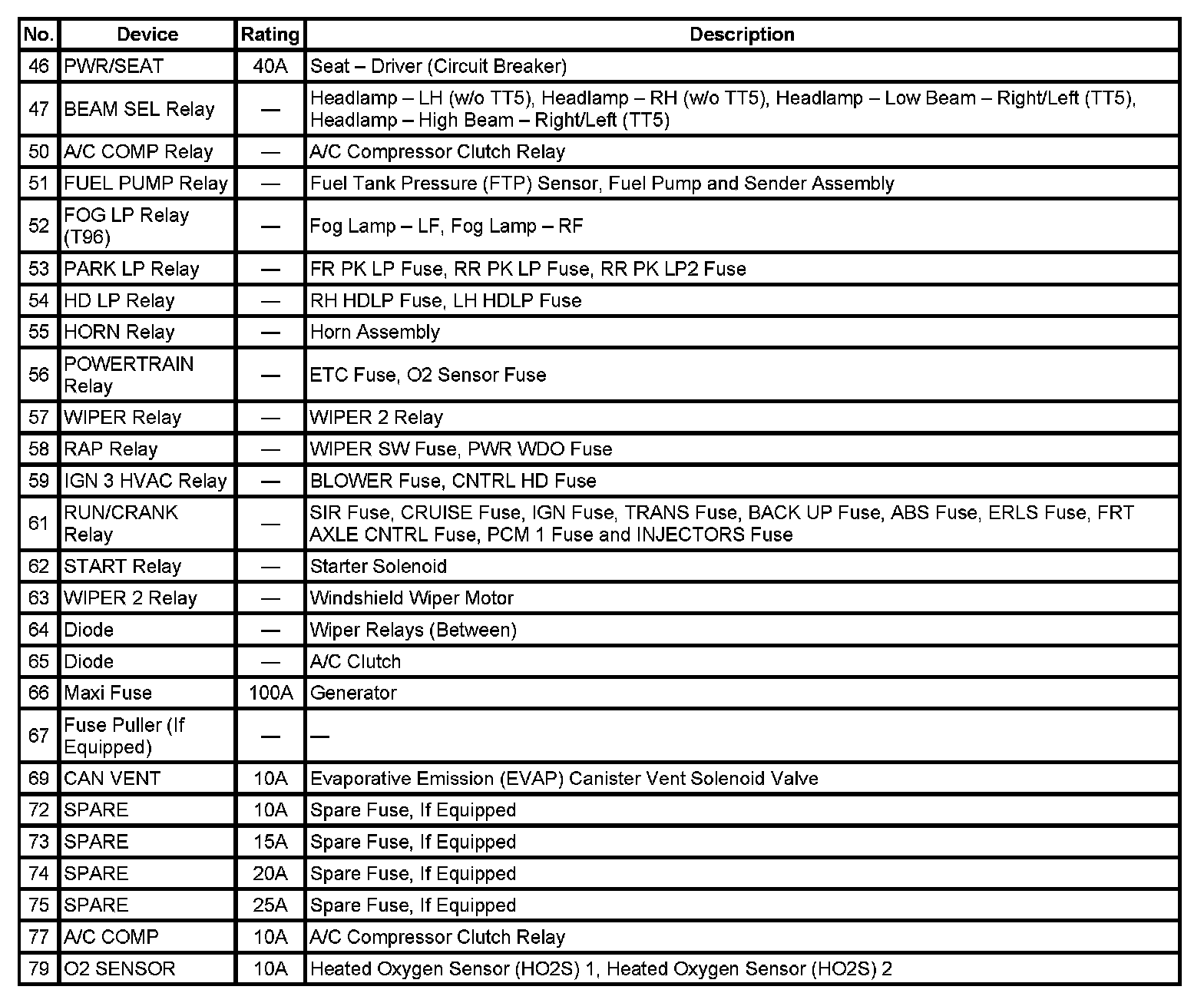

Application Table (Part 1):

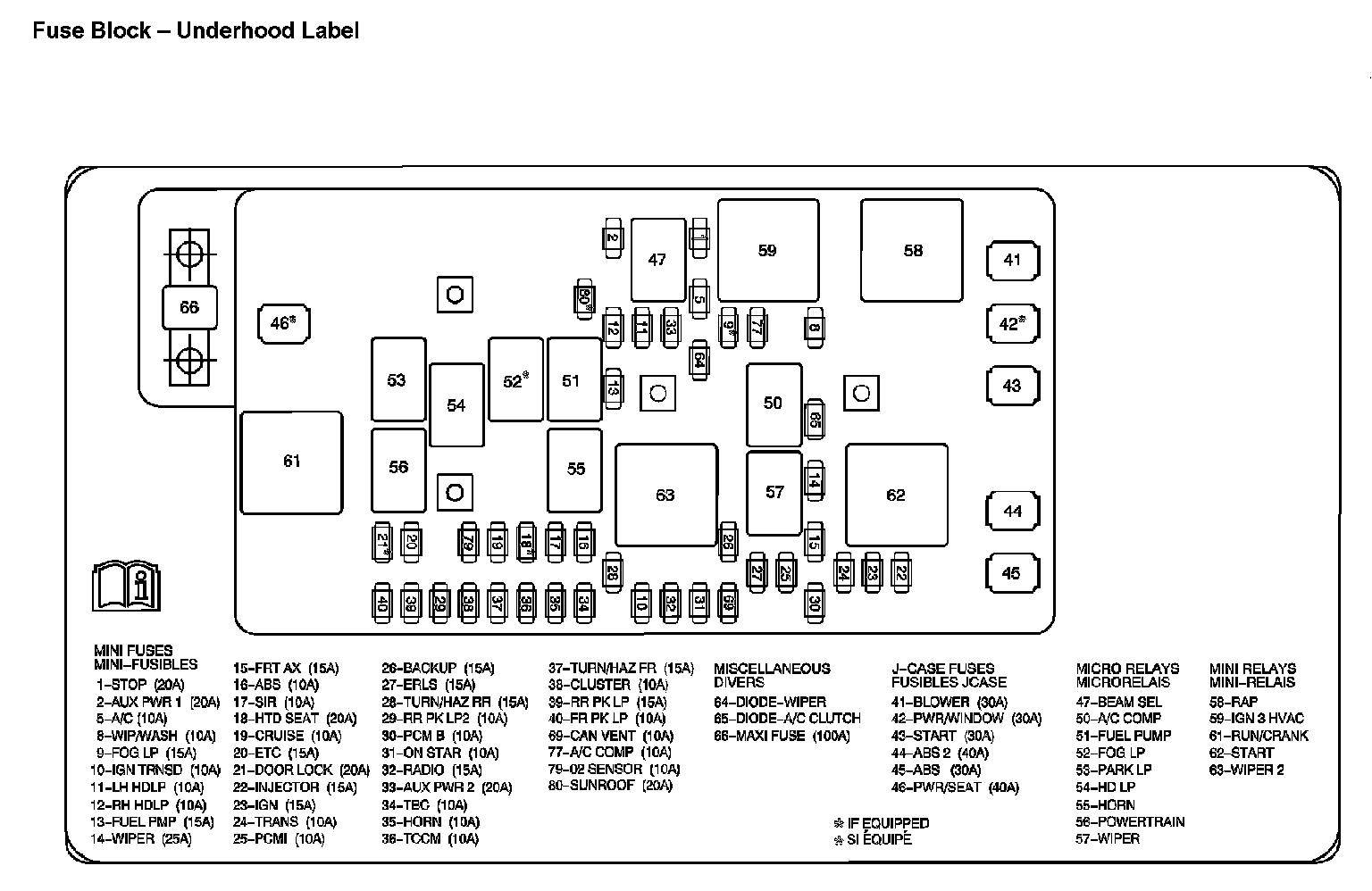

Application Label (Part 2):




Location View:




Location View:
