Power Window Switch: Diagrams

Door Lock and Window Switch - Driver C1 With RPO Code A31 Or AU3:

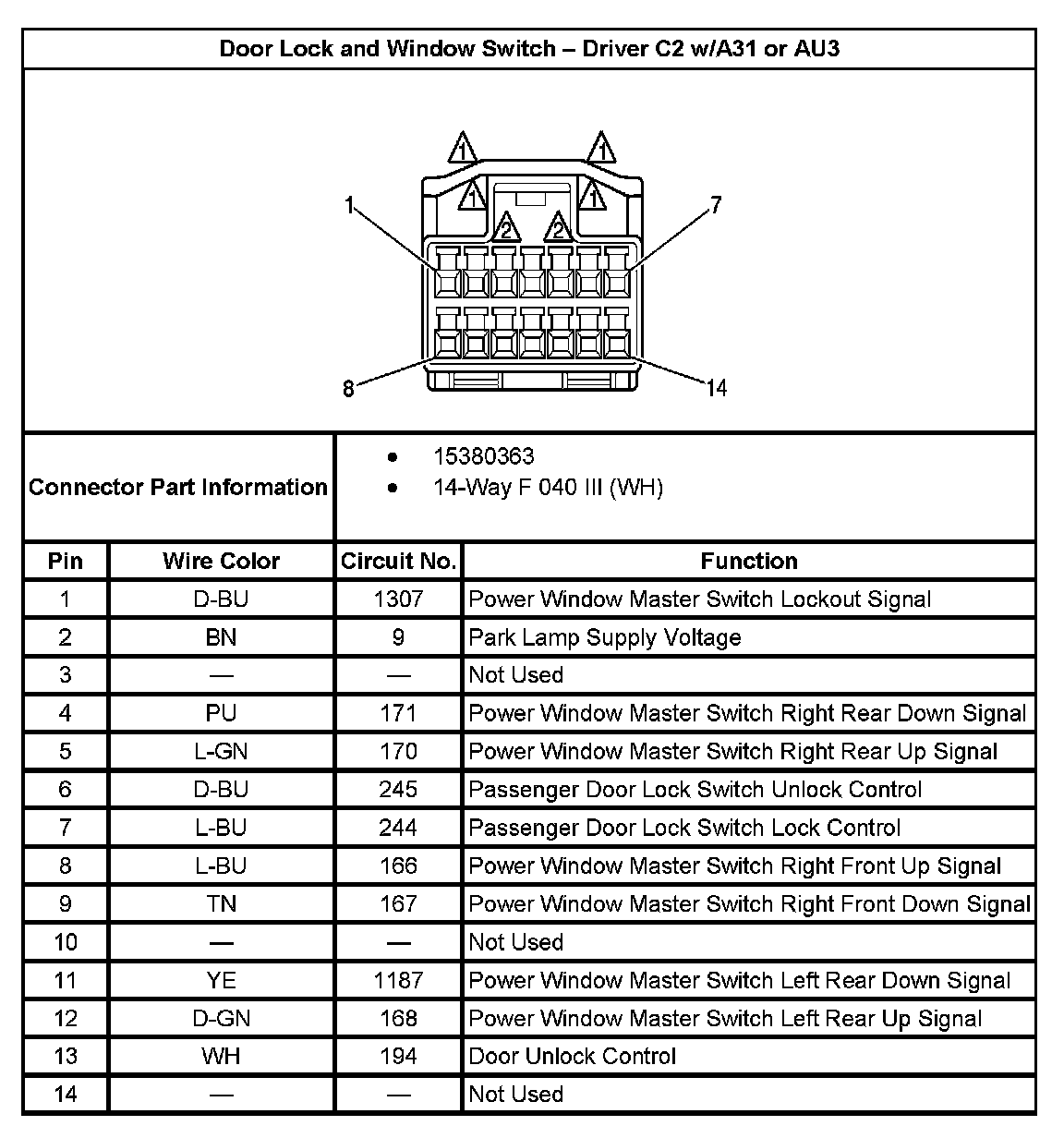

Door Lock and Window Switch - Driver C2 With RPO Code A31 Or AU3:

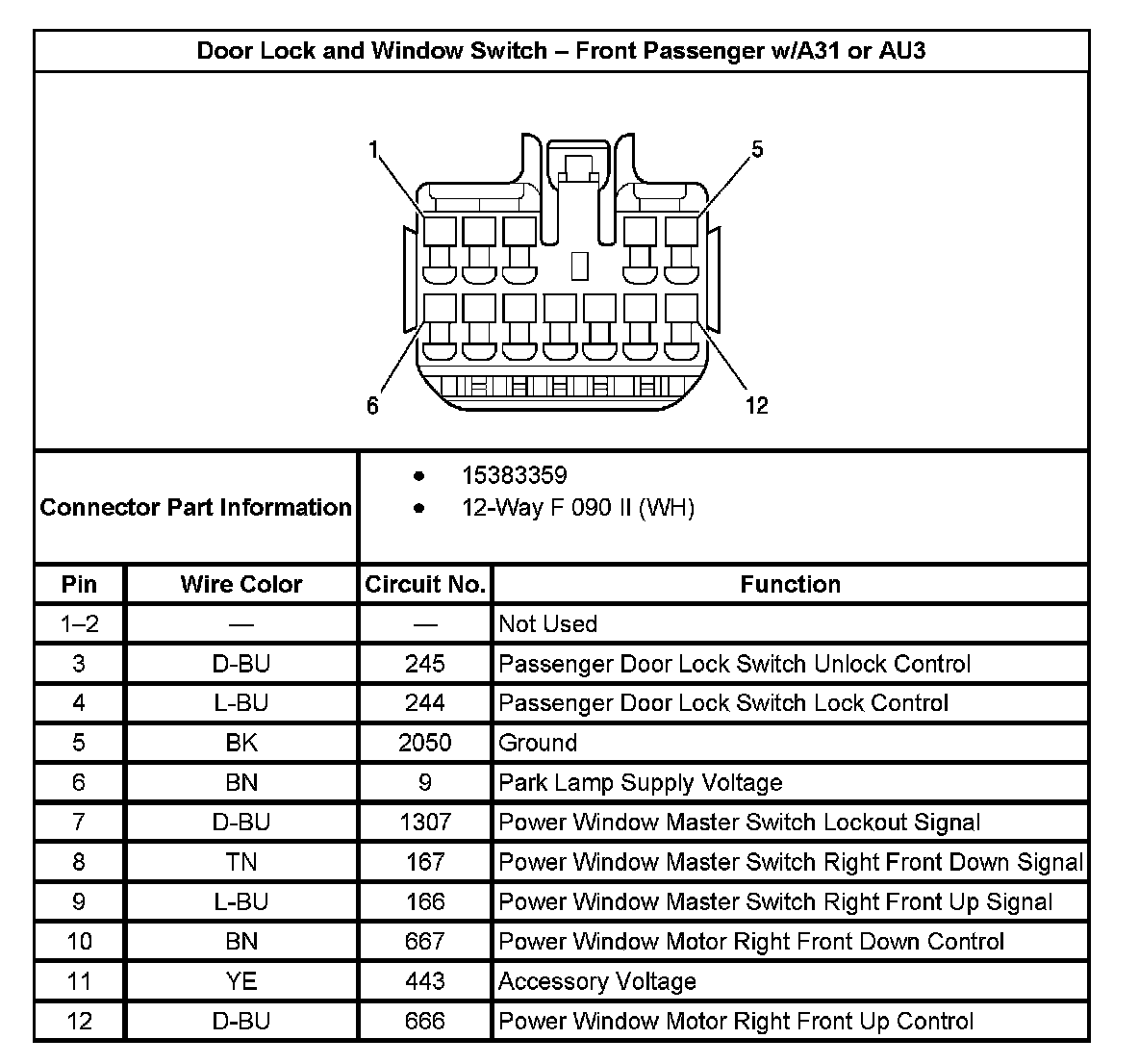

Door Lock and Window Switch - Front Passenger With RPO Code A31 Or AU3:

Window Switch - LR (Crew Cab) With RPO Code A31:

Window Switch - RR (Crew Cab) With RPO Code A31:
