Cruise Control Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

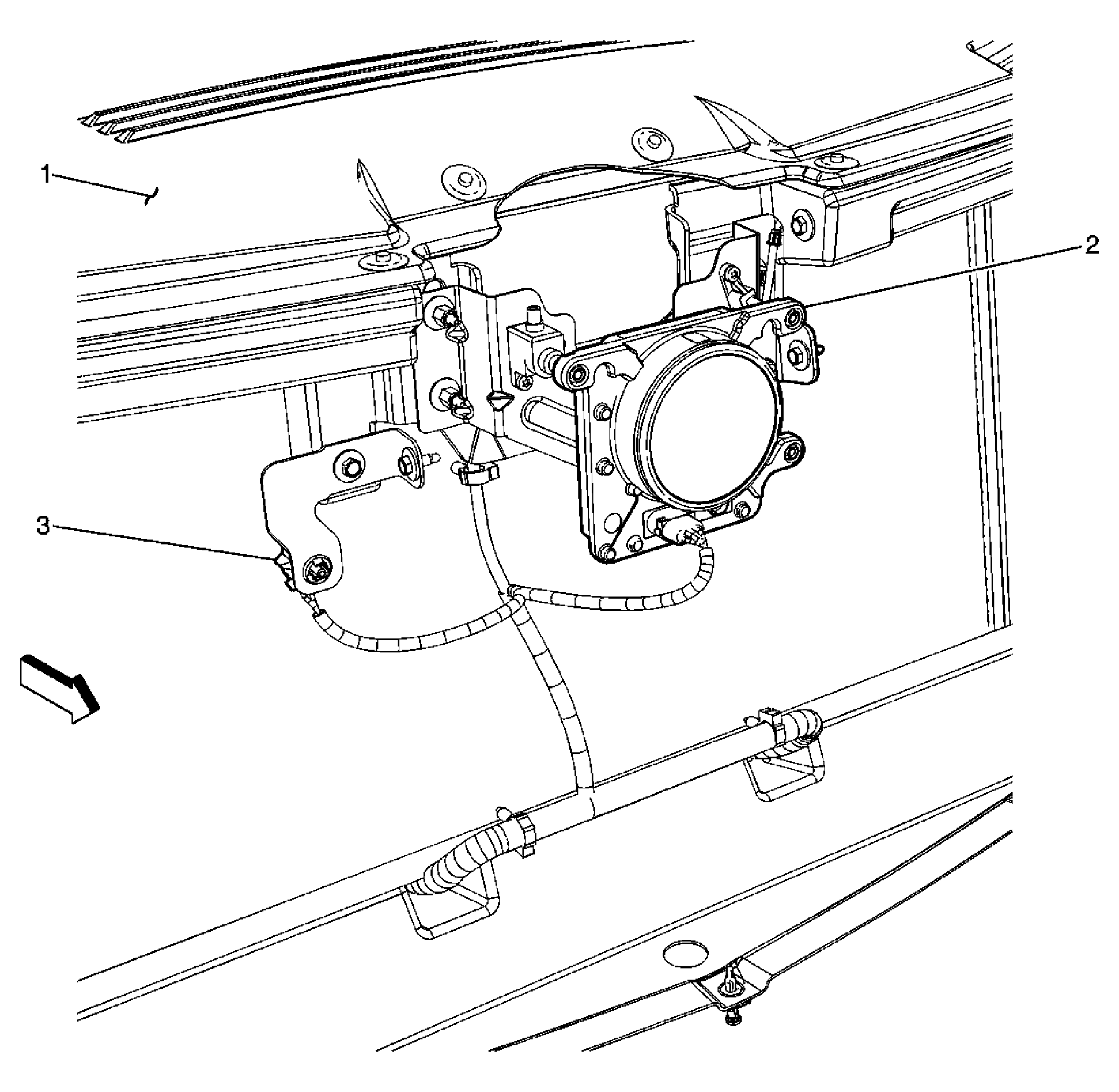

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radiator Cover |
| 2 |
Distance Sensing Cruise Control Module (K59) |
| 3 |
Ambient Air Temperature Sensor |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Heated Steering Wheel |
| 2 |
Horn Switch |
| 3 |
Heated Steering Wheel Module (N30) |
| 4 |
Steering Wheel Control Switch - Right |
| 5 |
Steering Wheel Control Switch - Right |
| 6 |
Heated Steering Wheel Element (N30) |
| 7 |
Heated Steering Wheel Switch (N30) |
| 8 |
Steering Wheel Control Switch - Left |
