Scan Tool Data List

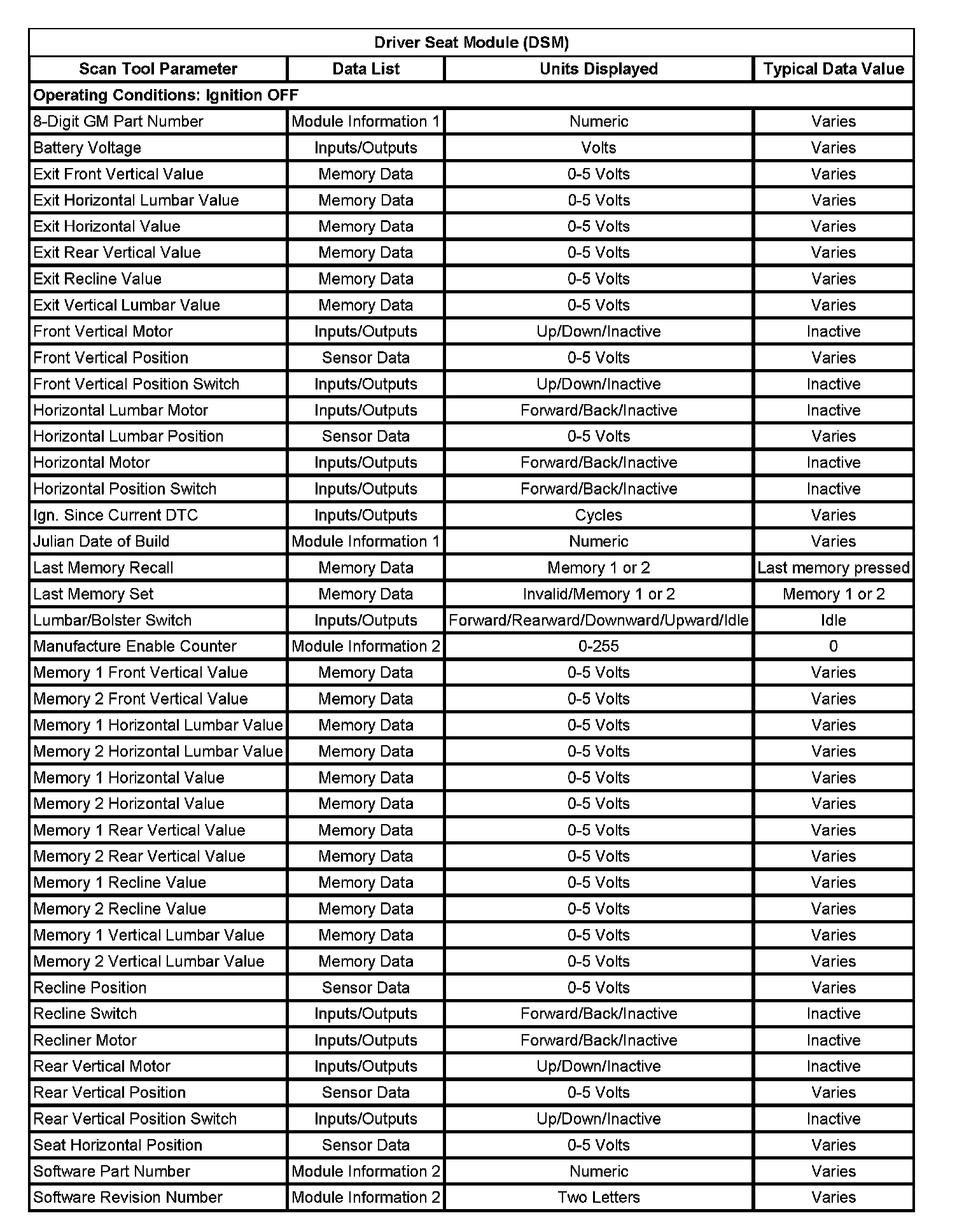

Driver Seat Module (DSM):



Driver Seat Module (DSM):



Driver Door Module (DDM):
