Electronic Brake Control Module: Service and Repair

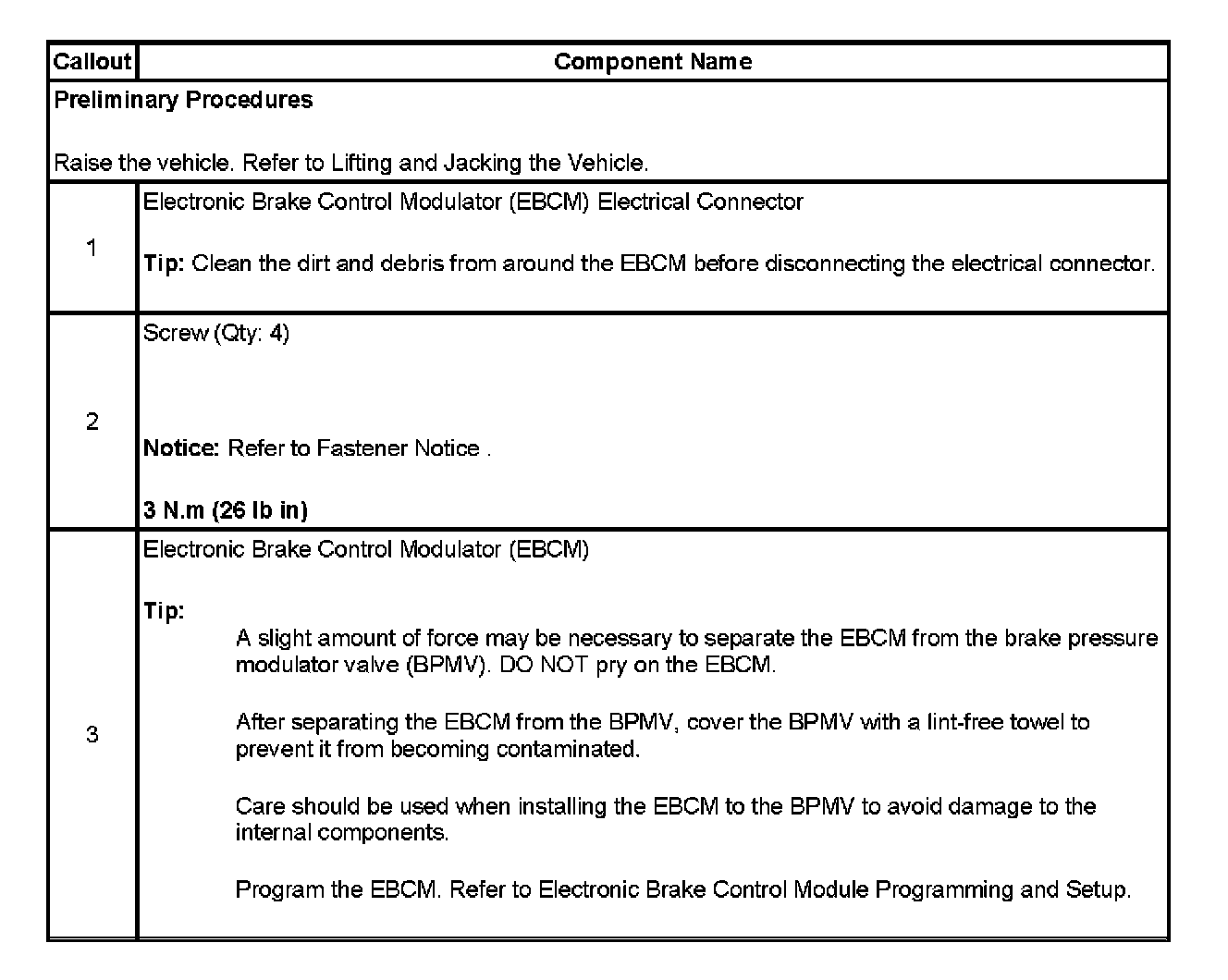

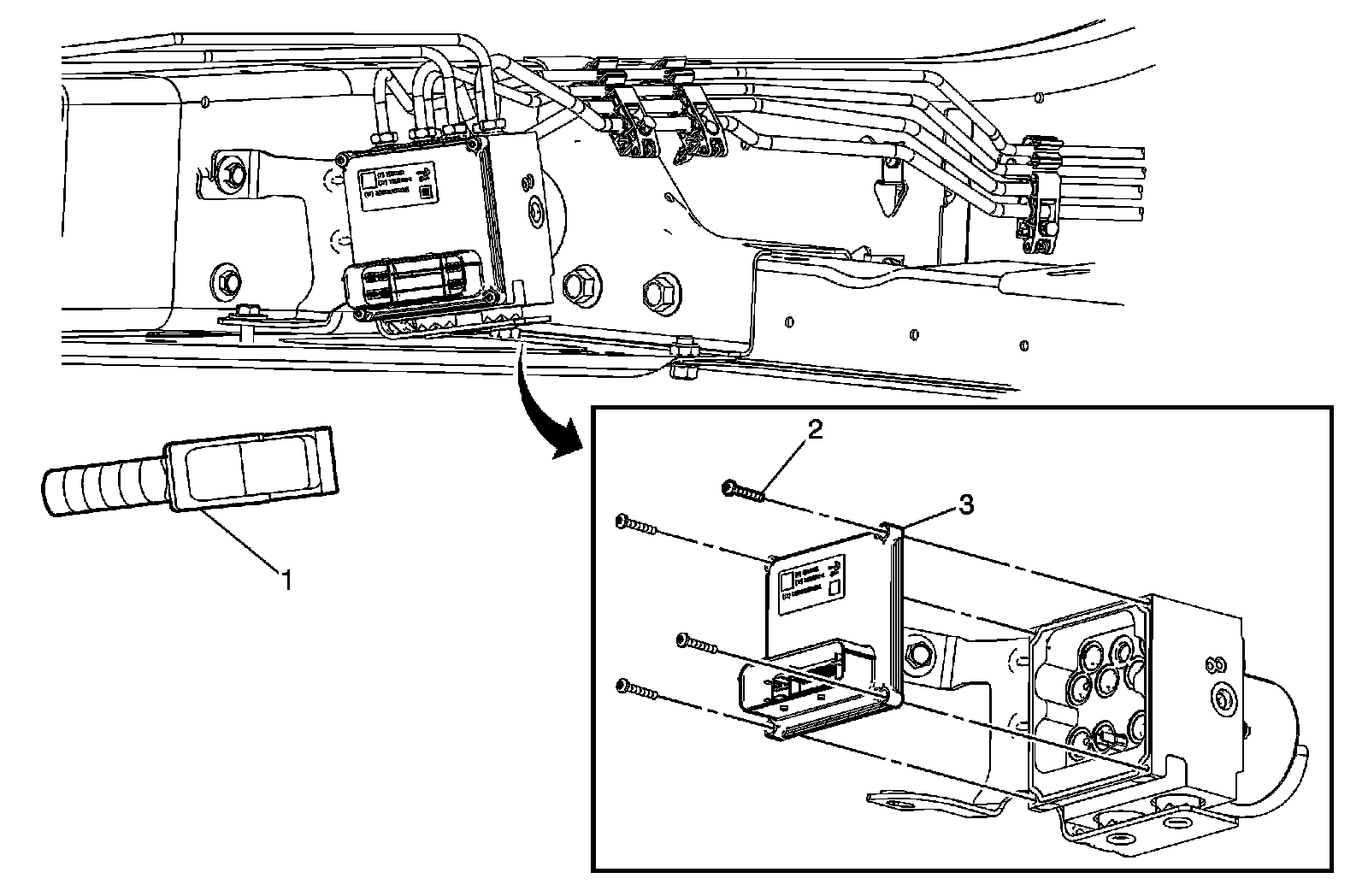

Electronic Brake Control Module Replacement









Preliminary ProceduresRaise the vehicle. Refer to Lifting and Jacking the Vehicle.
