Repairing Damaged Wire Insulation



REPAIRING DAMAGED WIRE INSULATION

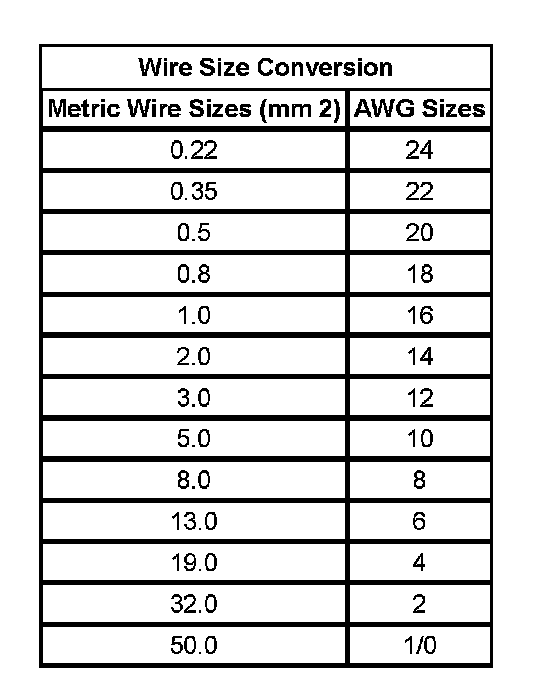

Wire Size Conversion:




If the conductive portion of the wire is not damaged, locate the problem and apply tape around the wire. If the damage is more extensive, replace the faulty segment of the wire.
