Entertainment/Communication Component Views

Fig 1: Front of Vehicle (Z88/Z89)
GM1550918Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Right
2 Headlamp - High Beam - Right
3 Cellular Antenna (UE1)
4 Headlamp - High Beam - Left
5 Headlamp - Low Beam - Left
6 Outside Rearview Mirror - Driver
7 Marker Lamp - LF
8 Park/Turn Signal Lamp - LF
9 Cornering Lamp - Left (Z88)
10 Fog Lamp - LF (T96)
11 Fog Lamp - RF (T96)
12 Cornering Lamp - Right (Z88)
13 Park/Turn Signal Lamp - RF
14 Marker Lamp - RF
15 Radio Antenna
16 Outside Rearview Mirror - Passenger
Fig 2: View Of Front Of Vehicle (Z88/Z89)
GM1550922Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna
2 Headlamp - High Beam - Right
3 Headlamp - Low Beam - Right
4 Headlamp - Low Beam - Left
5 Cellular Antenna (UE1)
6 Headlamp - High Beam - Left
7 Outside Rearivew Mirror - Driver
8 Marker Lamp - LF
9 Park/Turn Signal lamp - LF
10 Fog Lamp - LF (T96)
11 Fog Lamp - RF (T96)
12 Park/Turn Signal lamp - RF
13 Marker Lamp - RF
14 Outside Rearivew Mirror - Passenger
Fig 3: View Of Front Of Vehicle (W49)
GM1550923Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna
2 Digital Radio Antenna
3 Cellular Antenna (UE1)
4 Outside Rearview Mirror - Driver
5 Park Lamp - LF
6 Park Lamp - LF
7 Headlamp - High Beam - Left
8 Marker Lamp - LF
9 Cornering Lamp - Left
10 Fog Lamp - LF (T96)
11 Headlamp - Low Beam - Left
12 Turn Signal Lamp - LF
13 Turn Signal Lamp - RF
14 Headlamp - Low Beam - Right
15 Fog Lamp - RF (T96)
16 Cornering Lamp - Right
17 Marker Lamp - RF
18 Headlamp - High Beam - Right
19 Park Lamp - RF
20 Park Lamp - RF
21 Outside Rearview Mirror - Passenger
Fig 4: View Of Global Positioning System (GPS) Antenna
GM1499752Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Global Positioning System (GPS) Antenna
Fig 5: View Of Overhead Console
GM1495835Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cellular Microphone (UE1)
2 Overhead Console

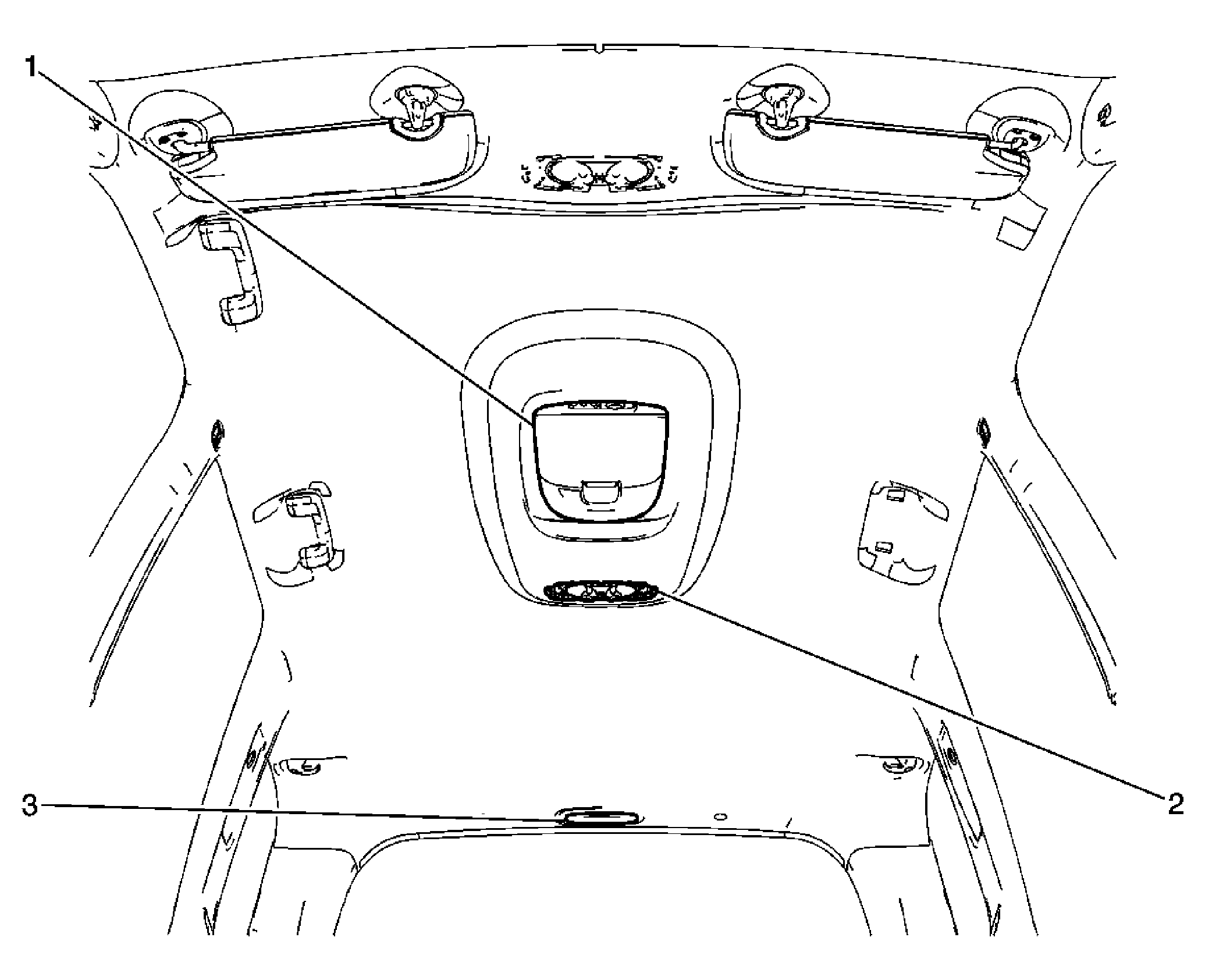

Fig 6: Identifying Headliner
GM1827780Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Video Disc (DVD) Player (U42)
2 Courtesy/Reading Lamp - Center
3 Cargo Lamp

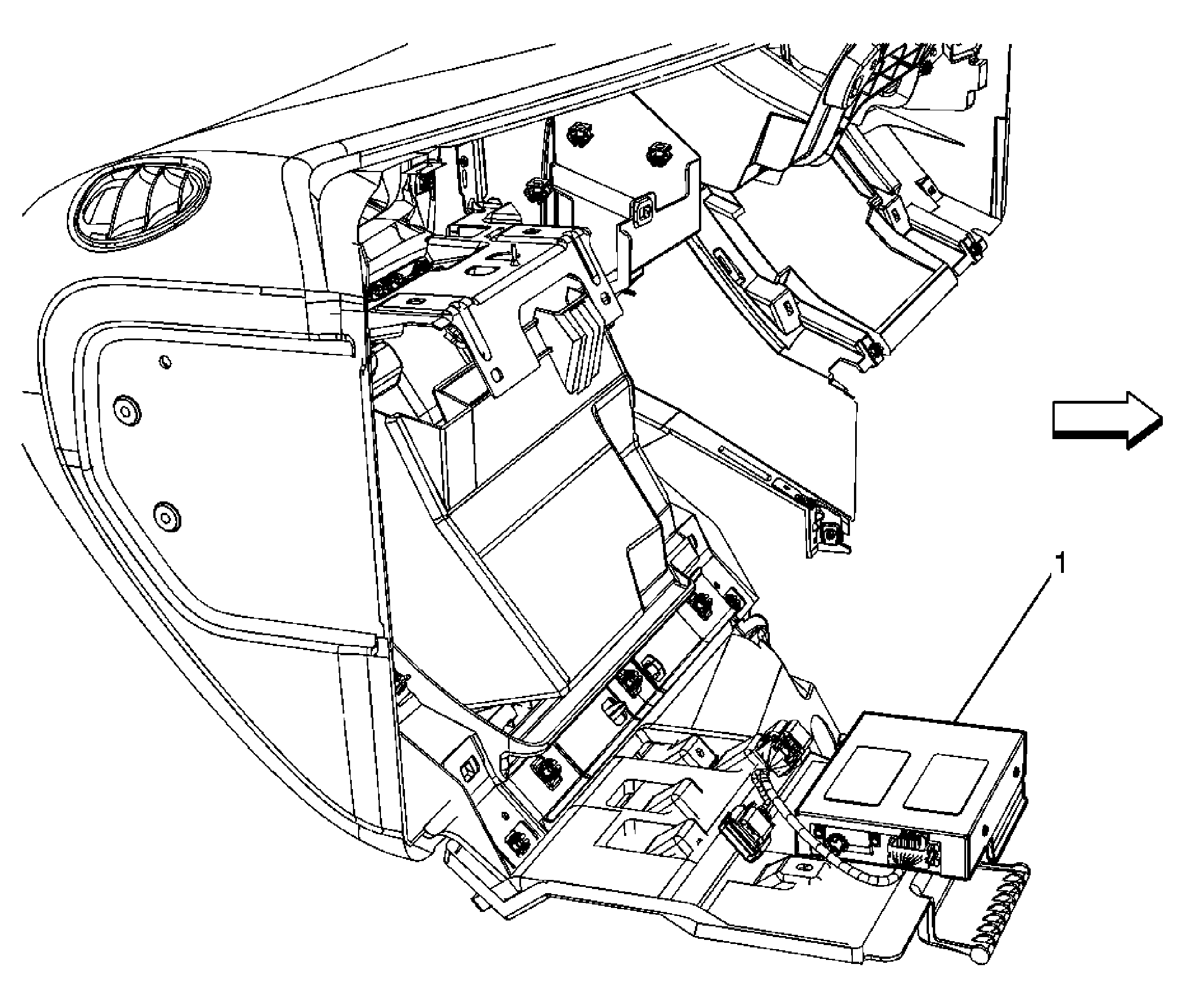

Fig 7: View Behind Instrument Panel - Right
GM1551058Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Receiver (U2K)
Fig 8: View Of Dash Panel
GM1486698Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - LF I/P (UQA)
2 Ambient Light Sensor (CJ3)/Ambient Light/Sunload Sensor Assembly (CJ2)
3 Speaker - RF I/P (UQA)
Fig 9: Radio Component View
GM749971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Radio Antenna
3 Radio
4 Instrument Panel Harness
Fig 10: View Of Speaker-LF Door Component
GM749973Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Door
2 Speaker - LF Door (w/UQA)/Speaker Assembly - LF Door (w/o UQA)

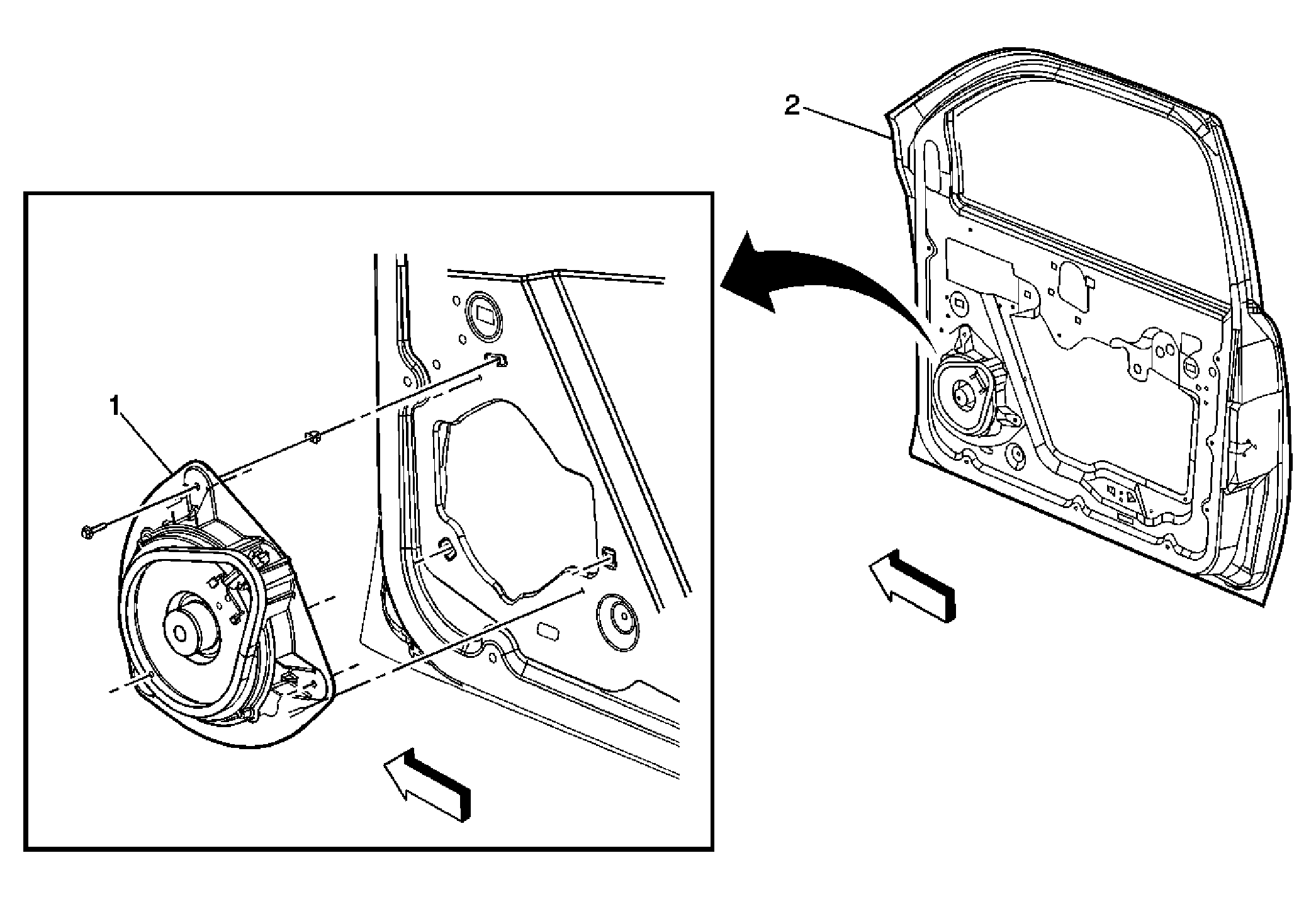

Fig 11: View Of Speaker - RF Door
GM1491161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RF Door (w/UQA)/Speaker Assembly - RF Door (w/o UQA)
2 Front Passenger Door
Fig 12: View Of Speaker-LR Door Component
GM749978Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 LR Door
2 Speaker - LR Door

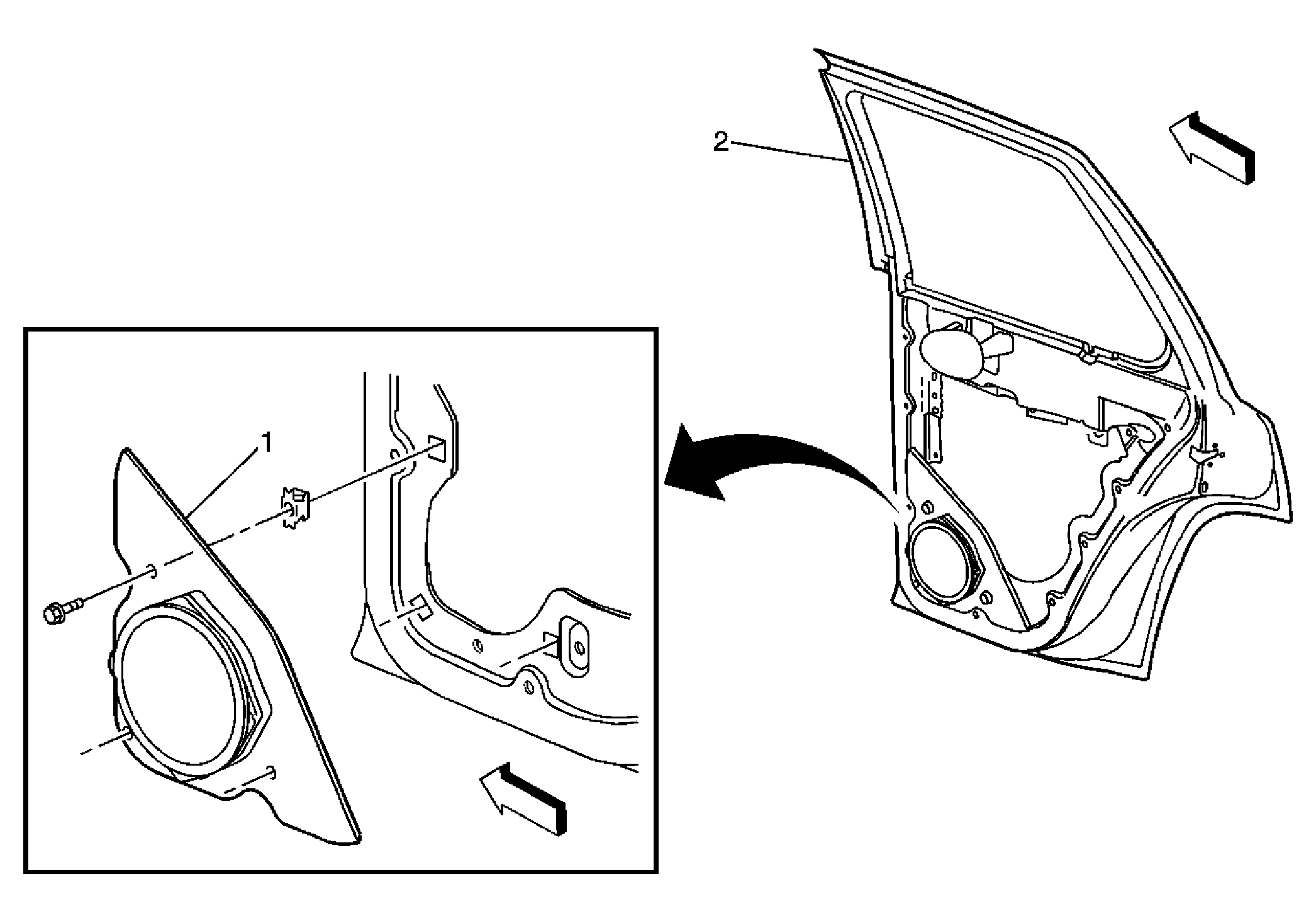

Fig 13: View Of Speaker - RR Door
GM1491239Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RR Door
2 RR Door
Fig 14: View Of Audio Amplifier, Short Wheelbase Body Type VIN 3 Component
GM749983Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Inner Lower Panel - Right
2 Audio Amplifier
Fig 15: View Of Vehicle Communication Interface Module (VCIM) - Short Wheelbase (SWB)
GM825916Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Connectors
2 Body Harness
3 Rear Floor Panel
4 Vehicle Communication Interface Module (VCIM)
