Window Systems Component Views

Fig 1: Identifying Components For Driver Door Module (DDM)
GM1550864Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Lockout Switch
2 Passenger Window Switch
3 Right Rear Window Switch
4 Door Lock Switch - Driver
5 Memory Seat Switch - Driver (w/Memory)
6 Heated Seat Switch - Driver (w/Heat)
7 Left Rear Window Switch
8 Driver Window Switch

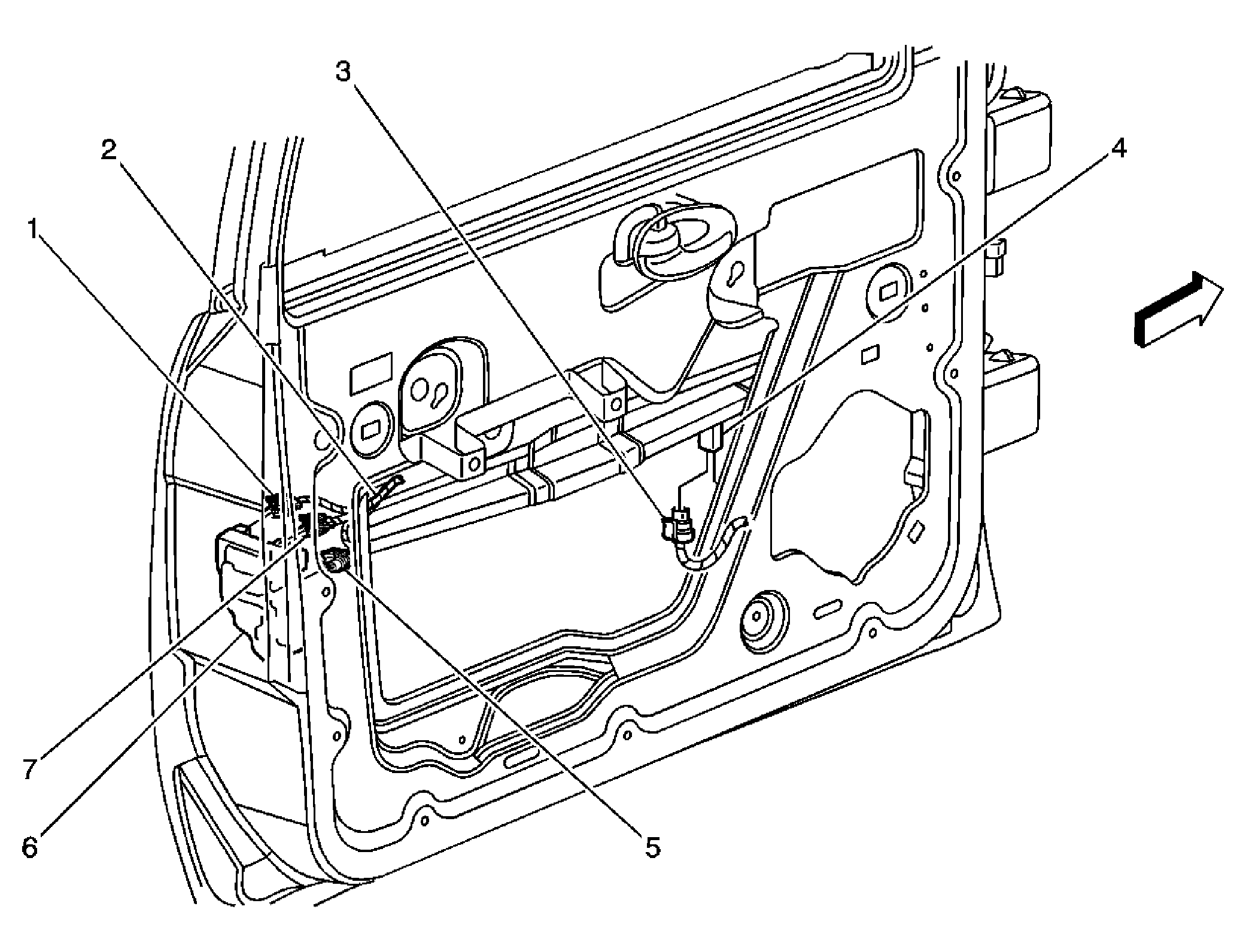

Fig 2: Identifying Components In Driver Door
GM1489148Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch Assembly - Driver C3 (UA2/UA6)
2 Left Front Door Harness
3 Window Motor Connector - Driver
4 Window Motor - Driver
5 Door Latch Assembly - Driver C2
6 Door Latch Assembly - Driver
7 Door Latch Assembly - Driver C1
Fig 3: Identifying Components In Front Passenger Door Module (FPDM)
GM1551319Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Passenger
2 Door Lock Switch - Passenger
3 Heated Seat Switch - Front Passenger (w/Heat)

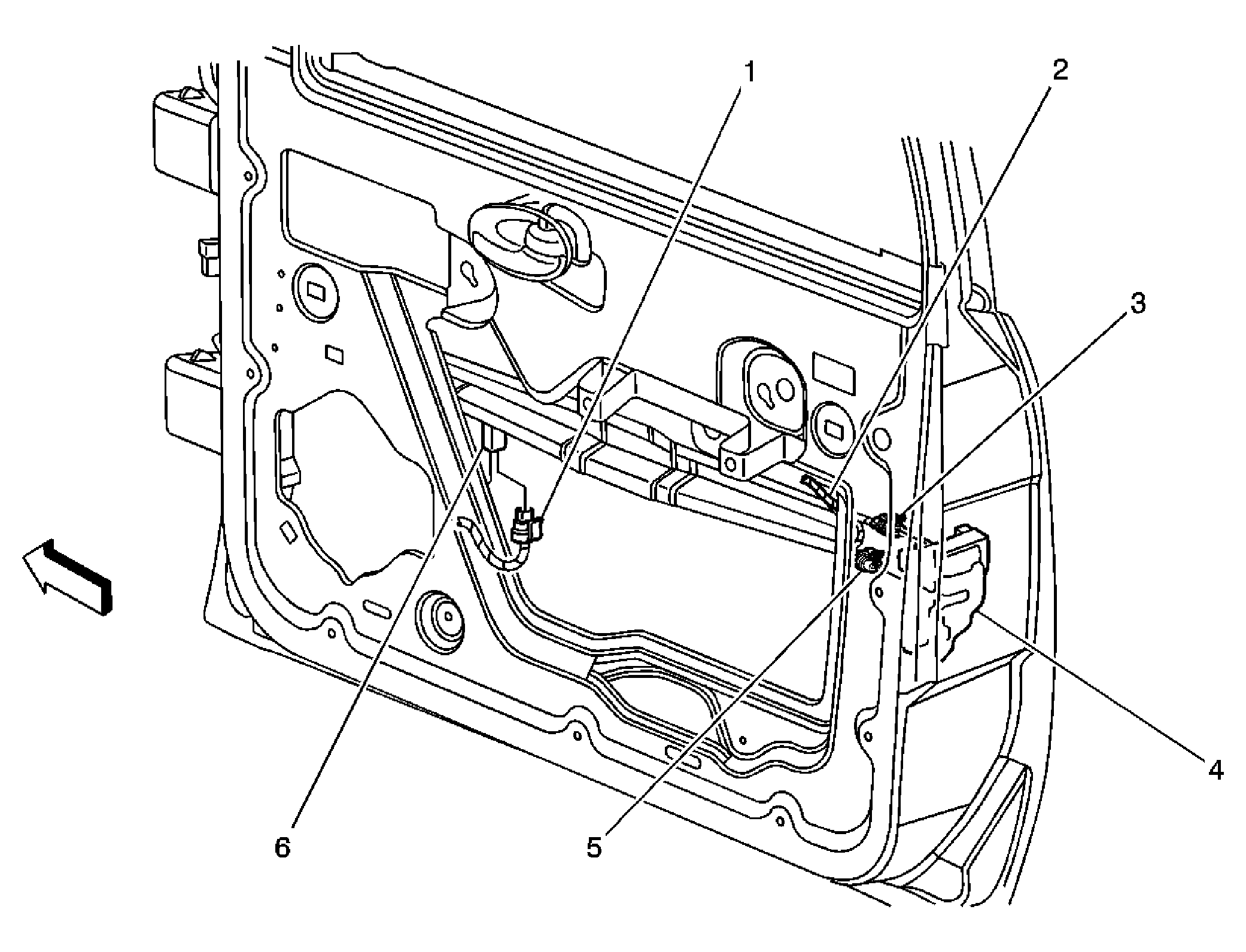

Fig 4: Identifying Components In Front Passenger Door
GM1489156Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Motor Connector - Front Passenger
2 Right Front Door Harness
3 Door Latch Assembly - Passenger C1
4 Door Latch Assembly - Passenger
5 Door Latch Assembly - Passenger C2
6 Window Motor - Front Passenger

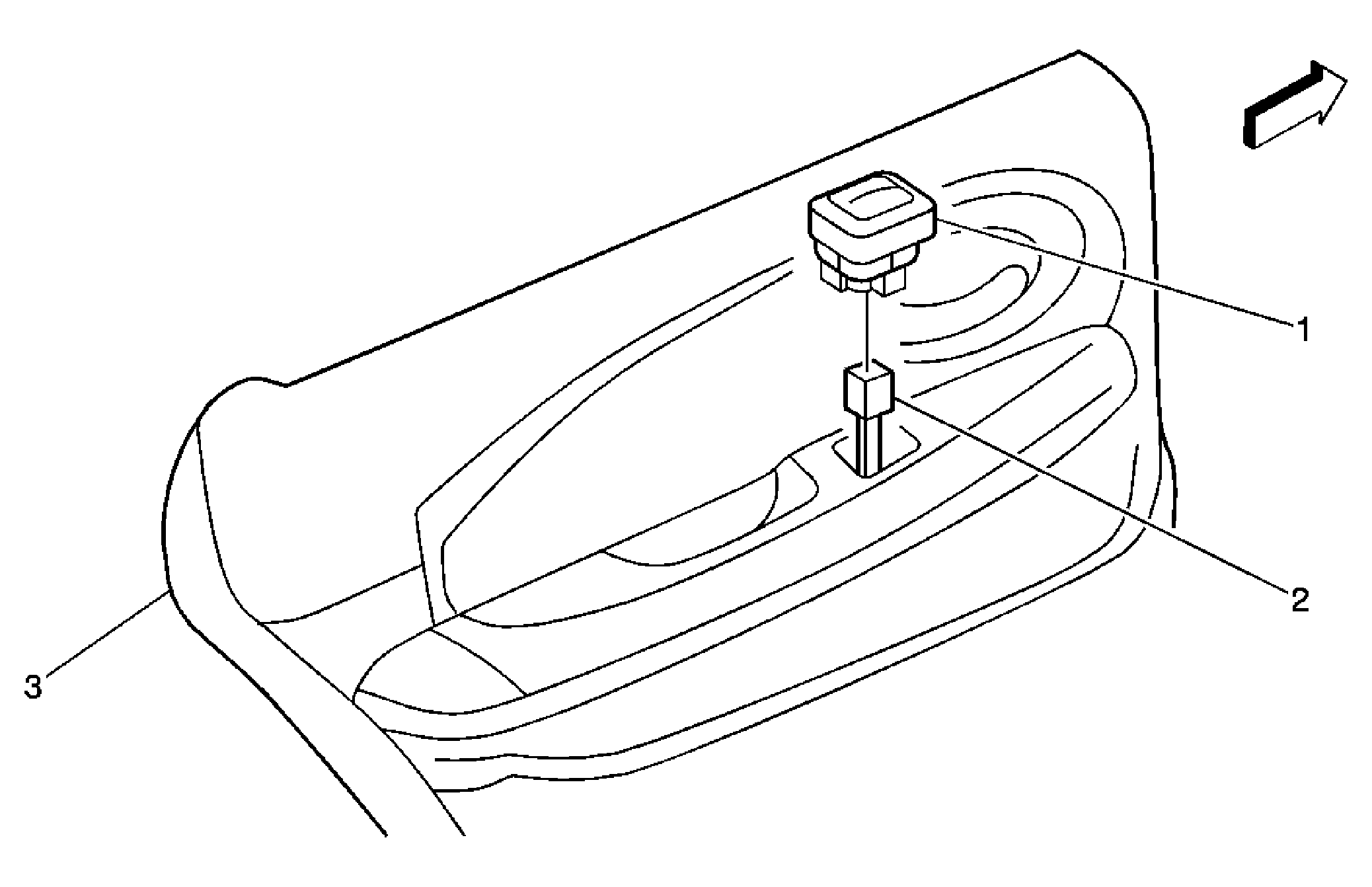

Fig 5: Identifying Window Switch - LR
GM1491553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - LR
2 Left Rear Door Harness
3 LR Door

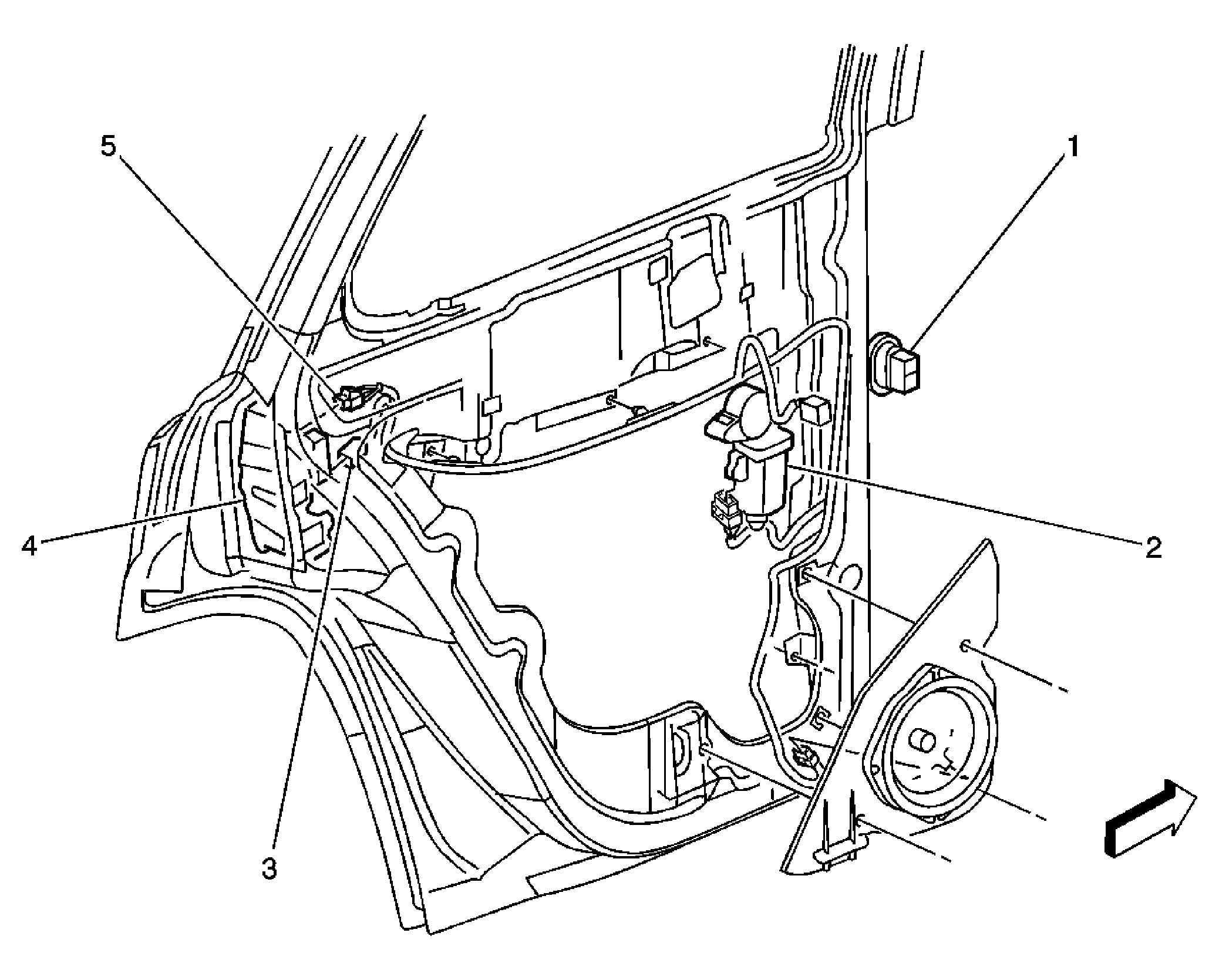

Fig 6: Identifying Components In LR Door
GM1489183Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C700
2 Window Motor - LR
3 Door Latch Assembly - LR C2
4 Door Latch Assembly - LR
5 Door Latch Assembly - LR C1

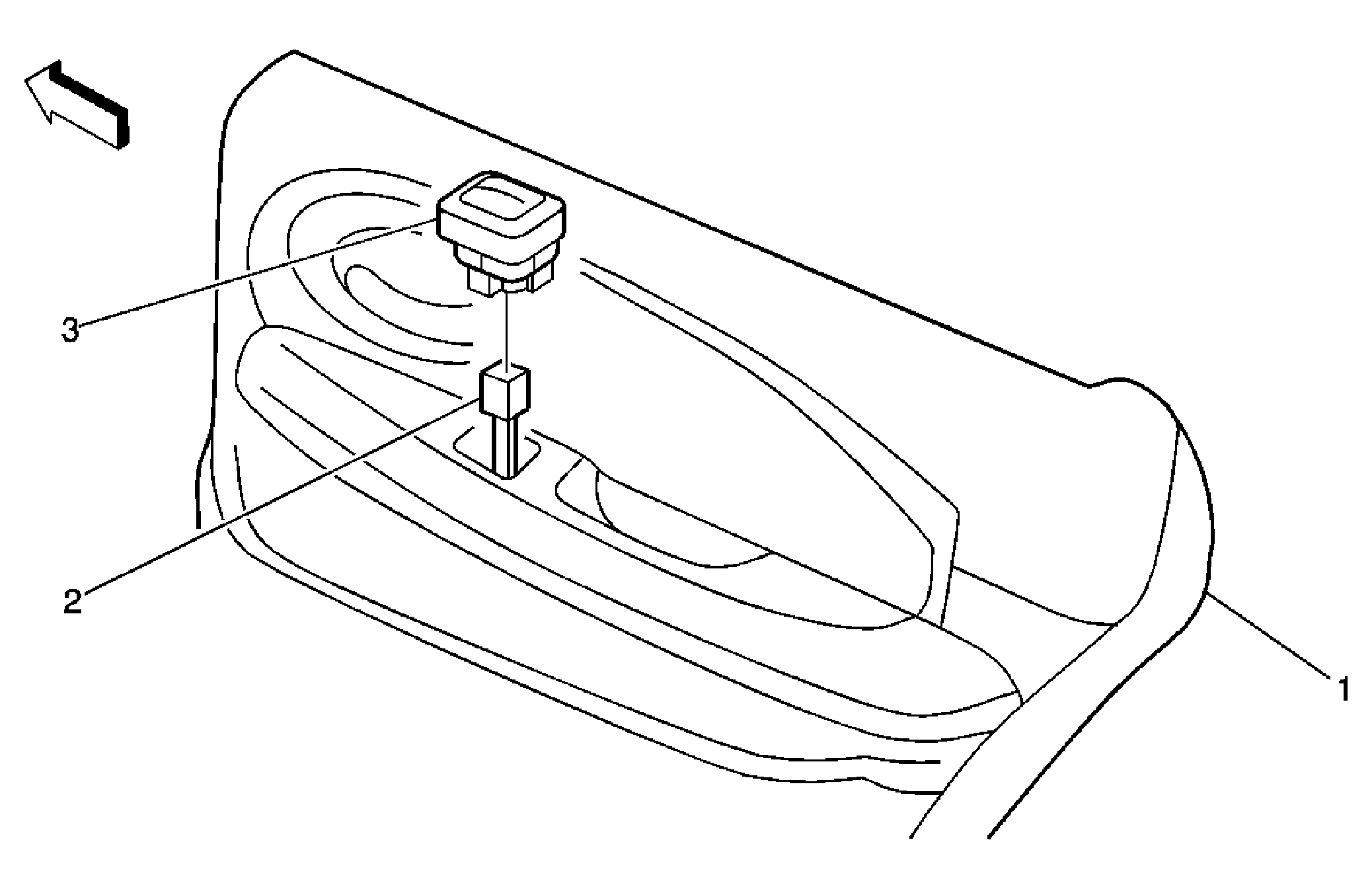

Fig 7: Identifying Window Switch - RR
GM1491556Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR Door
2 Right Rear Door Harness
3 Window Switch - RR

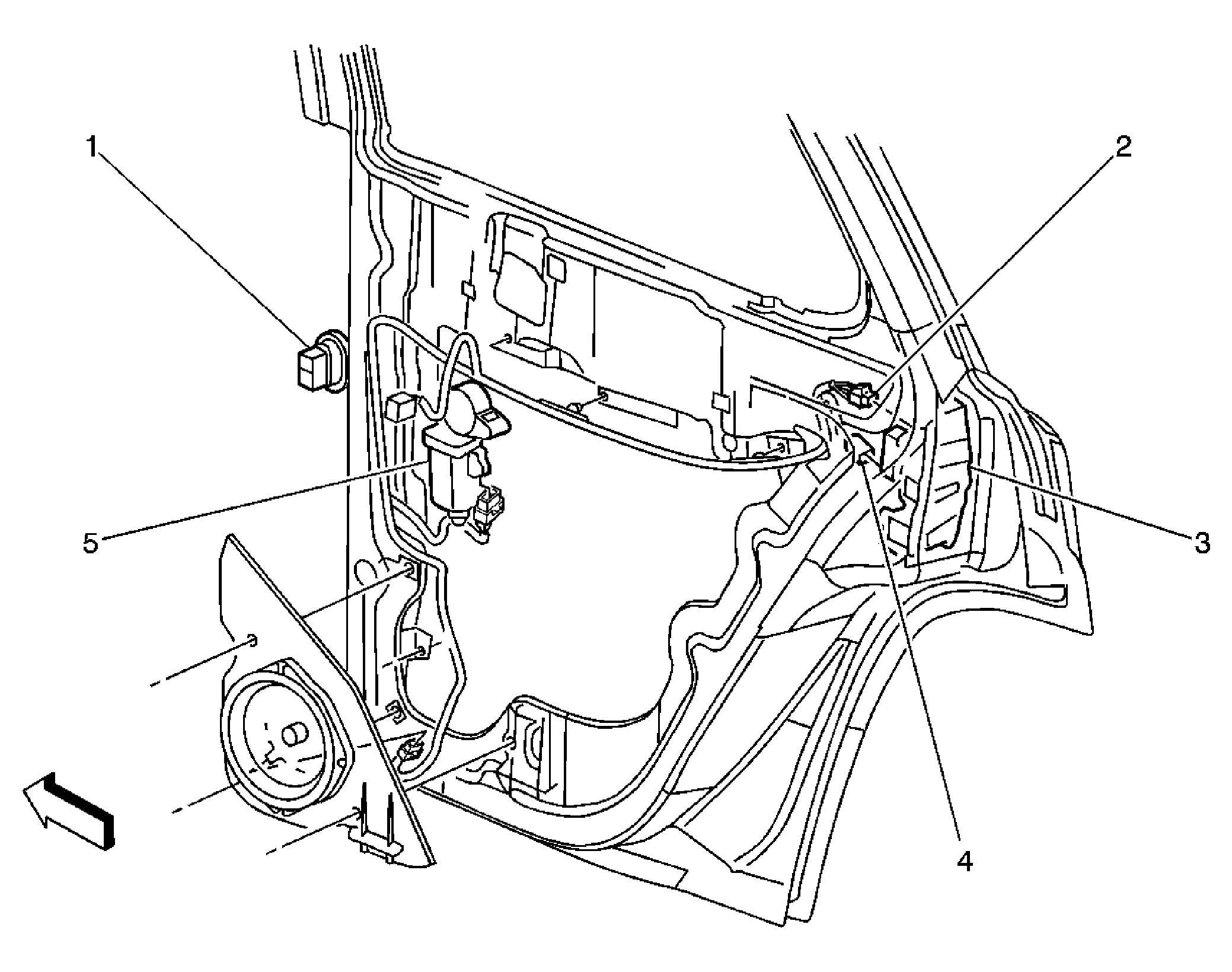

Fig 8: Identifying Components In RR Door
GM1489188Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C800
2 Door Latch Assembly - RR C1
3 Door Latch Assembly - RR
4 Door Latch Assembly - RR C2
5 Window Motor - RR

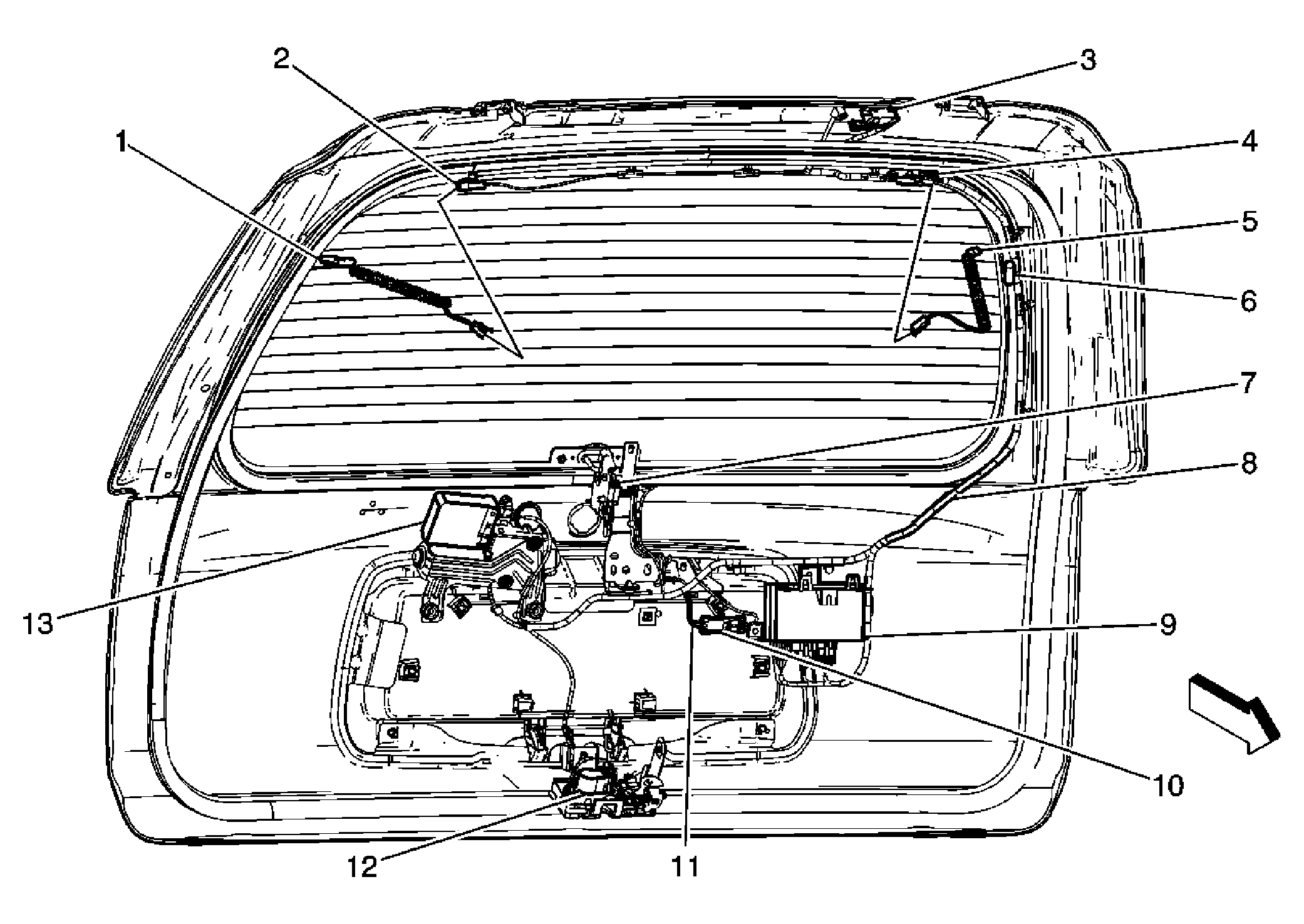

Fig 9: Identifying Liftgate
GM1703425Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger Grid C2
2 C905
3 C900
4 C904
5 Rear Window Defogger Grid C1
6 S901
7 Liftglass Ajar Switch
8 Liftgate Harness
9 Liftgate Module (LGM)
10 C901
11 License Lamp Harness
12 Liftgate Latch Assembly
13 Rear Window Wiper Motor
