Engine Controls Schematics

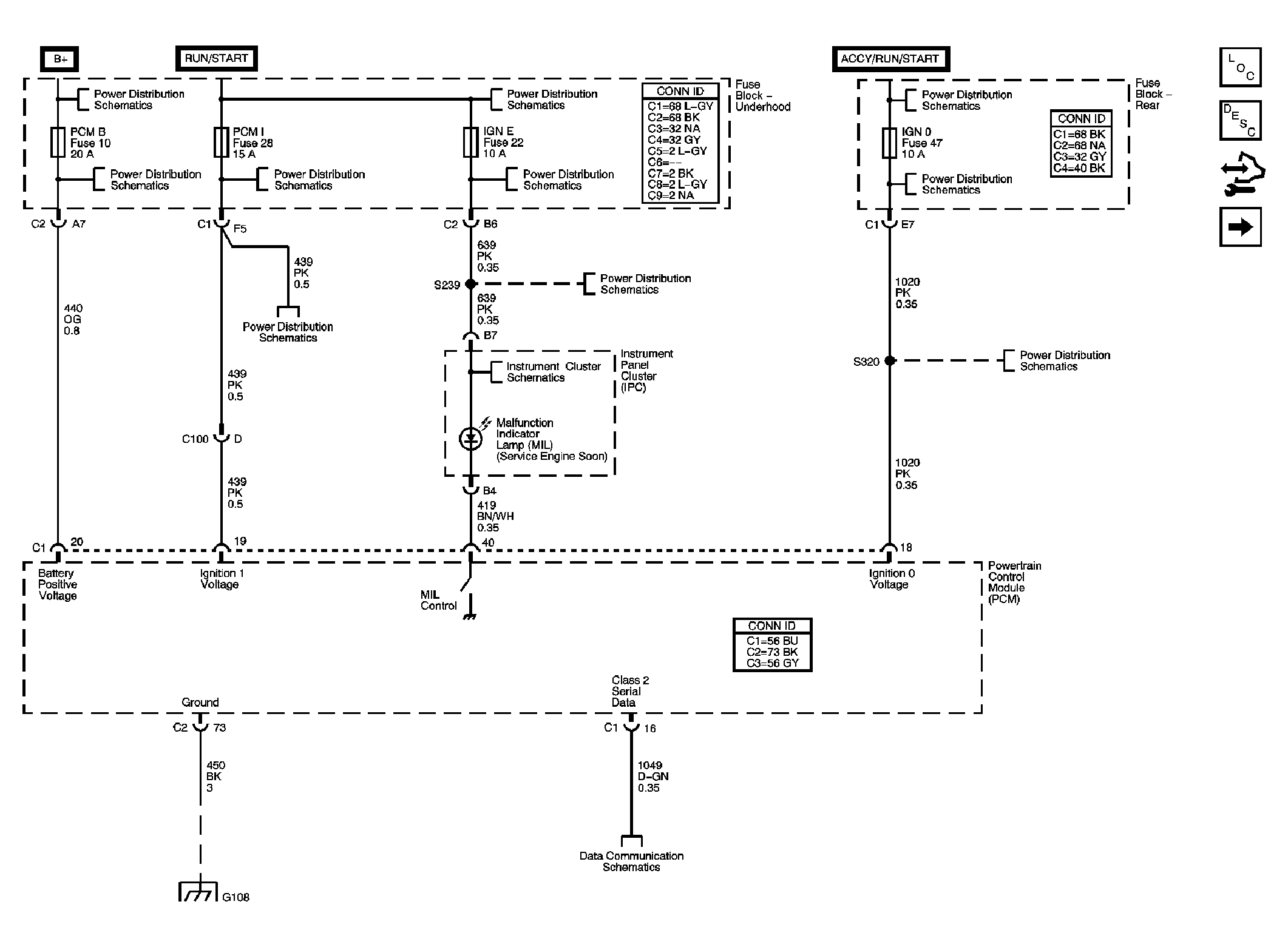

Fig 1: Module Power, Ground Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

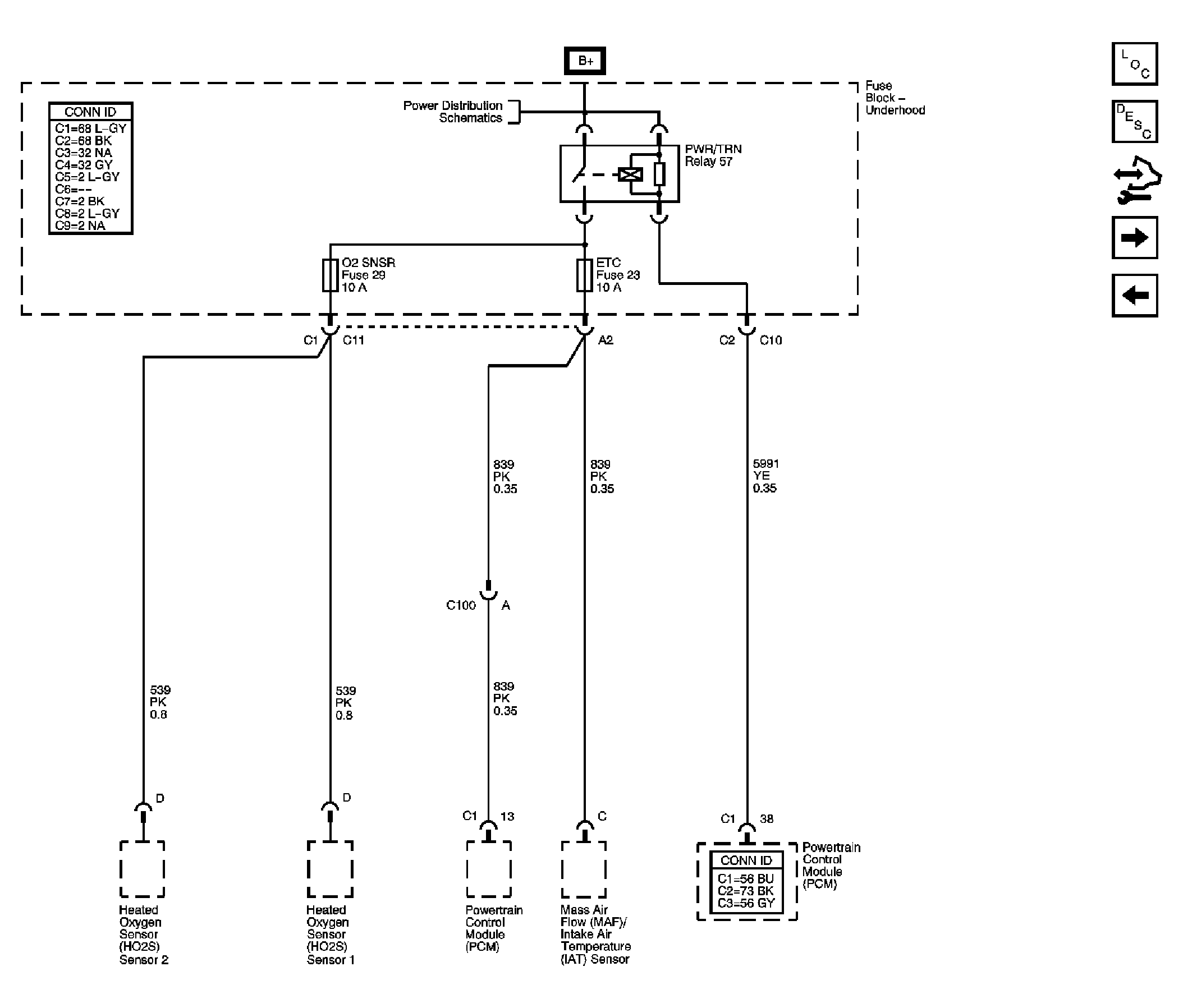

Fig 2: Underhood Fuse Block Schematic - PWR/TRN Relay

Courtesy of GENERAL MOTORS CORP.

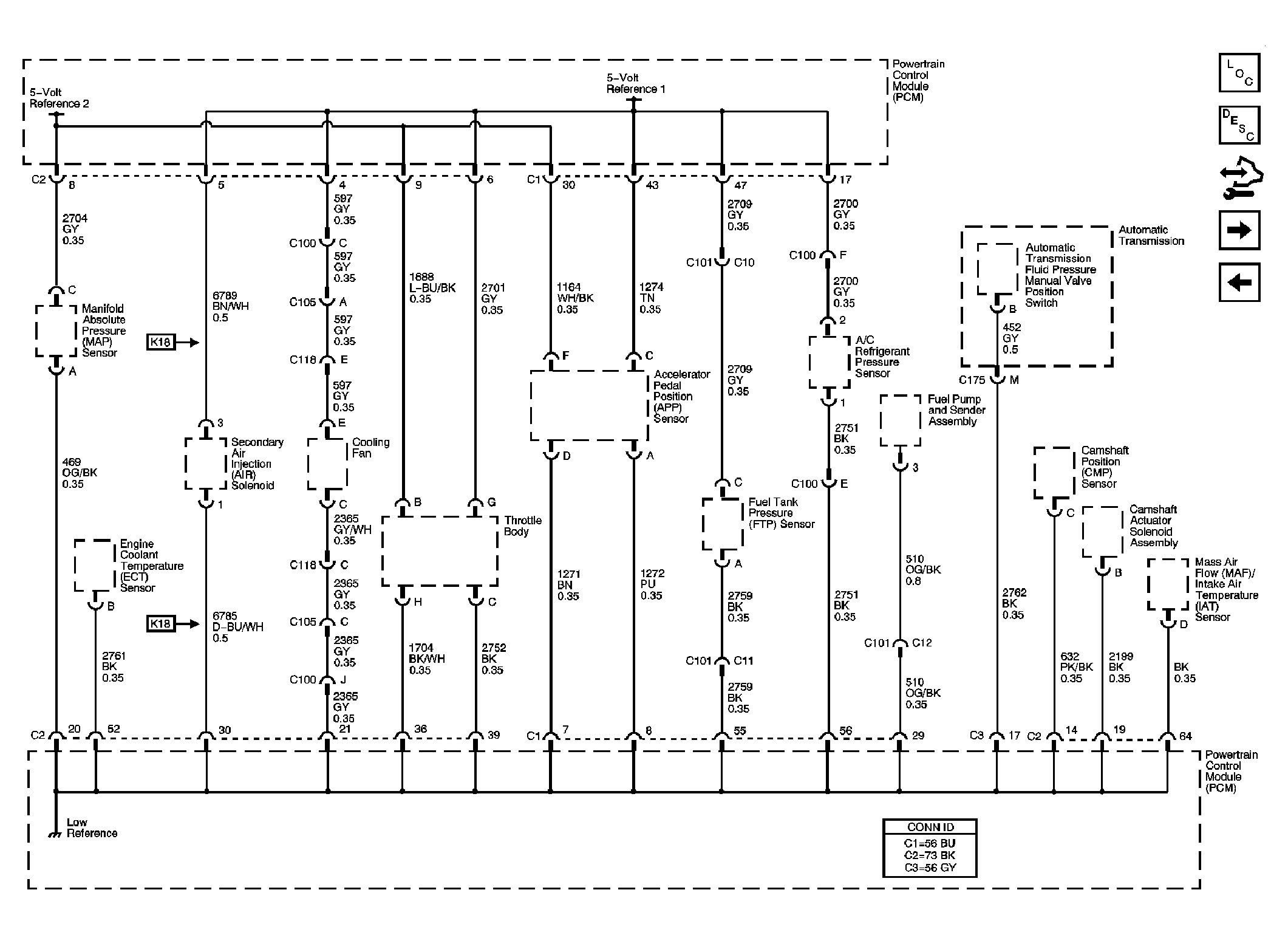

Fig 3: Engine Data Sensors Schematic - 5-Volt & Low Reference

Courtesy of GENERAL MOTORS CORP.

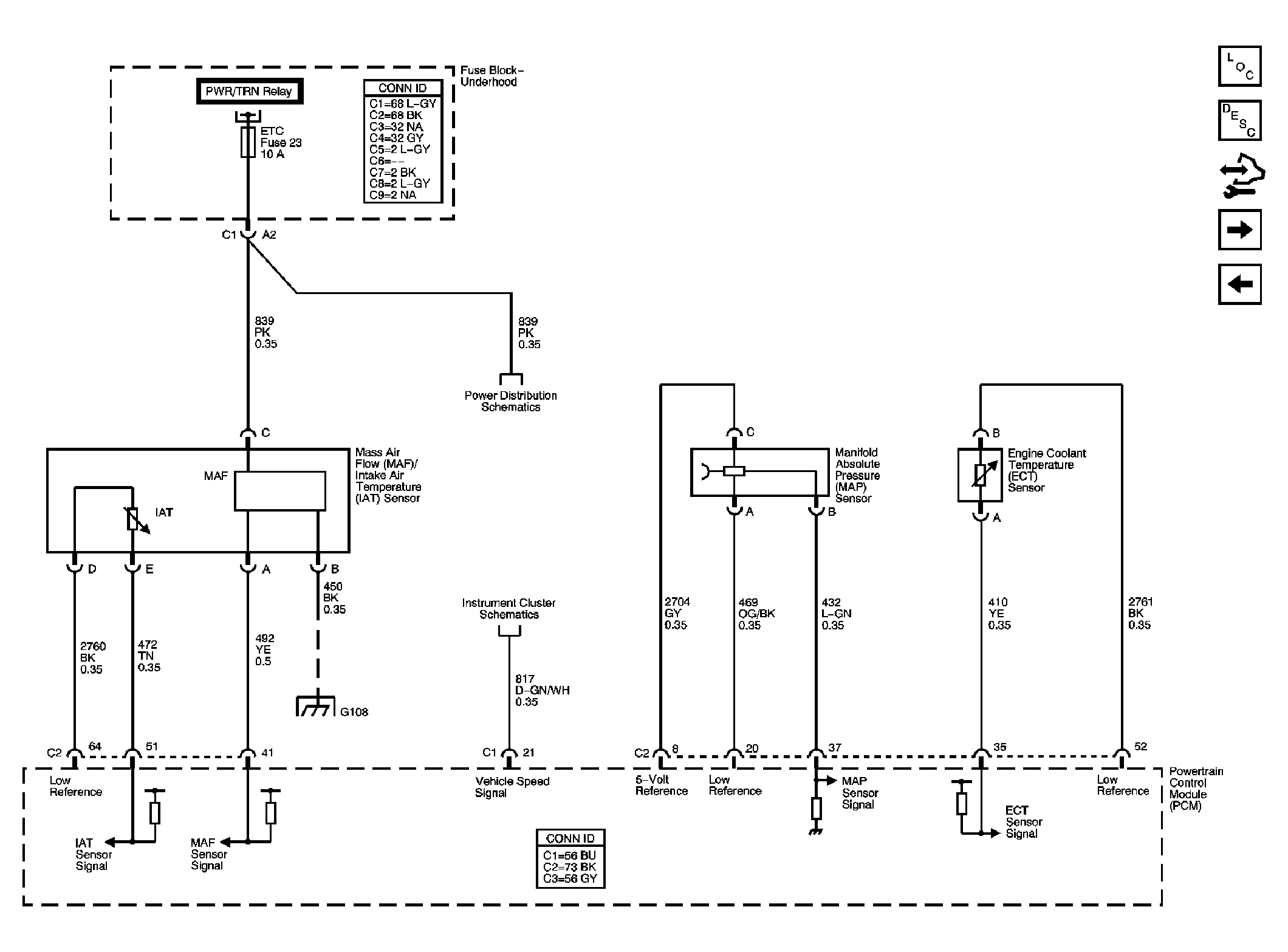

Fig 4: Engine Data Sensors Schematic - Pressure & Temperature

Courtesy of GENERAL MOTORS CORP.

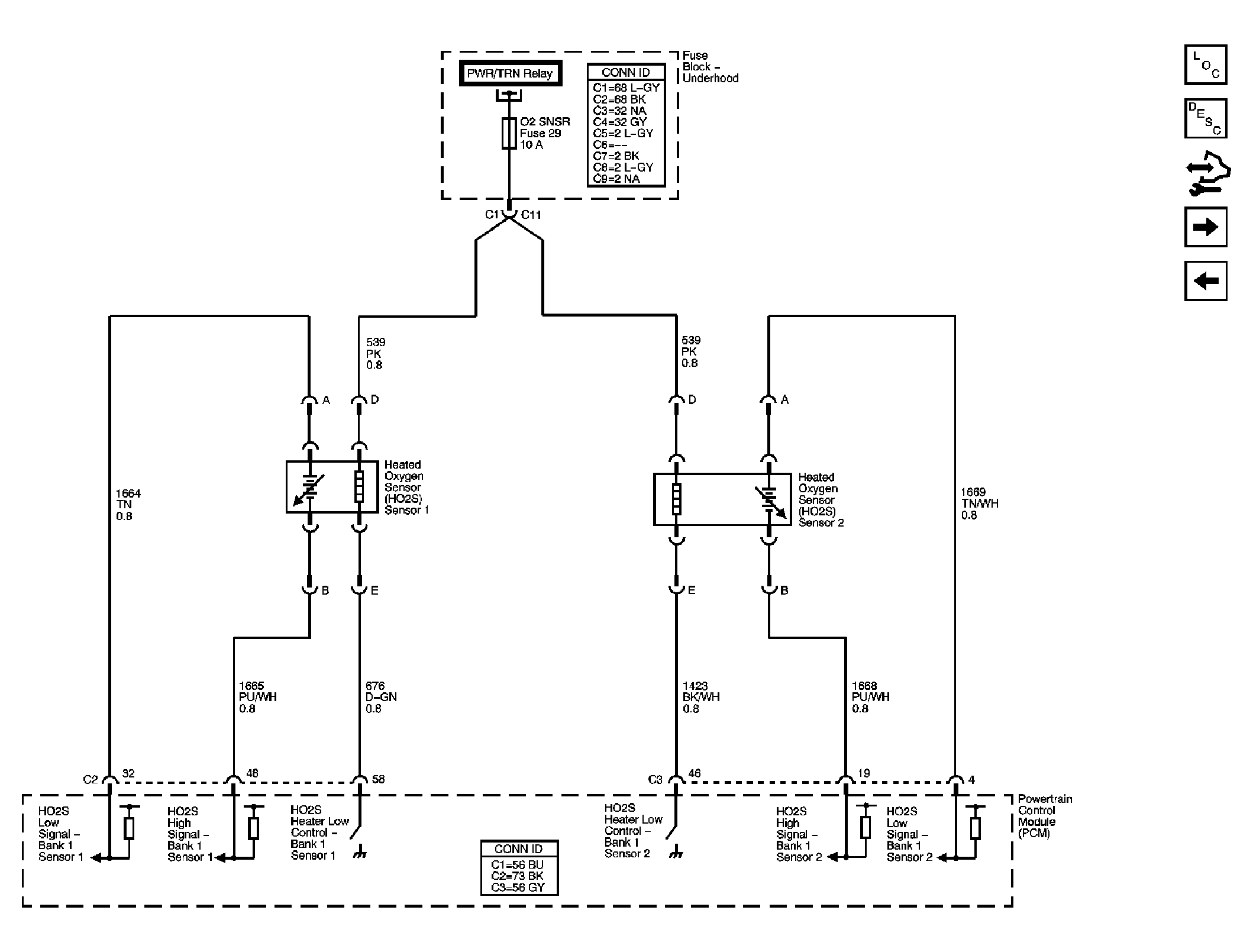

Fig 5: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

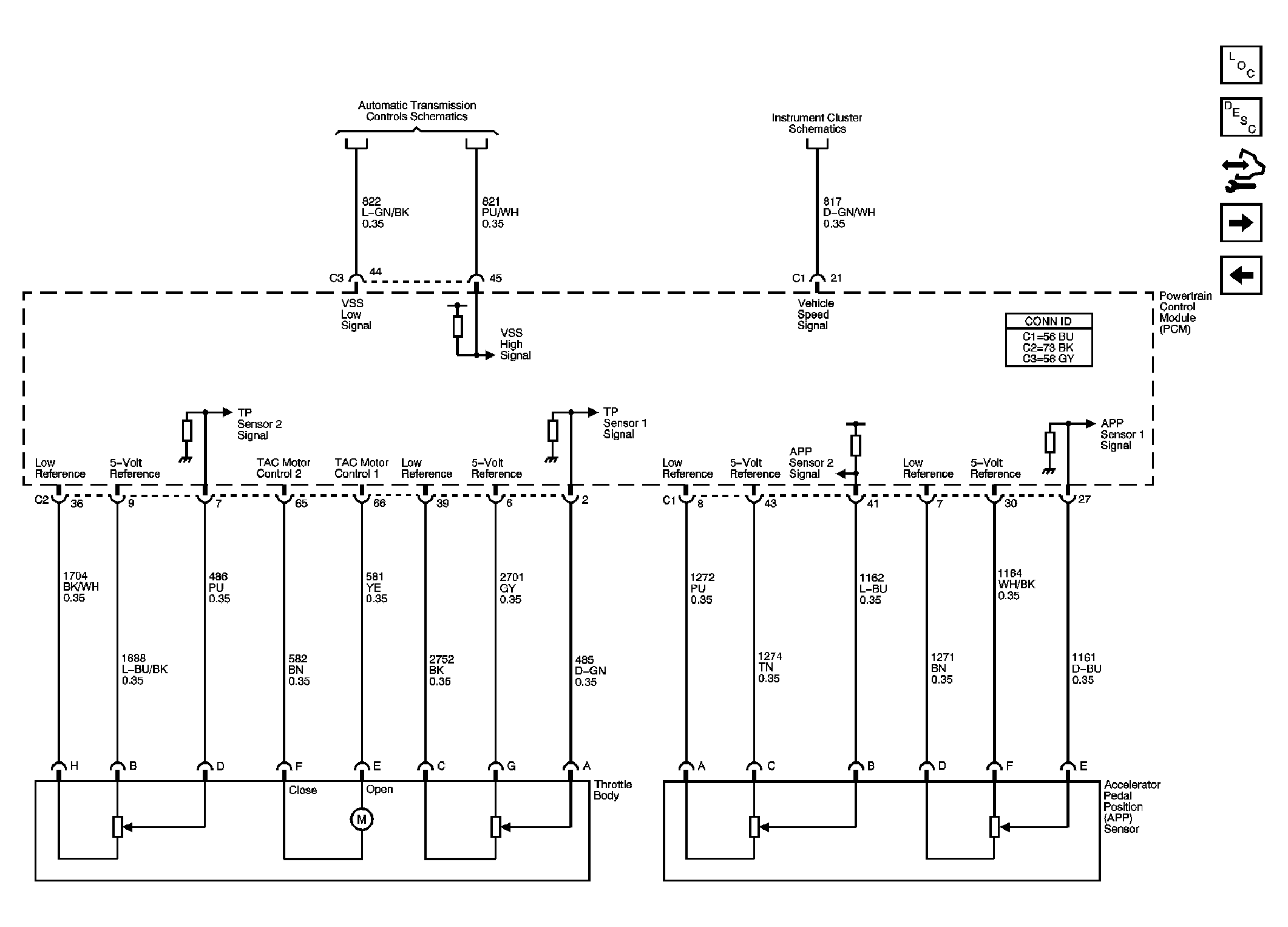

Fig 6: Engine Data Sensors Schematic - Throttle Actuator Control & VSS

Courtesy of GENERAL MOTORS CORP.

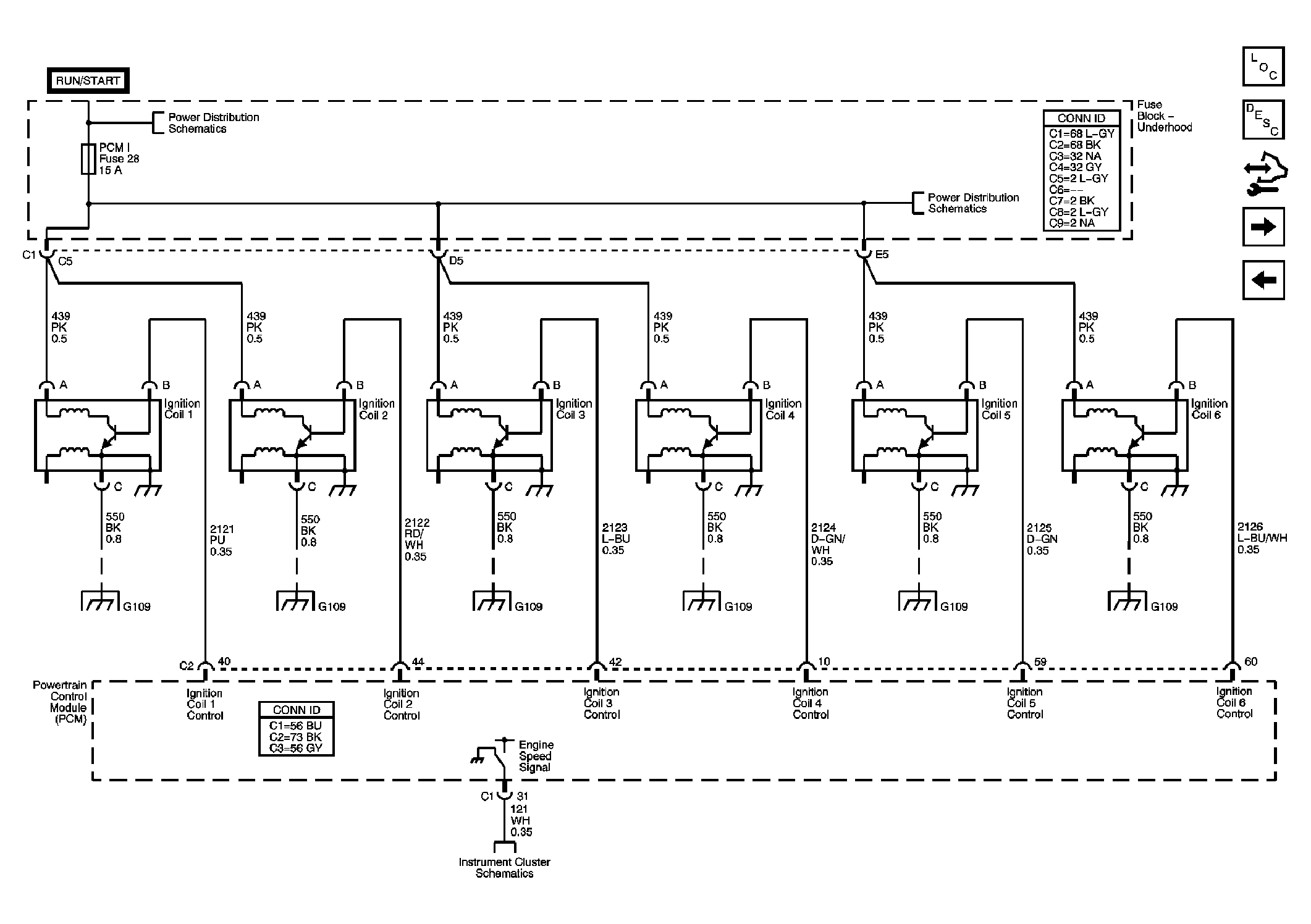

Fig 7: Ignition Controls Schematic - Ignition Coils

Courtesy of GENERAL MOTORS CORP.

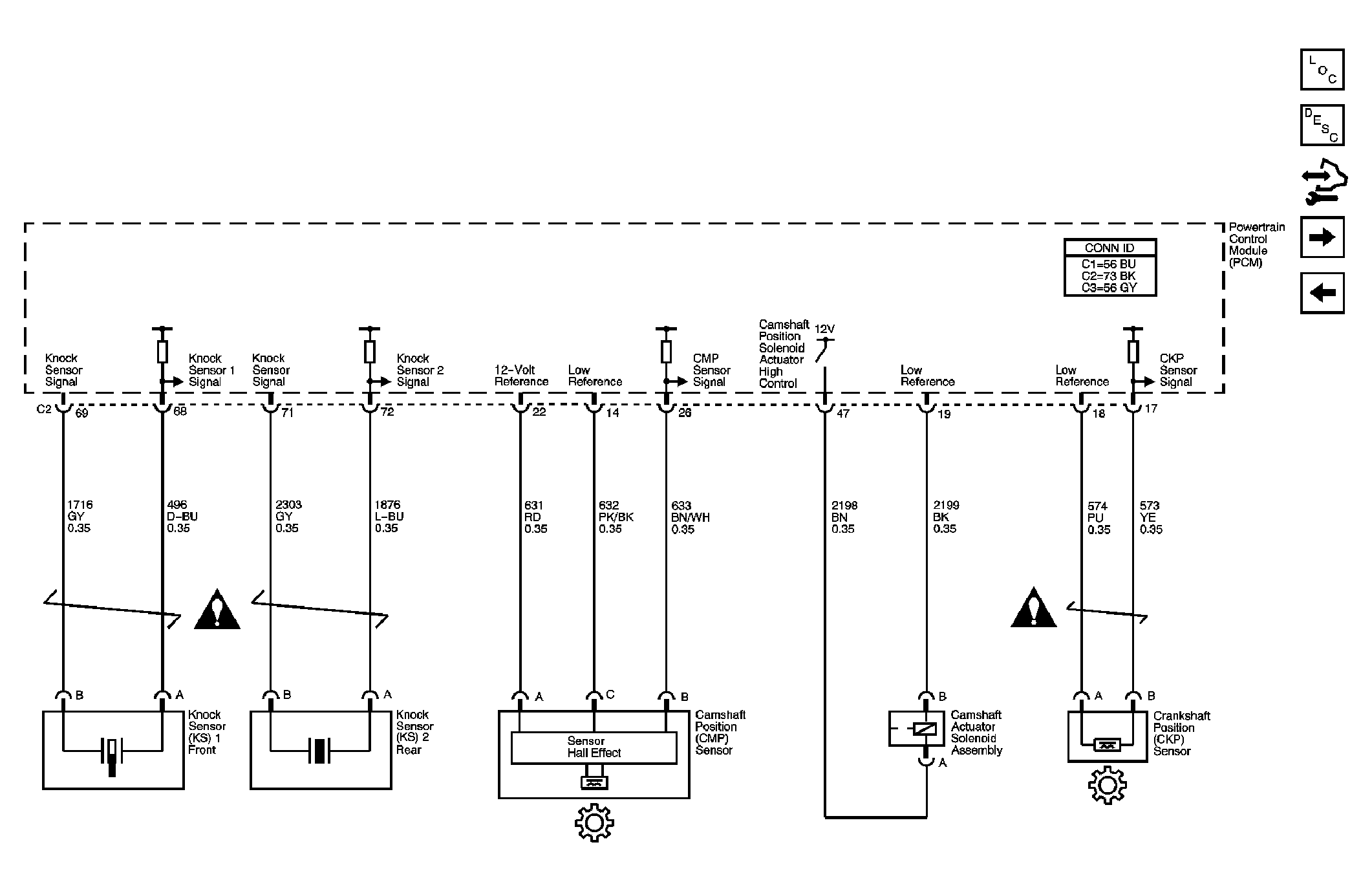

Fig 8: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

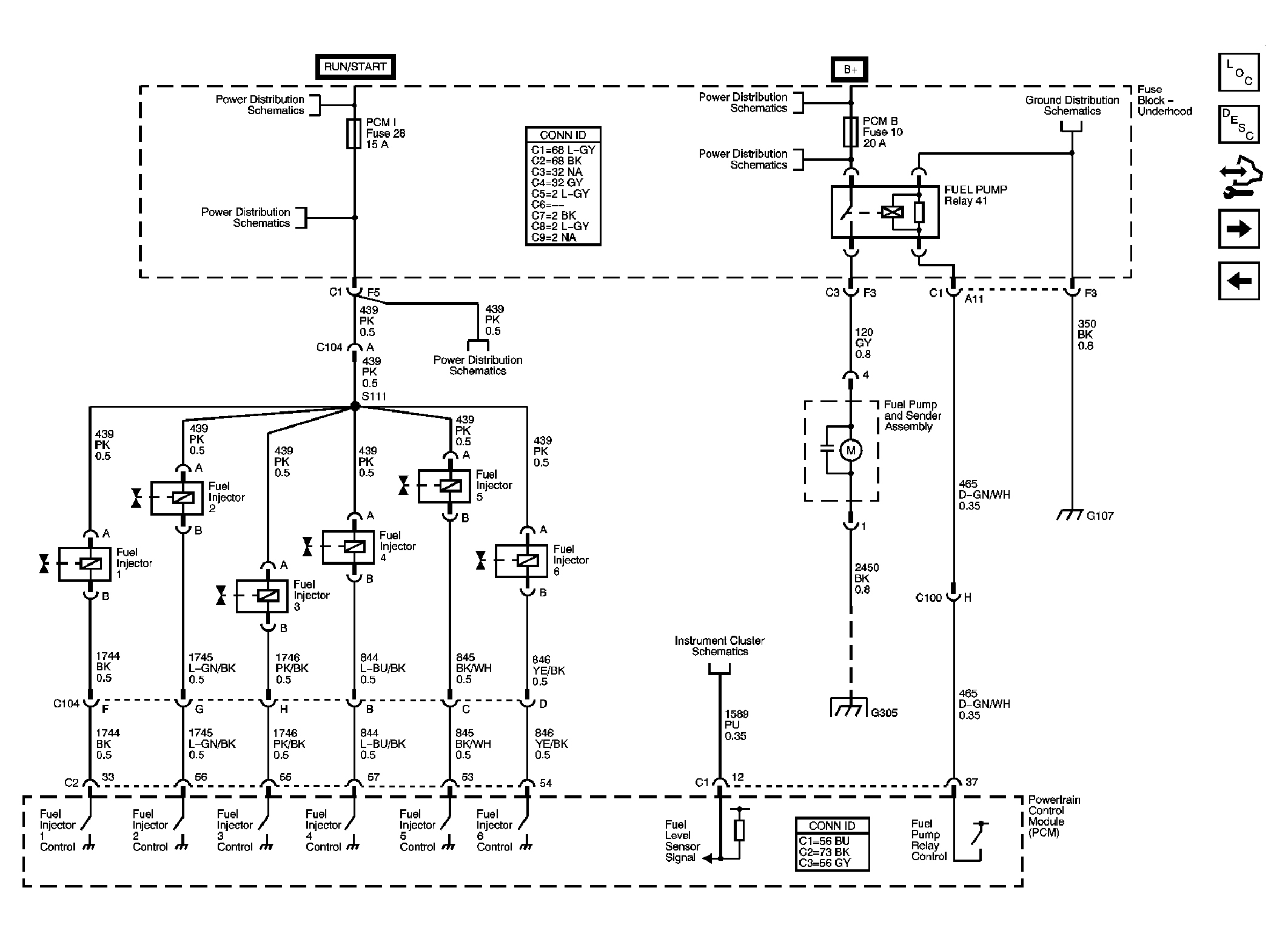

Fig 9: Fuel Controls Schematic - Fuel Pump & Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

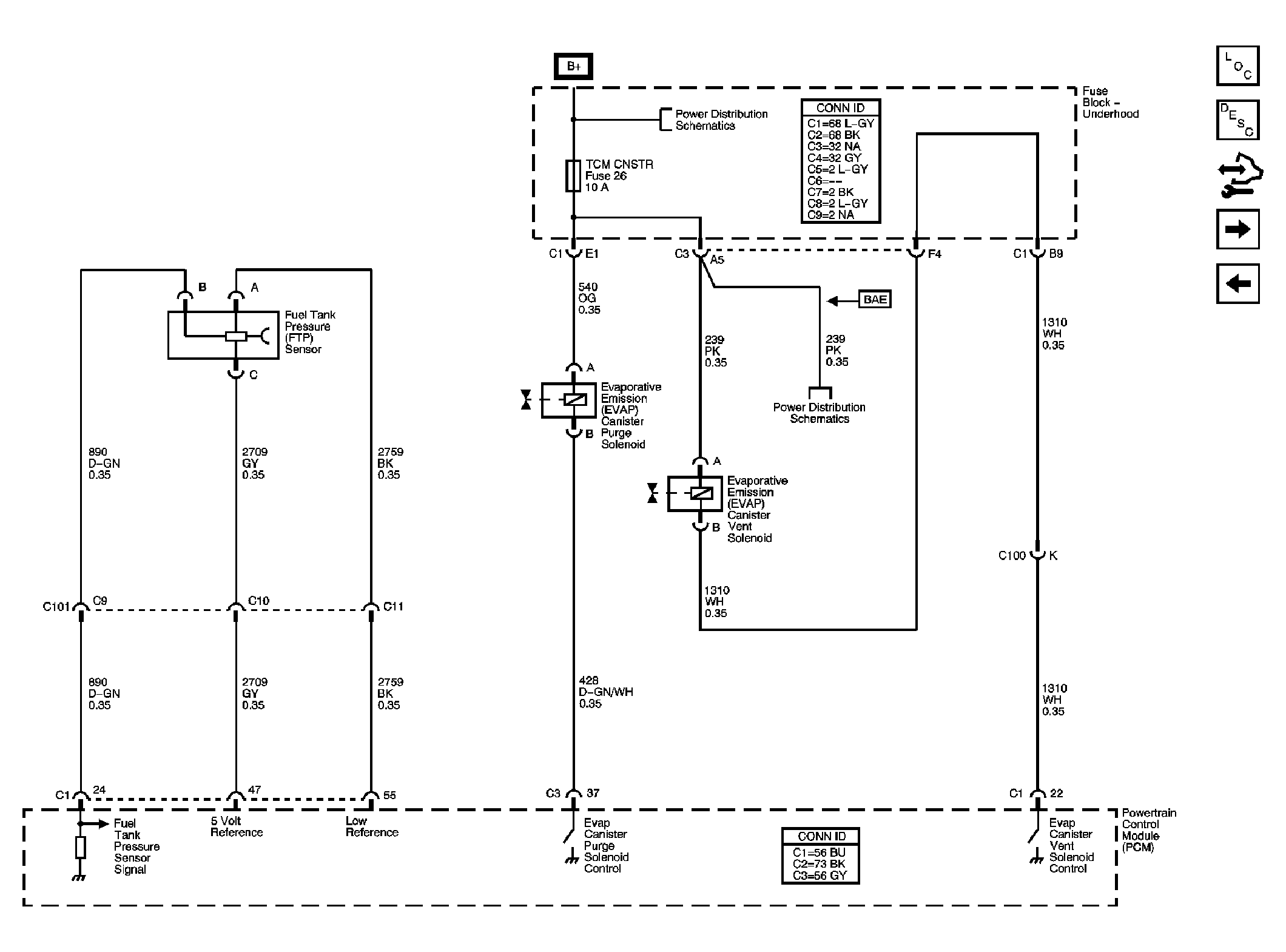

Fig 10: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

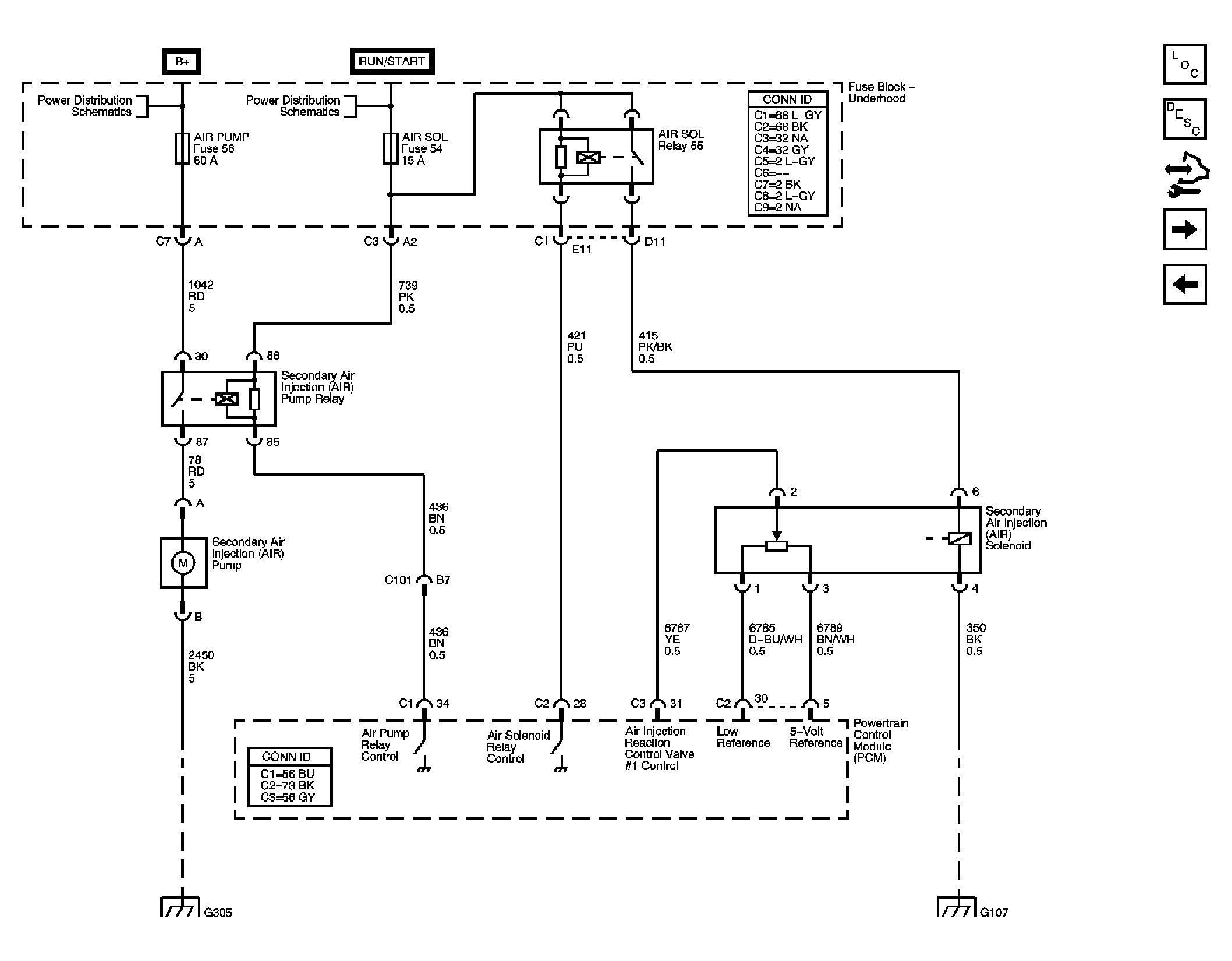

Fig 11: Device Controls Schematic - K18

Courtesy of GENERAL MOTORS CORP.

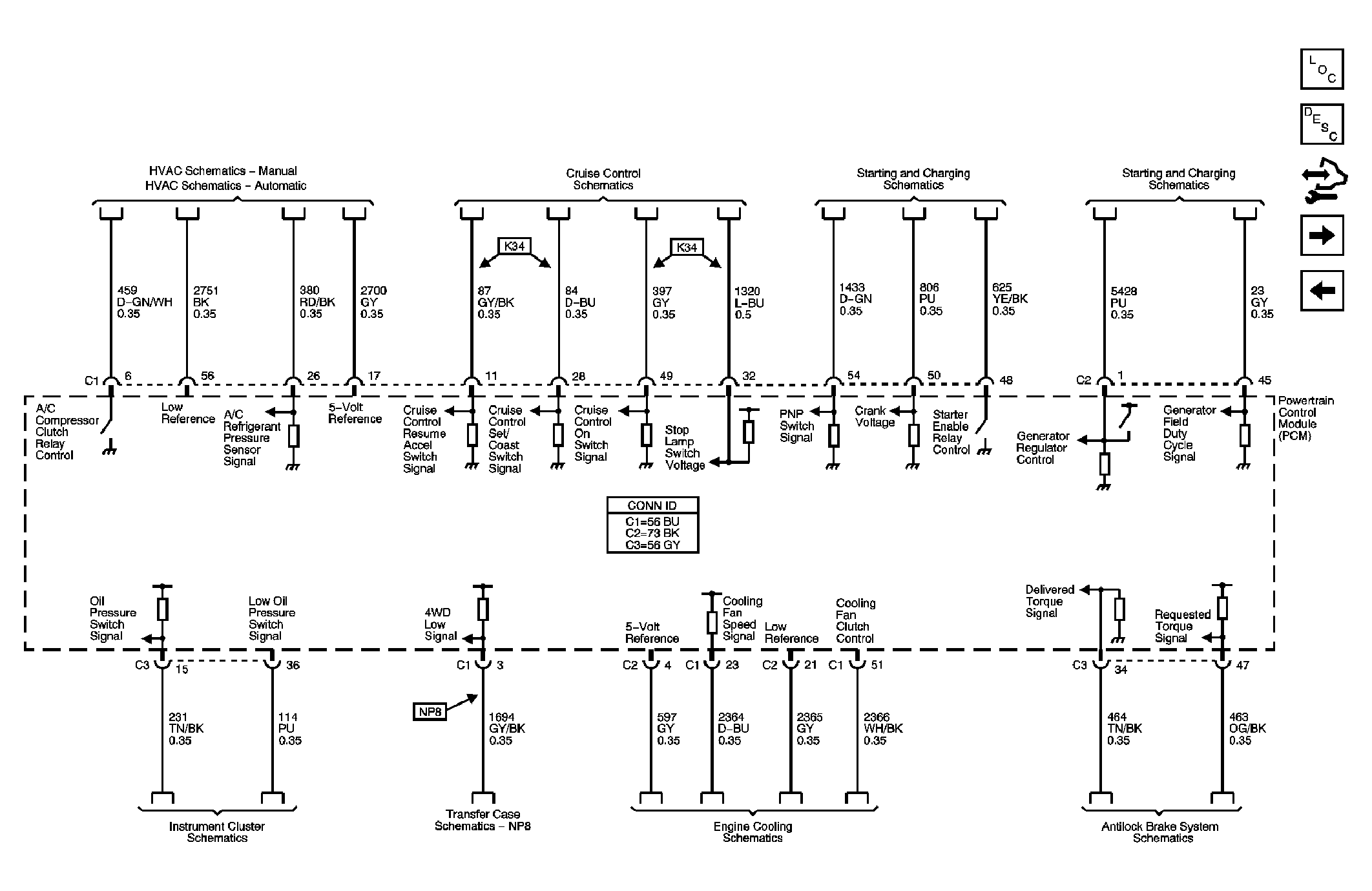

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

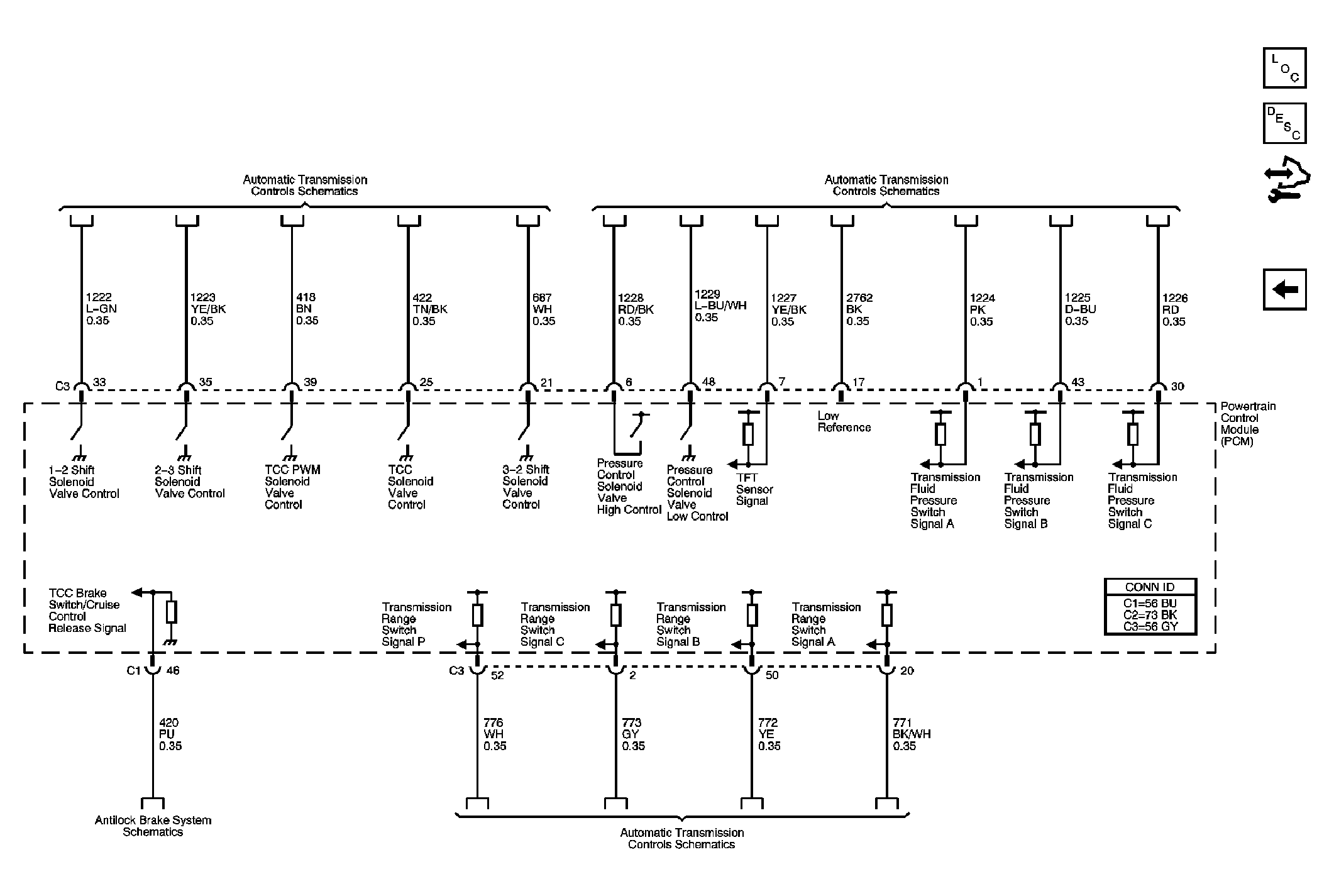

Fig 13: Transmission Control References Schematic - A/T

Courtesy of GENERAL MOTORS CORP.
