Installation Procedure
WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Install the air supply line to the air spring. Ensure the air supply line is fully seated.

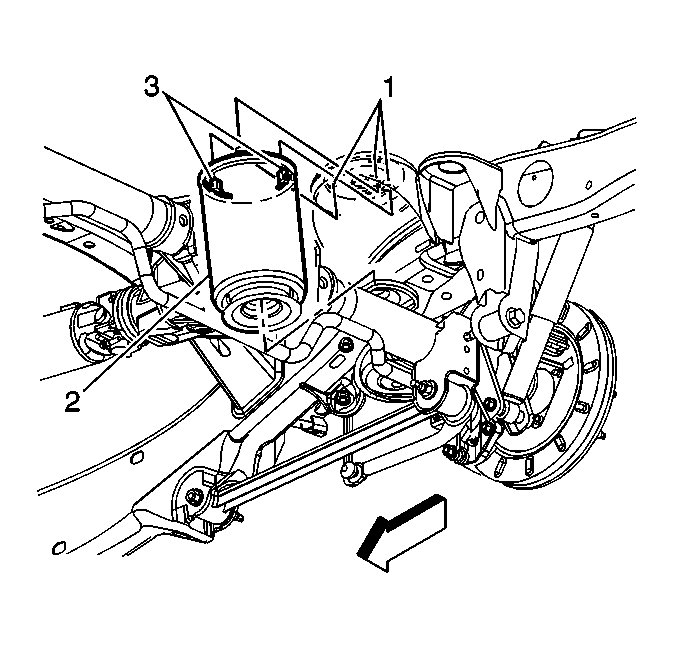

- Install the air spring (2) to the frame by aligning the mounting tabs (3) with the keyhole slots (1) in the upper spring seat.
- Apply upward pressure to the air spring (2) and rotate clockwise until the anti rotation peg snaps into place.
- Lower the vehicle slightly below the correct D-height position.
- Install the air suspension system fuse.
- Turn ON the ignition, engine OFF. Allow the air suspension compressor to run for approximately 1 minute to ensure that the air suspension is functioning properly.
- Inspect the D height. Refer to Trim Height Inspection .
CAUTION:
Ensure that the air spring is fully seated and properly positioned on the axle pilot. Failure to properly position the air spring may cause the air spring to break apart, possibly resulting in personal injury or damage to the vehicle.
IMPORTANT:
After the air suspension has been depressurized, DO NOT allow the vehicle to be completely lowered onto the rear jounce bumpers.
IMPORTANT:
When the air springs are completely deflated, an additional ignition cycle may be required to allow the compressor to completely inflate the air springs.
