Removal Procedure

IMPORTANT: Use care when handling the mass air flow/intake air temperature (MAF/IAT) sensor. Do not dent, puncture or otherwise damage the honeycell located at the air inlet end of the MAF/IAT. Do not touch the sensing elements or allow anything including cleaning solvents and lubricants to come in contact with them. Use a small amount of a non-silicone based lubricant, on the air duct only, to aid in installation.

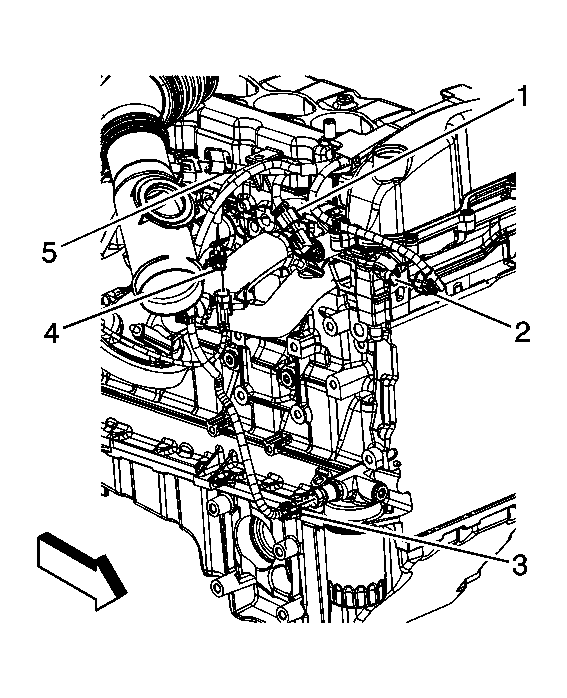

    Fig 1: Identifying MAF/IAT Sensor Harness Connector
    GM1656804Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine harness electrical connector (5) from the MAF/IAT sensor.
    2. Fig 2: Identifying MAF/IAT Sensor Screws
    GM1656806Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAF/IAT sensor screws.
  3. Remove the MAF/IAT sensor.
