Installation Procedure

WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.

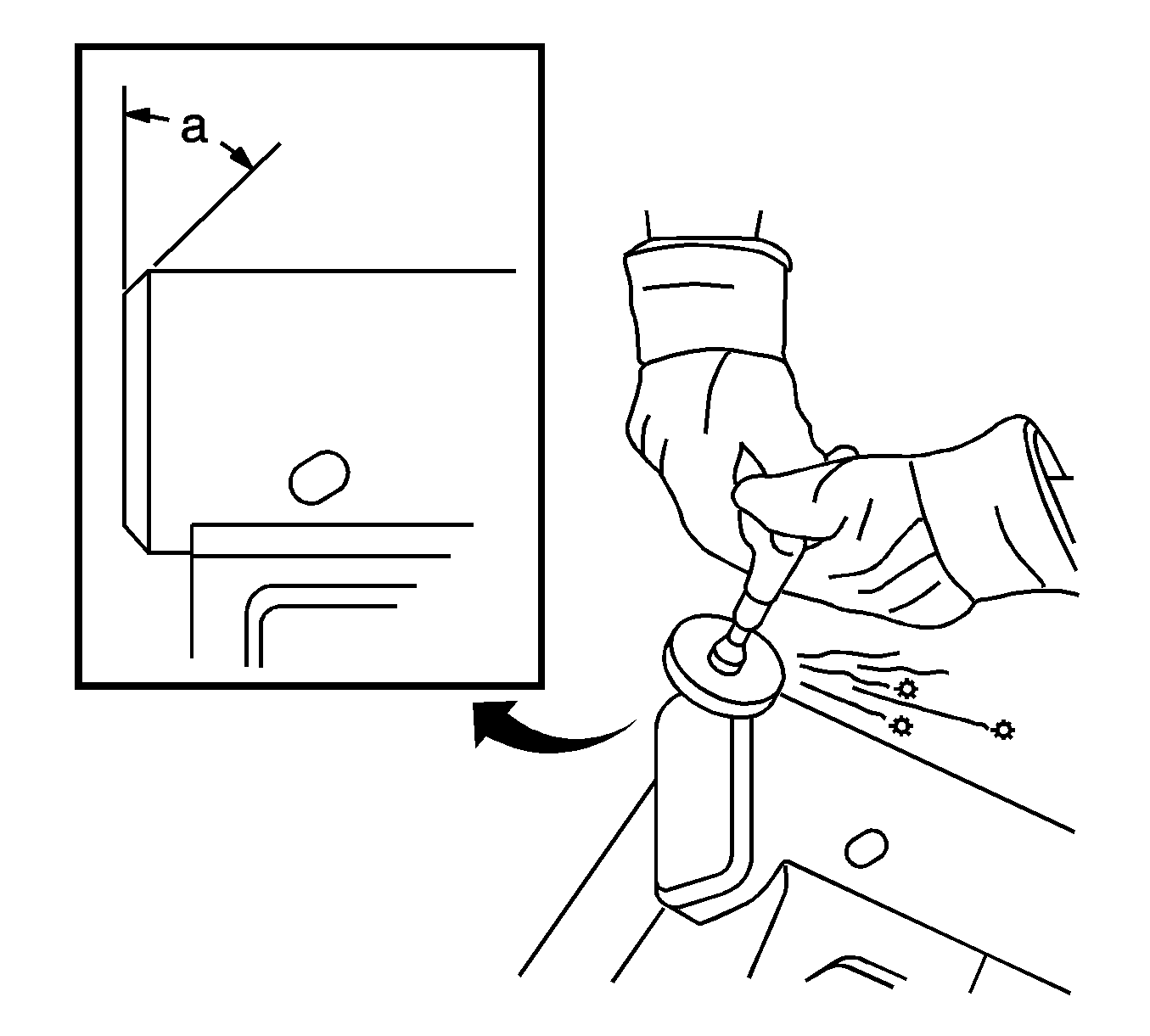

Fig 1: Grinding Existing Frame Rail Seam To Taper Seam

Courtesy of GENERAL MOTORS CORP.

Grind the existing frame rail seam to taper seam at a 45 degree angle.
Prepare all of the attaching surfaces as necessary.
Apply the weld-thru primer to all of the welded surfaces.

Fig 2: Installing Service Frame Section To Existing Frame

Courtesy of GENERAL MOTORS CORP.

Position the service frame section to the existing frame and clamp in place.

Fig 3: Welding Upper And Lower Horizontal Joints From Corner To Corner

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Verify the frame measurements 3-dimensionally to ensure proper position of the service frame.

Continuous-weld the upper and lower horizontal joints from corner to corner.

Fig 4: Welding Inner And Outer Vertical Joints From Corner To Corner

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Verify the frame measurements 3-dimensionally to ensure proper position of the service frame.

Continuous-weld the inner and outer vertical joints from corner to corner.

Fig 5: View Of Front Frame Rail Section

Courtesy of GENERAL MOTORS CORP.

Clean and prepare all of the welded surfaces.
Install all of the related panels and components.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Enable the SIR system. Refer to SIR Disabling and Enabling .
