Electrical Symbols



ELECTRICAL SYMBOLS

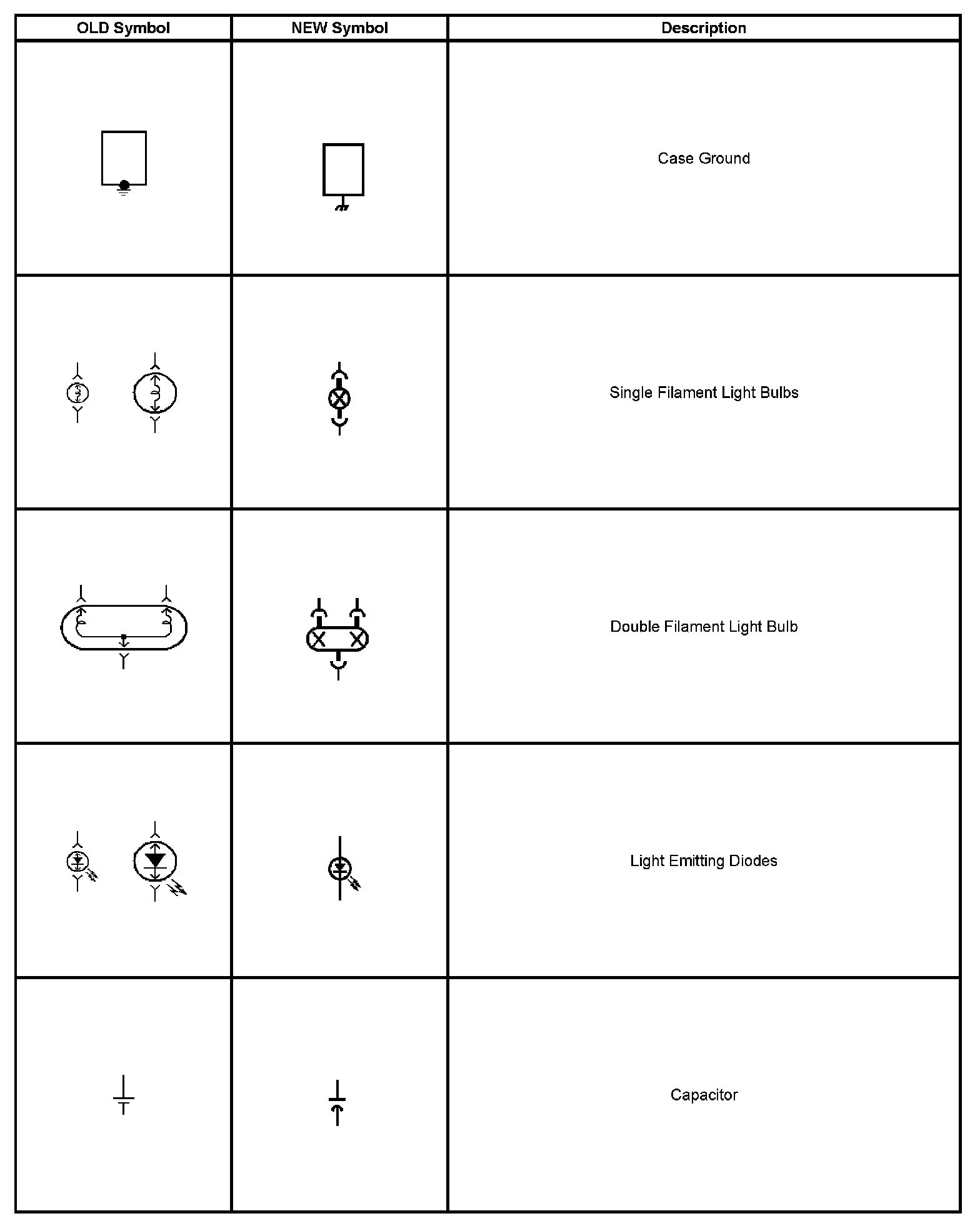

Electrical Symbols (Part 1):

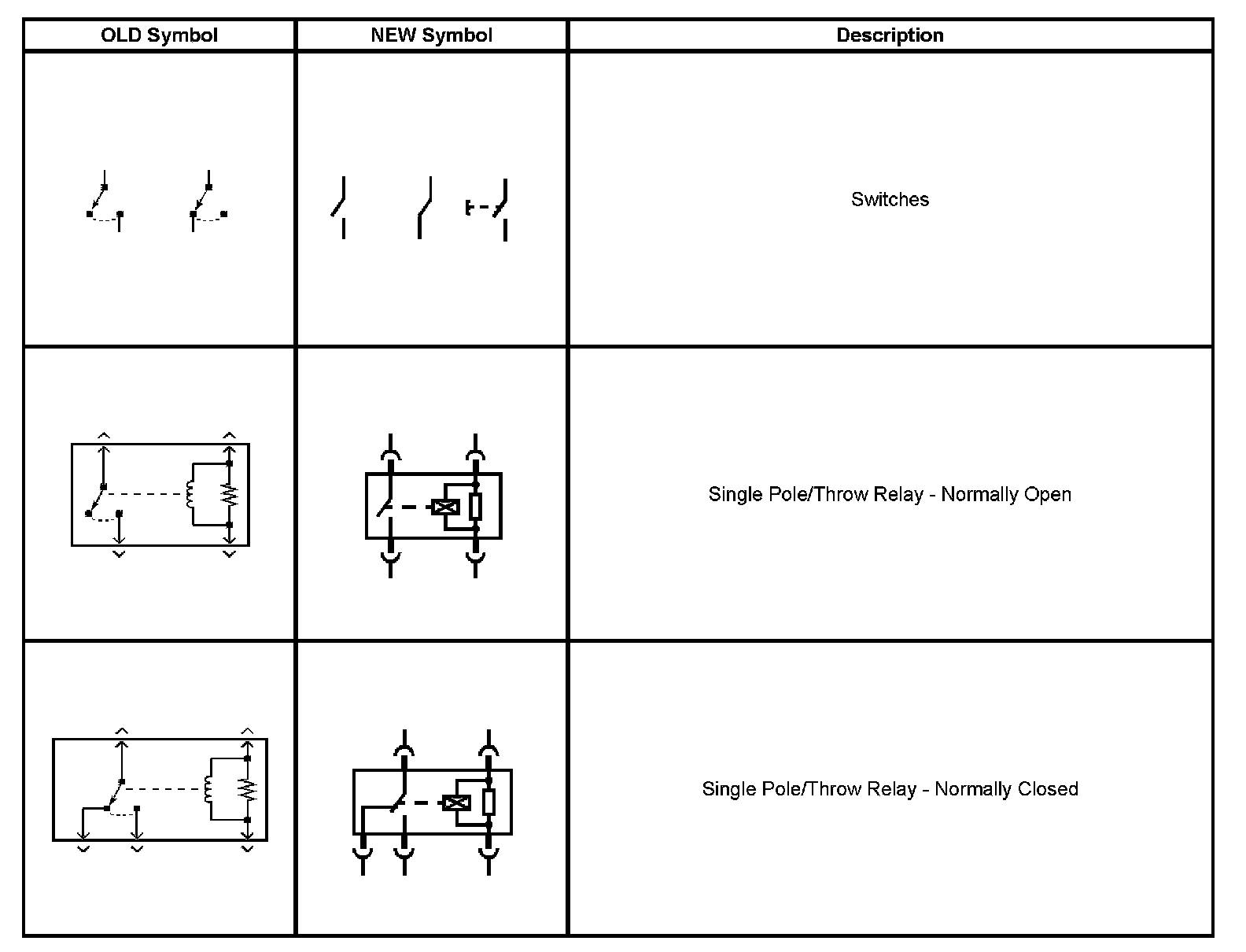

Electrical Symbols (Part 2):

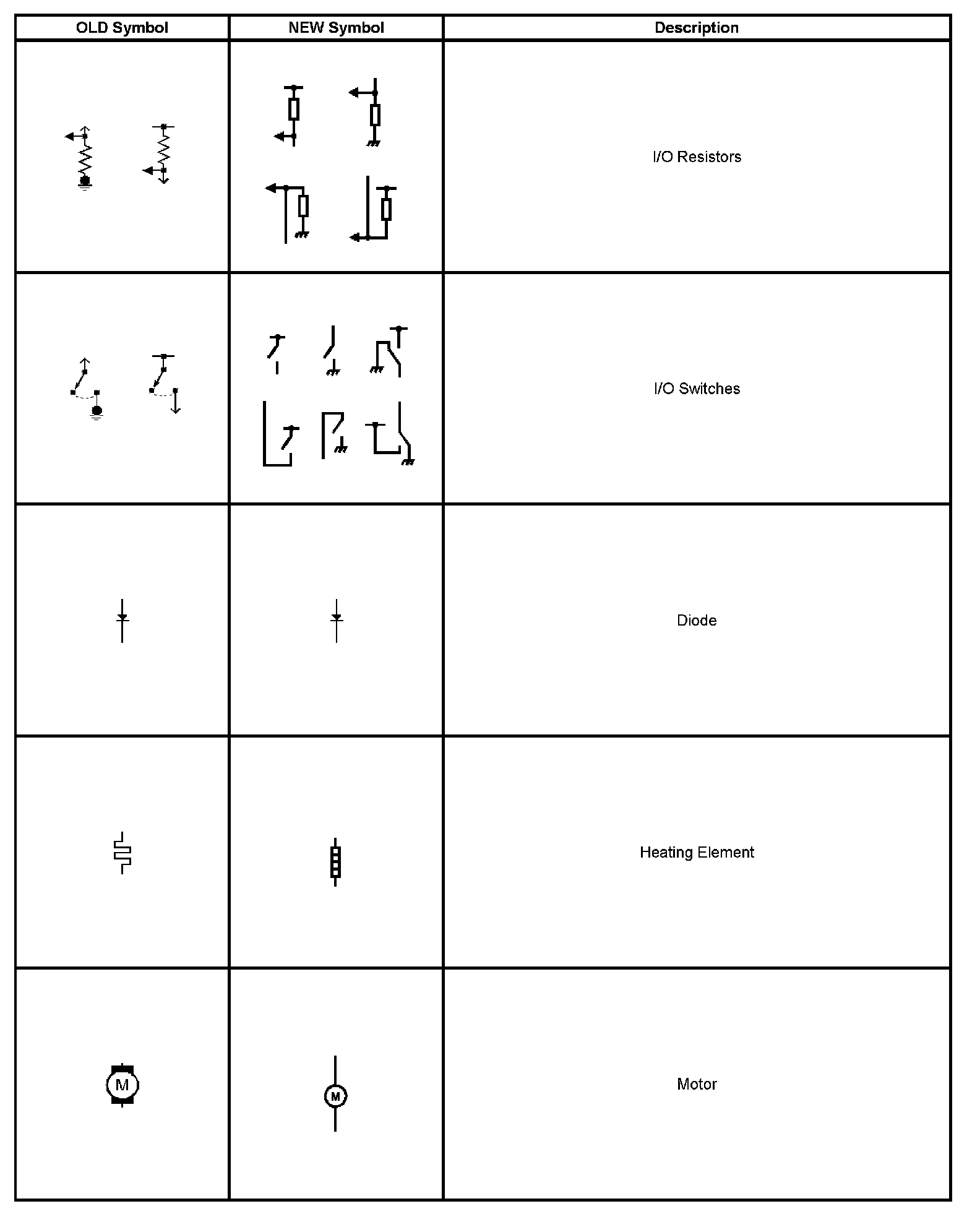

Electrical Symbols (Part 3):

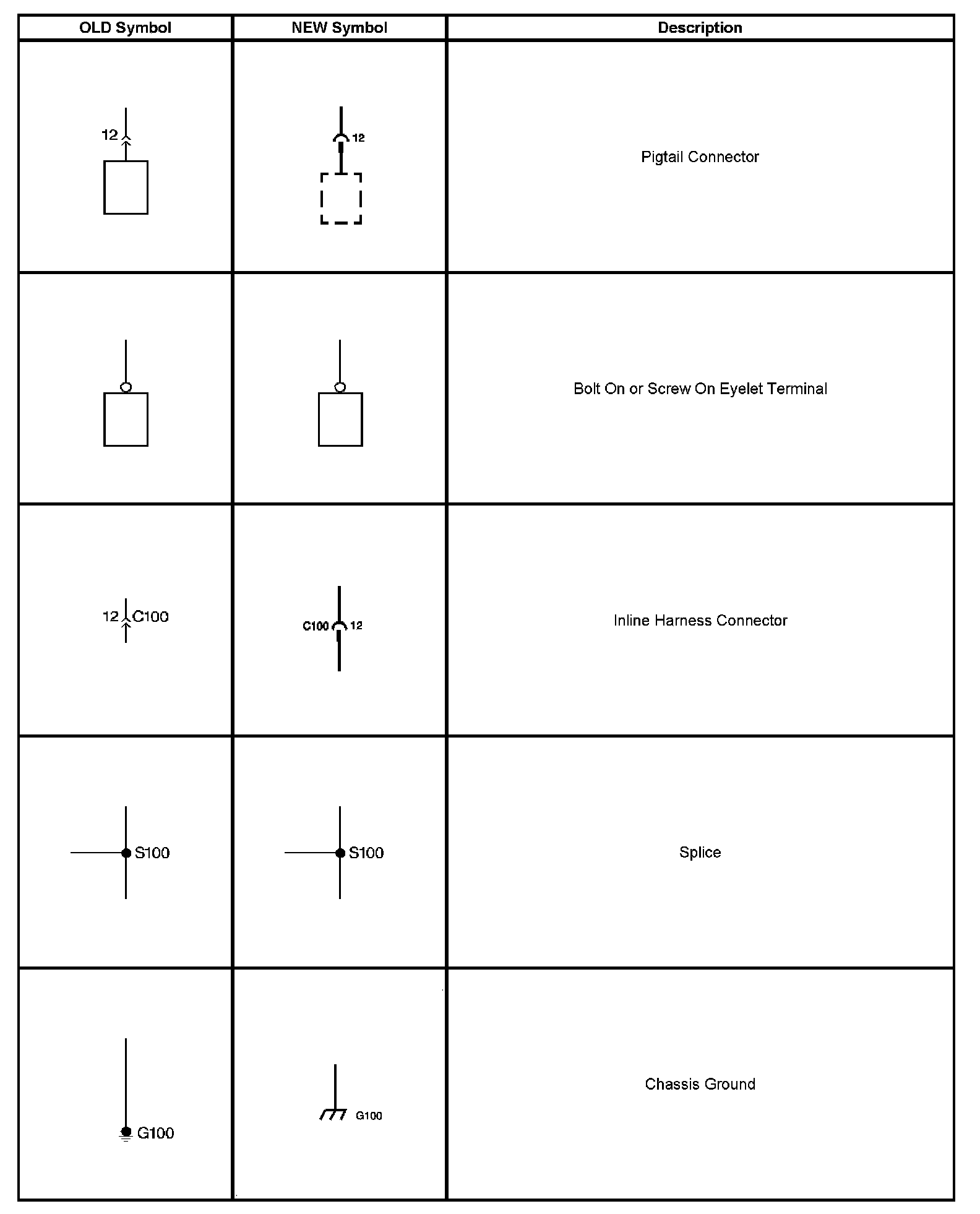

Electrical Symbols (Part 4):

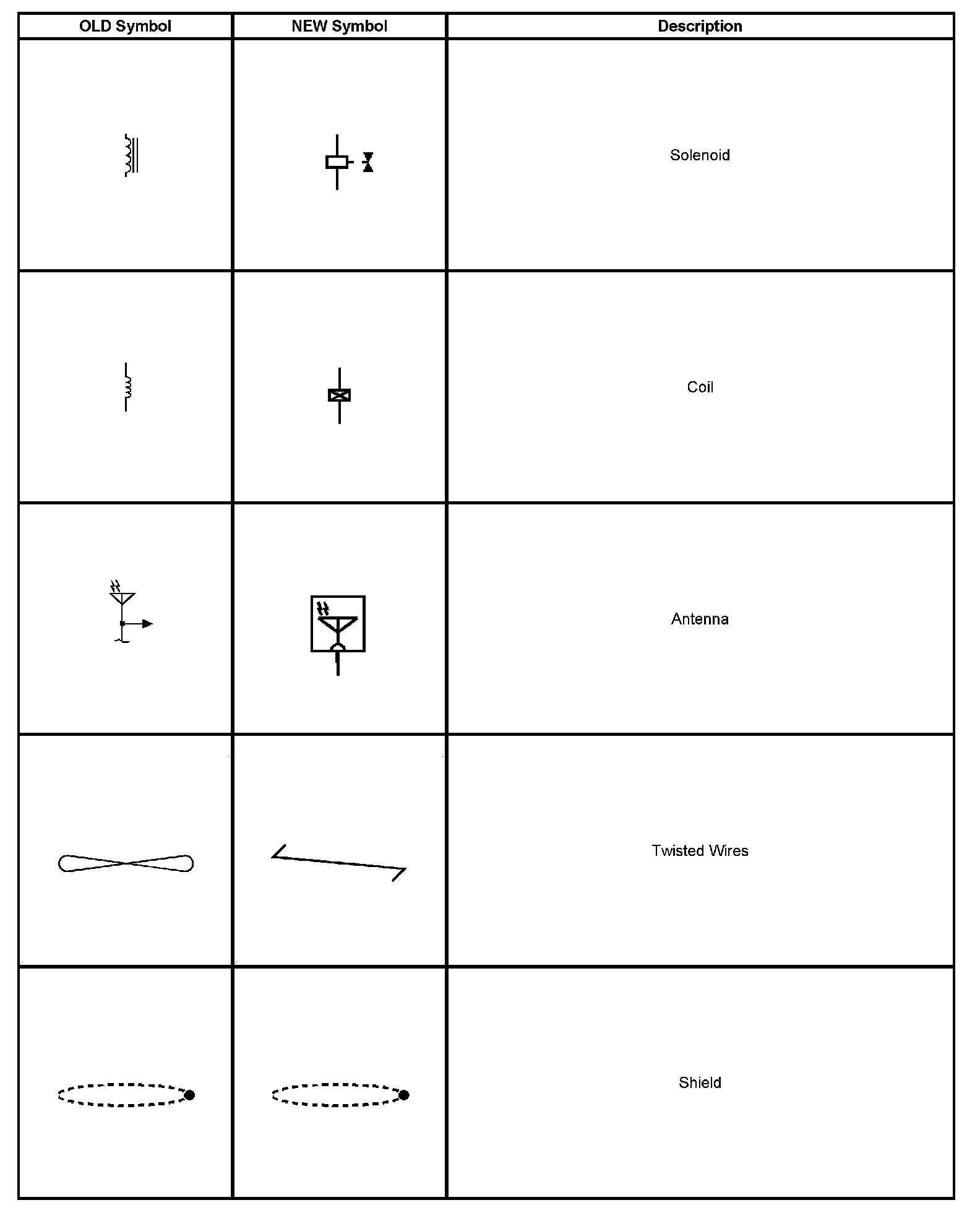

Electrical Symbols (Part 5):

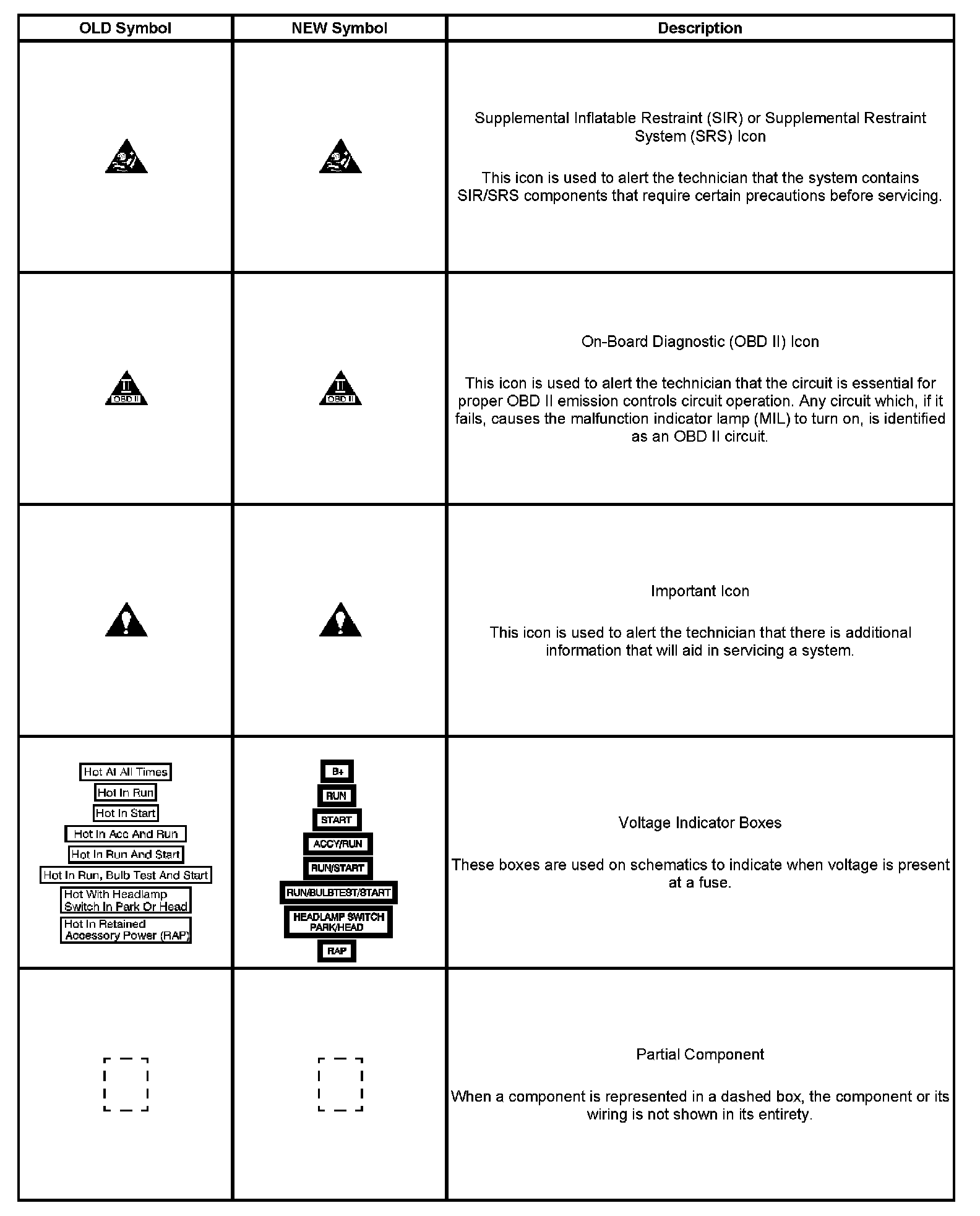

Electrical Symbols (Part 6):

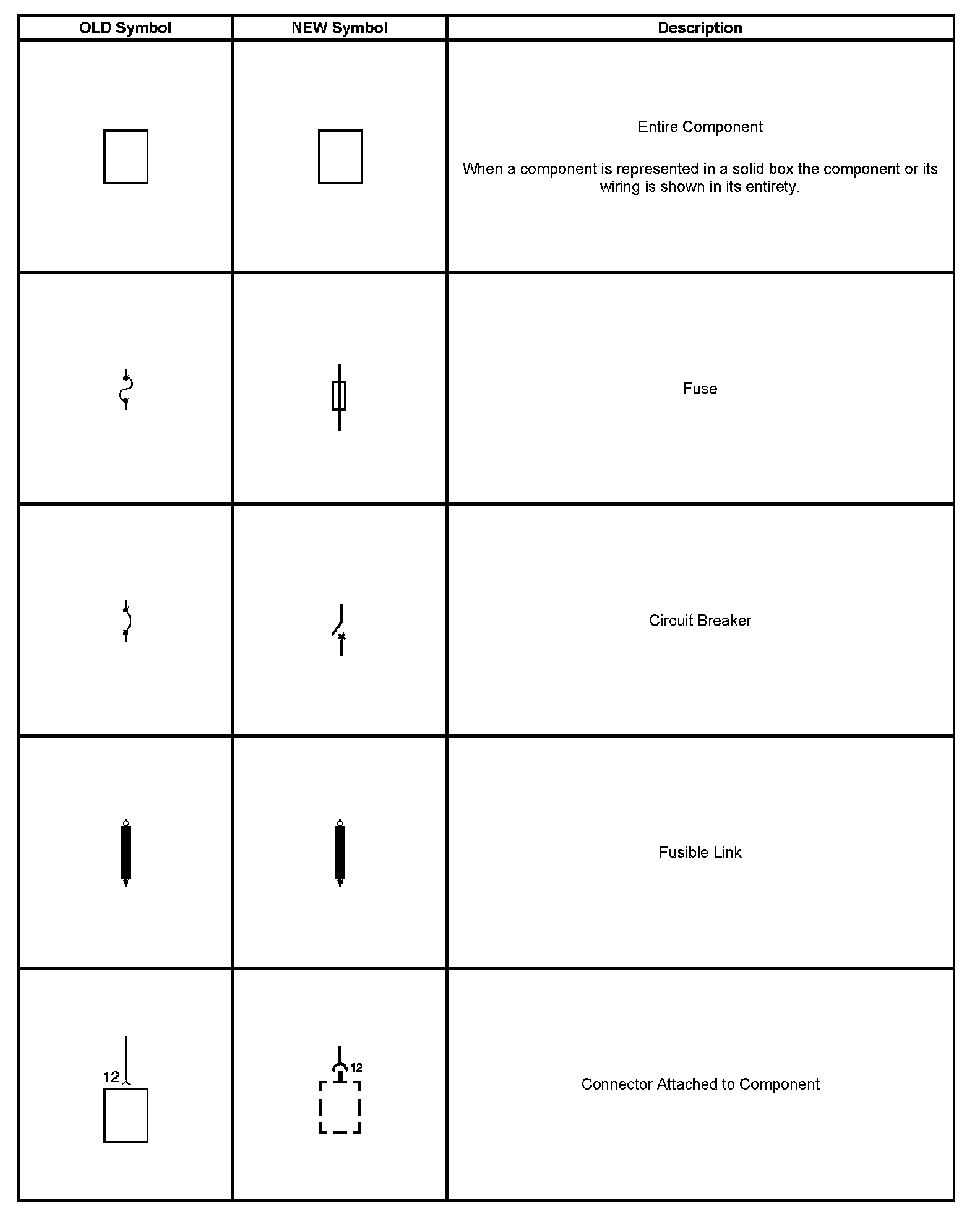

Electrical Symbols (Part 7):




Electrical Symbols (Part 8):
