Steering Wheel Secondary/Configurable Control Schematics

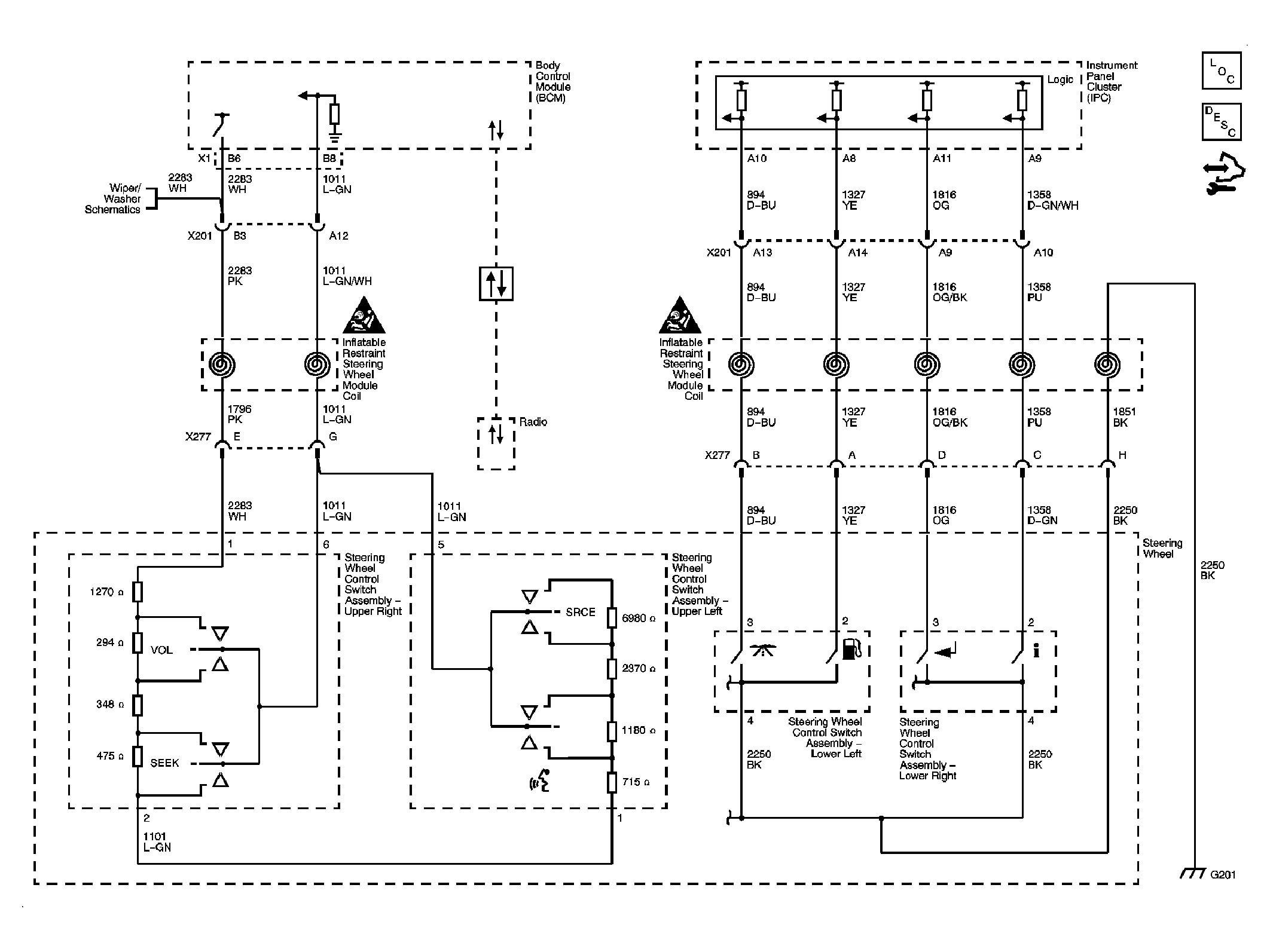

Fig 1: Steering Wheel Secondary/Configurable Control Schematic
GM1923865Courtesy of GENERAL MOTORS CORP.
