Removal

Magnetic Clutch Relay, Condenser Fan Relay and A/C Enable Relay

Removal

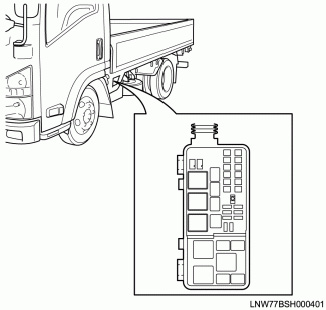

1. Fuse and relay box position

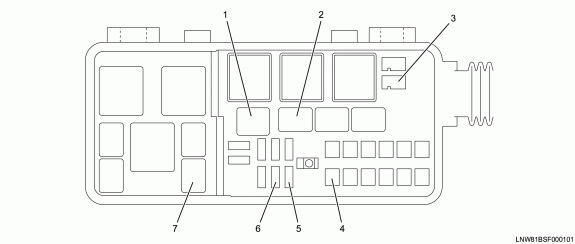

2. Disconnect the magnetic clutch relay (1), condenser fan relay (2) and A/C enable relay (7).






Legend
(1) Magnetic Clutch Relay
(2) Condenser Fan Relay
(3) A/C Diode
(4) HVAC Fuse
(5) A/C Fuse
(6) Condenser Fan Fuse
(7) A/C Enable Relay

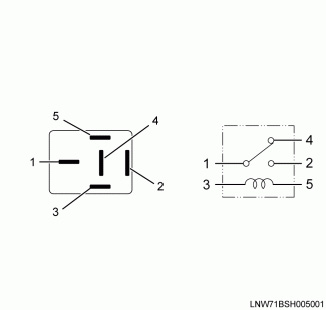

3. Check the conduction between the terminals of the magnetic clutch relay.

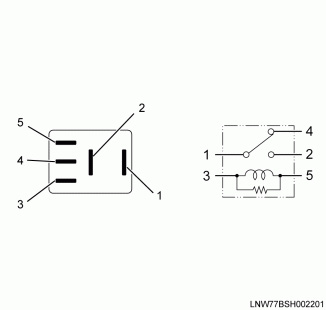

4. Check the conduction between the terminals of the condenser fan relay and A/C enable relay.
