Coolant Temperature Sensor/Switch (For Computer): Locations

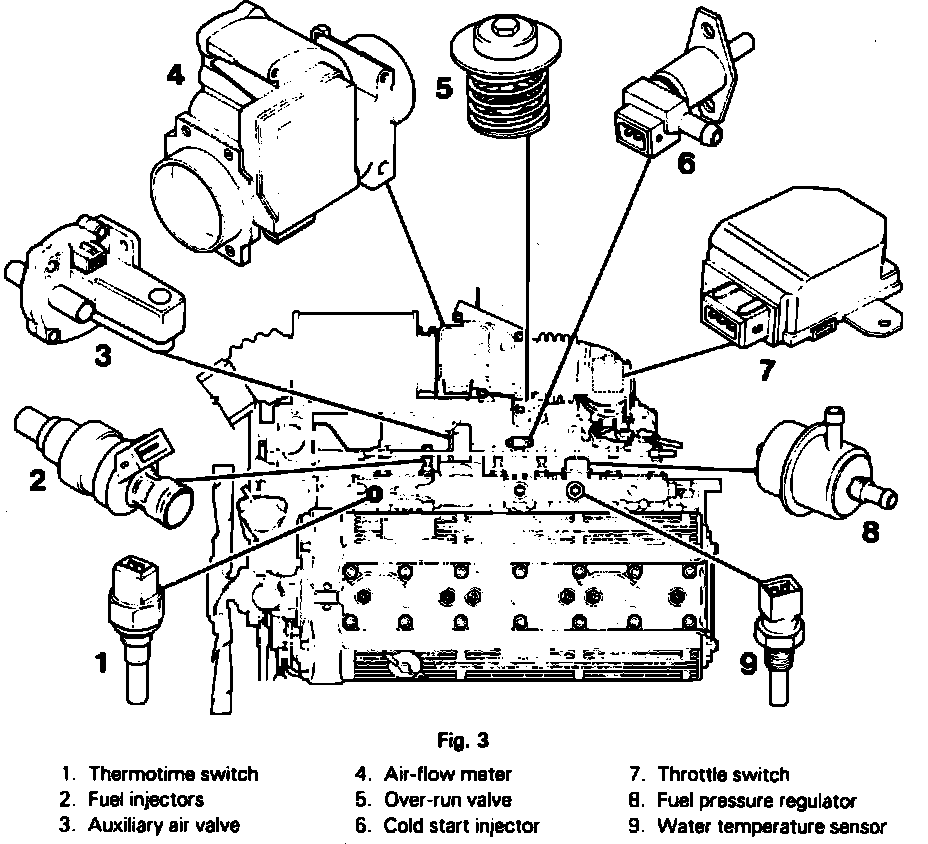

Engine Component Locations.:




LH Side Of Intake Manifold

Applicable to: XJ6
