Computers and Control Systems: Locations

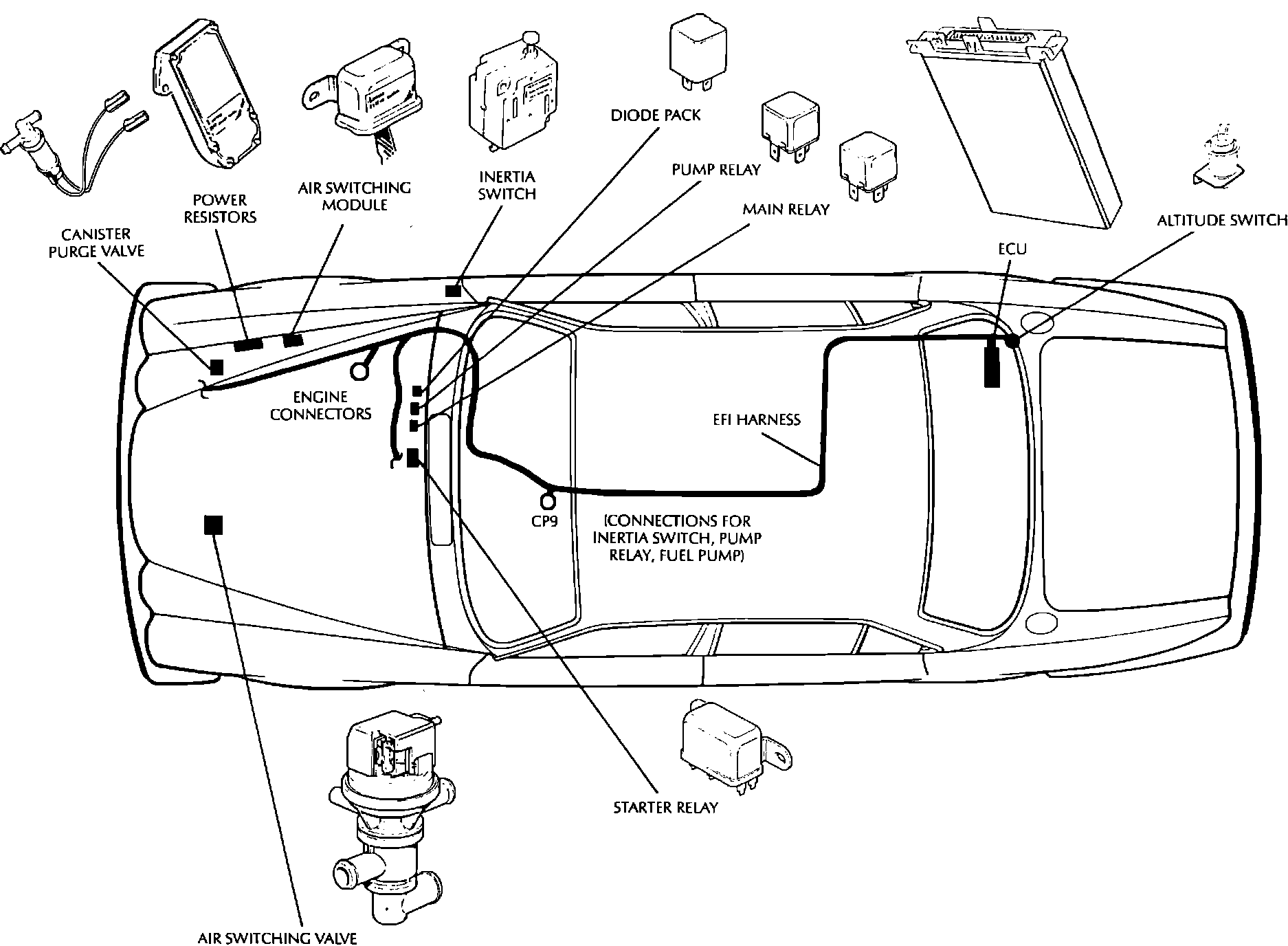

EFI & Emission Control Component Locations:

Component location & ID

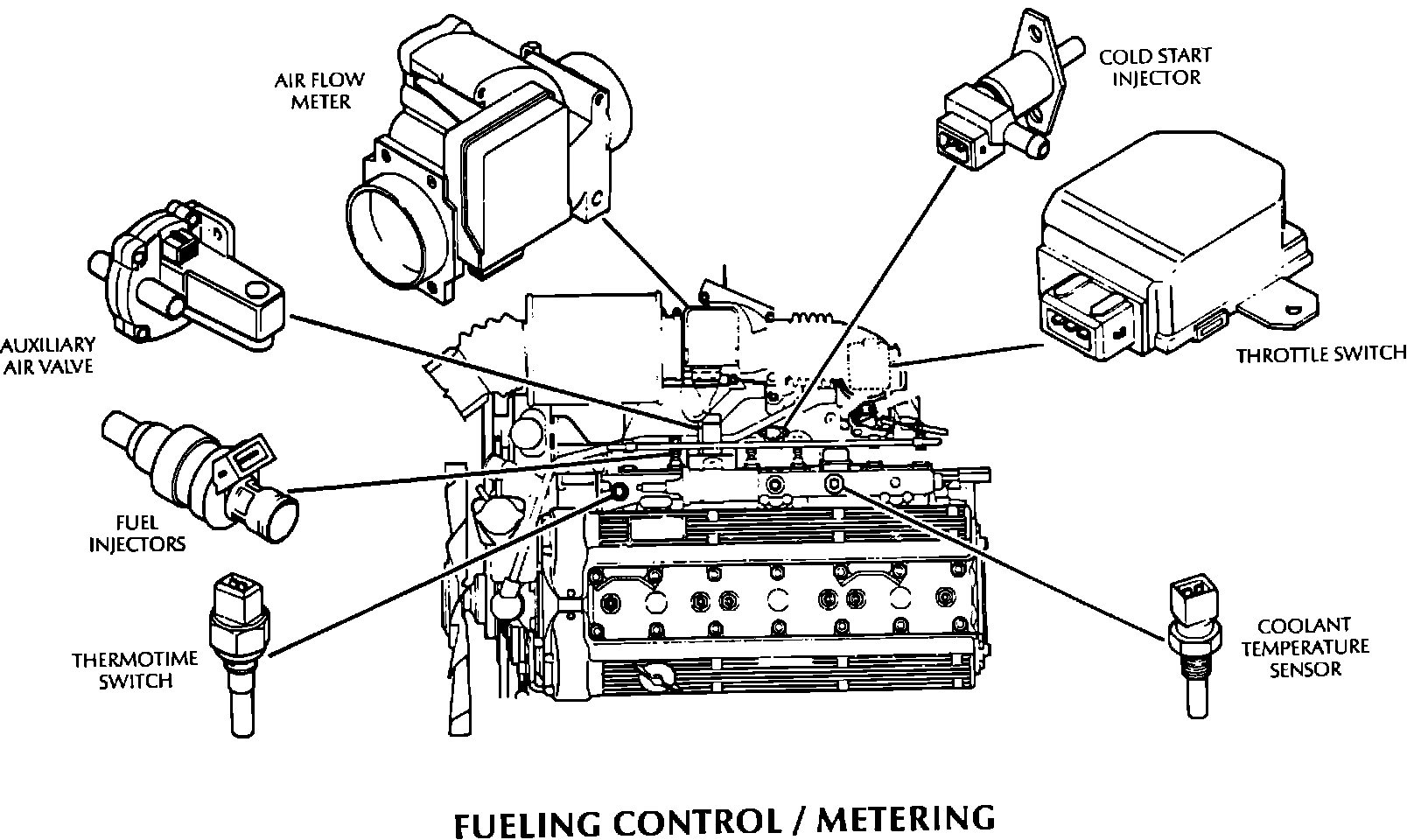

Fuel Metering & Control Component Locations:

Fuel control
