Ignition Control Module: Description and Operation

Amplifier AB 14

Amplifier:

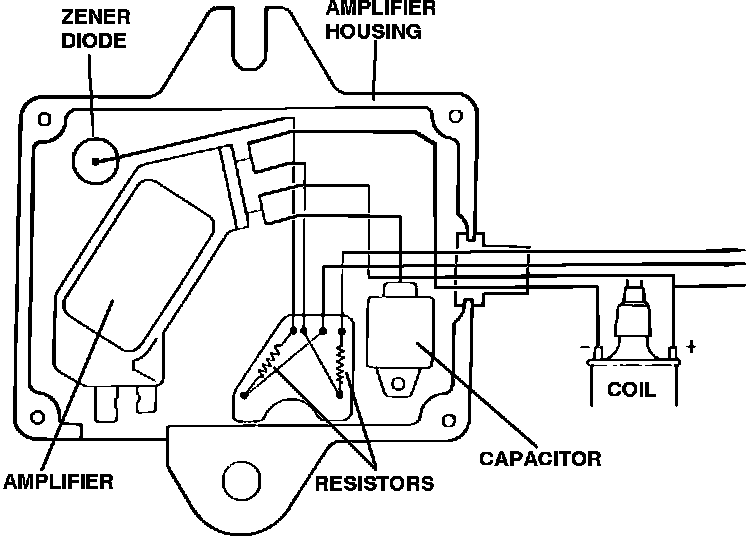

Fig. 3 Ignition Amplifier:

The amplifier consists of a solid state electronic module (GM) housed in an aluminium case with two pre-wired leads which connect to the low tension terminals of the ignition coil.

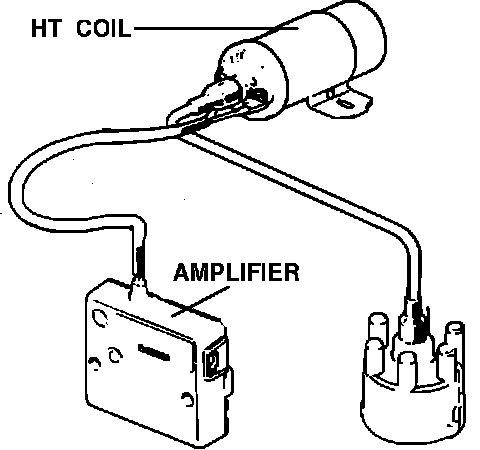

Ignition Components:

Connection from the distributor pick-up module is made by an assembly of two leads inside a screening braid which plugs into a socket on the amplifier side.
