Clearance and Design Specifications

Borg Warner 66 Transmission Specifications

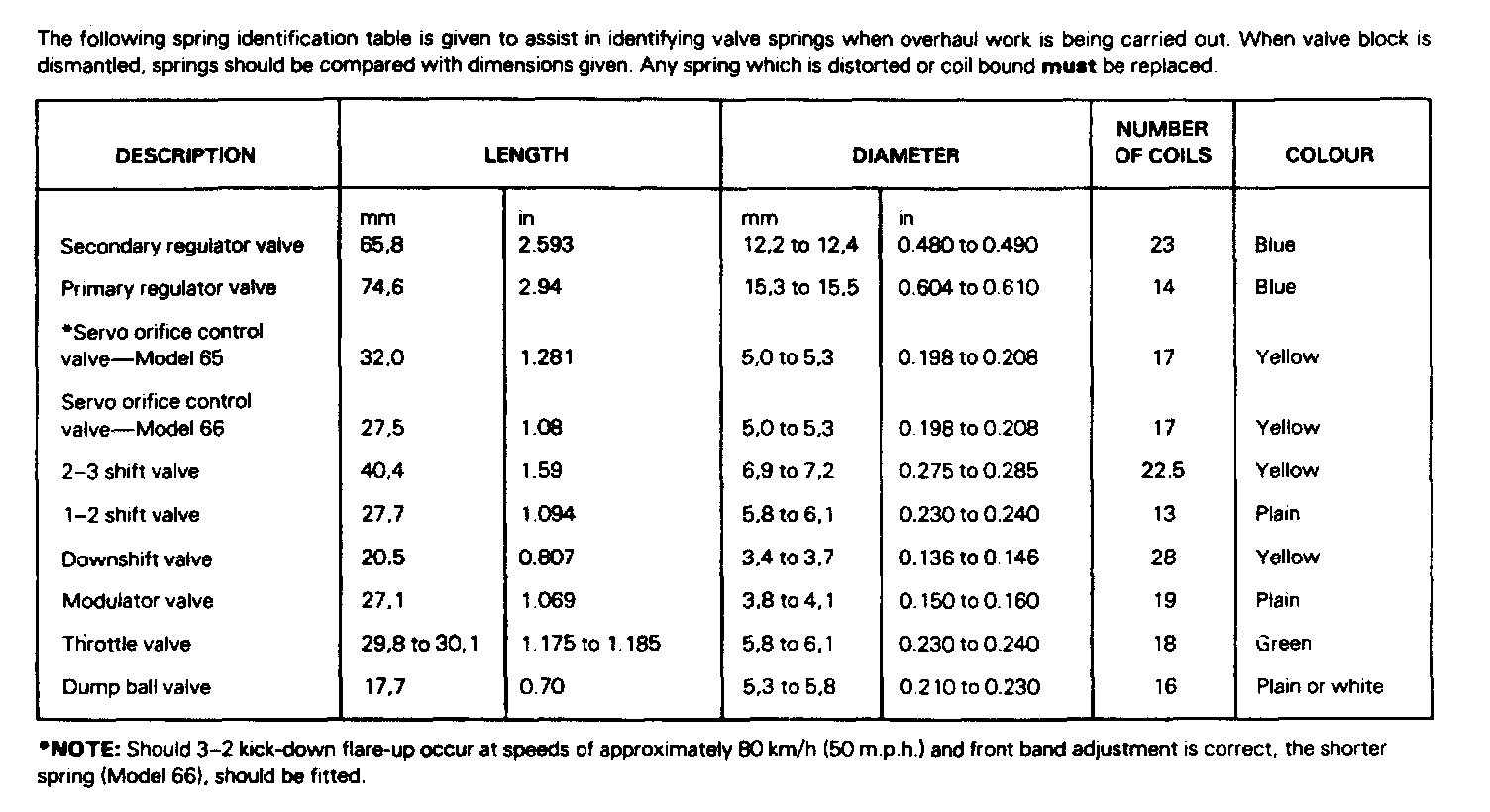

Valve Spring Identification:

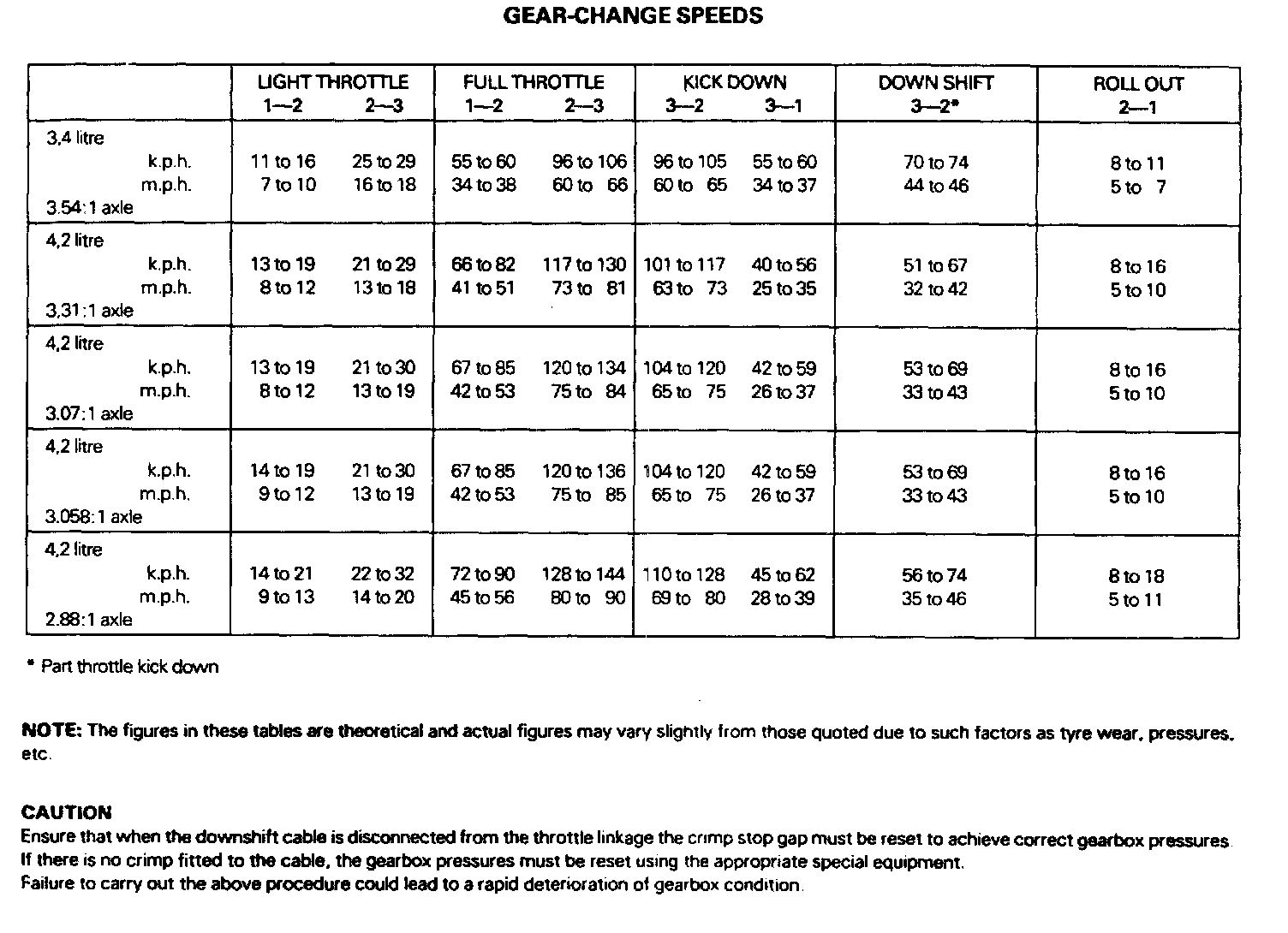

Gear Change Speed Specifications:





General Specifications:
