Pick-Up Coil Resistance Check

1. Disconnect pick-up coil connector from amplifier module. See Fig 1. Be sure ignition is "OFF". Set ohmmeter in x100 scale. Insert ohmmeter leads into 2 pick-up coil harness terminals.
2. Resistance reading should be 2000-5000 ohms. If not, replace pick-up coil and harness assembly.

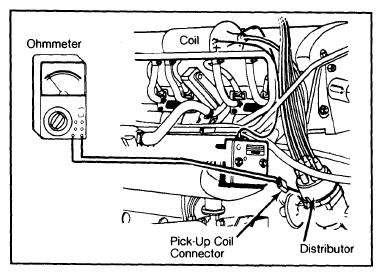

Fig 1: Checking Pick-Up Coil Resistance

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use ohmmeter with ignition "OFF".
