Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

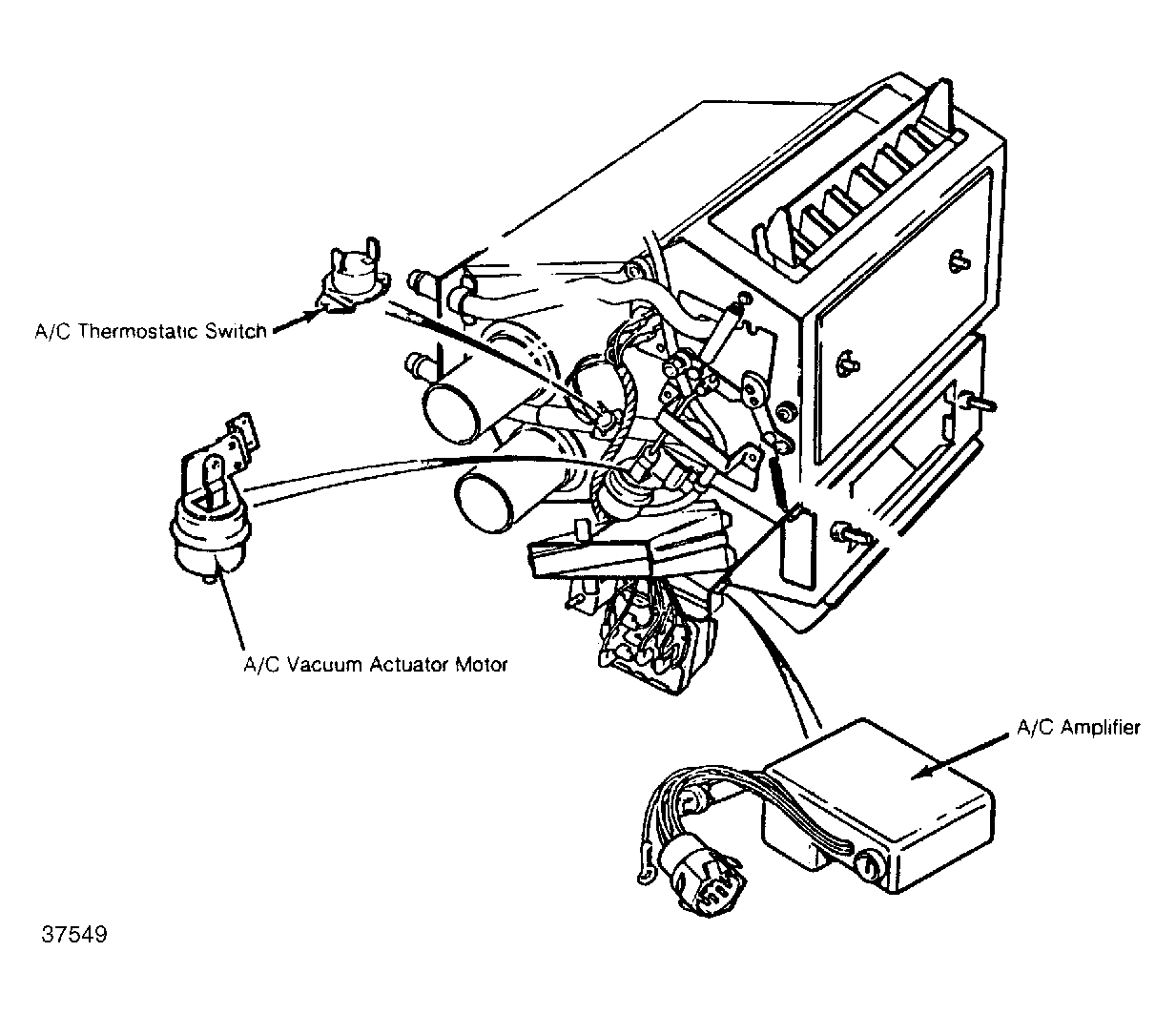

| A/C Amplifier | On lower right side of A/C assembly. See Figure . |
| A/C-Heater Blower Motor Resistor | On left side of heater box. |
| Auxiliary Fuse Block | Under right side of instrument panel. See Figure . |
| Ballast Resistor | On center of engine near coil. |
| Cold Start Injectors | Near fuel pressure regulators. See Figure . |
| Headlight Fuse Block | On left inner fender panel. See Figure . |
| Main Fuse Block | Under left side of instrument panel. See Figure . |

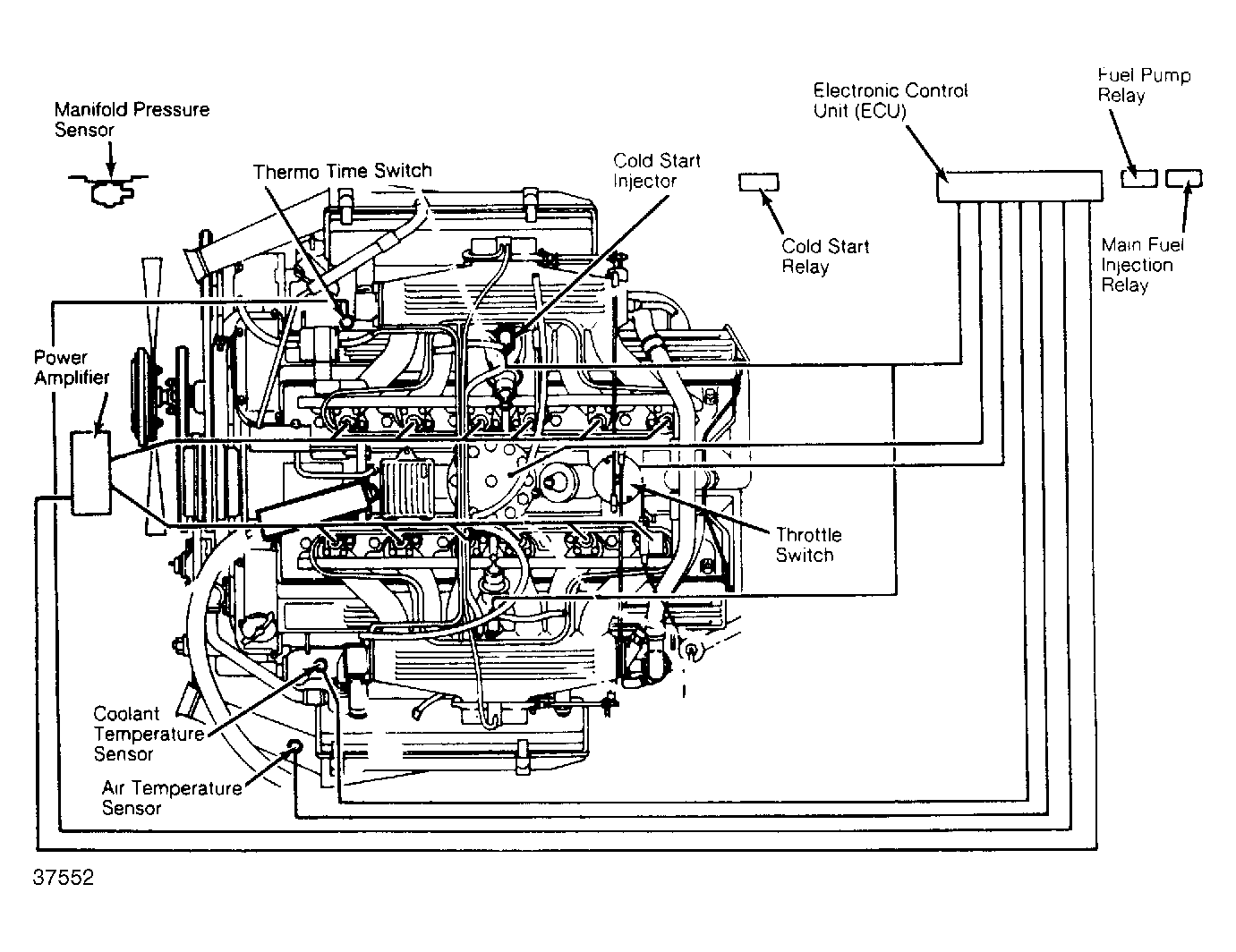

| Power Amplifier | On upper radiator support. See Figure & Figure . |
| Power Resistor | At right front corner of engine compartment. |
